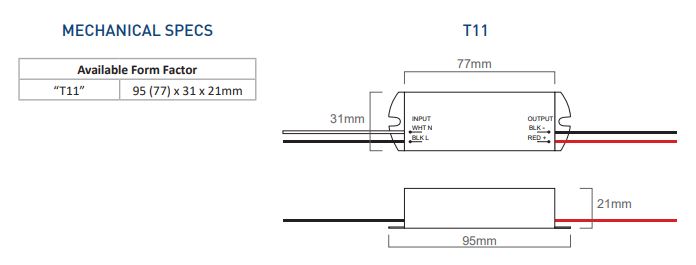

Dimensions
LTF Drivers Dimmer Compatibility List
TRIAC Dimmer Wiring Diagram
ELV Dimmer Wiring Diagram

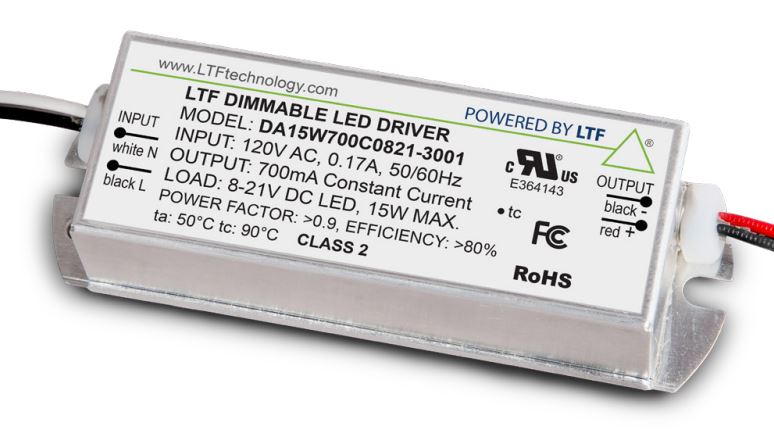

15W DS Series Constant Current Dimmable LED Driver by LTF

$39.60


This LTF low voltage, constant current dimmable LED driver comes in a small form factor and aluminum casing, with flicker-free dimming and excellent dimming range.

  • Isolated output power per NEC and UL safety requirements
  • UL and ETL recognized/ Listed, UL 8750
  • Auto-reset; short circuit, overload and thermal protection
  • Dimmable with ELV & Triac Dimmers
  • Aluminum casing for optimal heat dissipation
  • Low profile, small form factor

SKU :
DA15W700C0821-3001
Brand :
LTF
Max Wattage :
15W
Input Voltage Range :
120V
Output Voltage :
8-21V
Current Range :
700mA
Default Current :
700mA
Dimmable :
ELV, TRIAC
Dimming Range :
0-100%
Dimensions (L x W x H) :
3.74" x 1.22" x 0.83"
