Home Constant Current 30W DS Series Constant Current Dimmable LED Driver by LTF
Specification Sheet

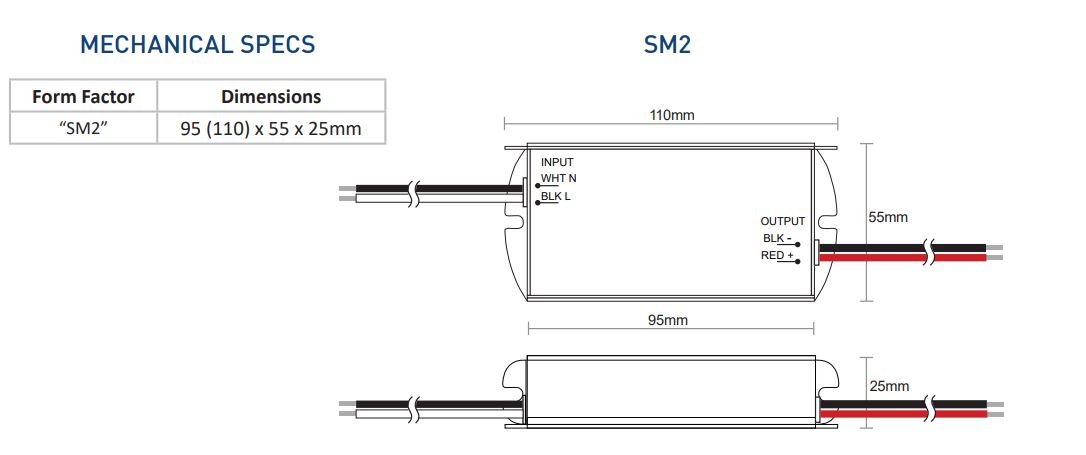

Dimensions
LTF Drivers Dimmer Compatibility List
TRIAC Dimmer Wiring Diagram
ELV Dimmer Wiring Diagram

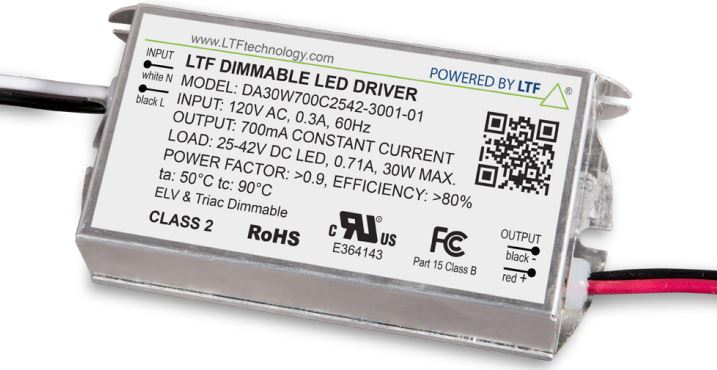

30W DS Series Constant Current Dimmable LED Driver by LTF

$51.74


This LTF low voltage, constant current dimmable LED driver comes in a small form factor and aluminum casing, junction box mountable with flicker-free dimming and excellent dimming range.

  • High-performance LED driver
  • UL and ETL recognized/ Listed, UL 8750, 1310
  • Auto-reset; short circuit, overload and thermal protection
  • Fully dimmable with ELV & Triac Dimmers
  • Aluminum casing for optimal heat dissipation
  • Low profile, small form factor, junction box mountable
  • Class 2 power supply and other than Class 2 options
  • Efficient, high power factor, low THD, FCC-compliant

SKU :
DA30W700C2542-3001
Brand :
LTF
Max Wattage :
30W
Input Voltage Range :
120V
Output Voltage :
25-42V
Current Range :
700mA
Default Current :
700mA
Dimmable :
ELV, TRIAC
Dimming Range :
0-100%
Dimensions (L x W x H) :
4.33" x 2.16" x 0.98"
