Delta H Pendant Mount 16" Selectable High Bay by Alphabet

Home High and Low Bays Delta H 16" CCT Selectable High Bay by Alphabet

Additional Information

Specification Sheet
Installation Instructions

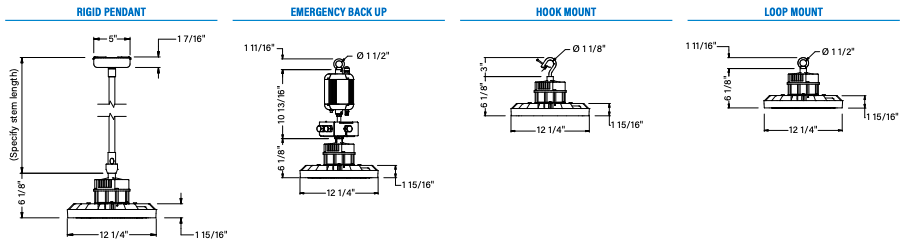

Dimensions
Warranty Information

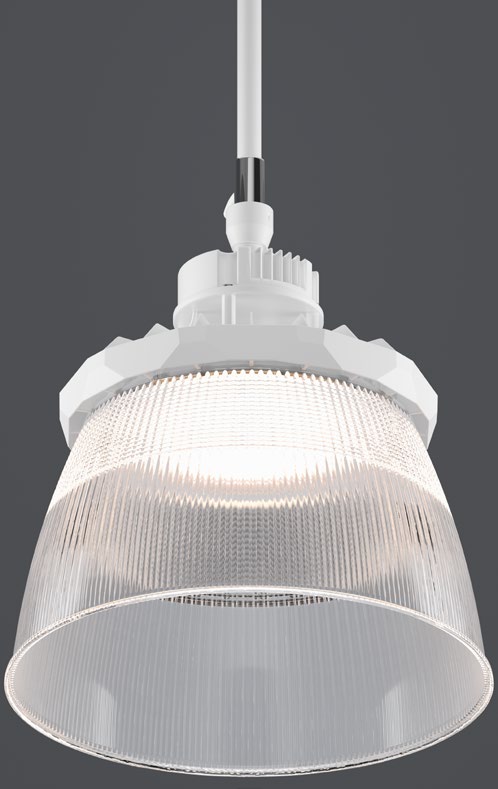

Delta H 16" CCT Selectable High Bay by Alphabet

DLC Premium Certification
Wide range of mounting options
NS (no shade) AC (acrylic shade) CDL (conical drop lens)
IK08 rated
1-10V (10%-100%) dimming
CCT Selectable: 4000K/4500K/5000K or 3000K/3500K/4000K
Wattage Selectable: 120W, 150W and 180W

Color Temperature :

Finish :

Shade :

Lens :

Mounting Options :

Emergency Battery Back-Up :

Accessories :

Brand :

Alphabet

Model Number :

DELTA-H-SW-3PW, DELTA-H-SW-3PW-3CCT

Type :

UFO, Low Profile

Lumens :

17,500 - 24,300 lm

Watts :

120W - 180W

Voltage :

120–277V

Color Temperature :

3000K, 3500K, 4000K, 4500K, 5000K

CRI :

80+

Optics :

Wide

Mounting :

Pendant

Environment :

Damp Location, Dry Location, IP65, Wet Location

Temperature :

Standard

Dimmable :

0-10V

Ratings :

1598, Damp Location, Wet Location

Safety Certification :

CSA, DLC 5.0 Premium, UL

Dimensions (L x W x H) :

6.13" x 12.25" x 1.94"

Weight :

12.5
