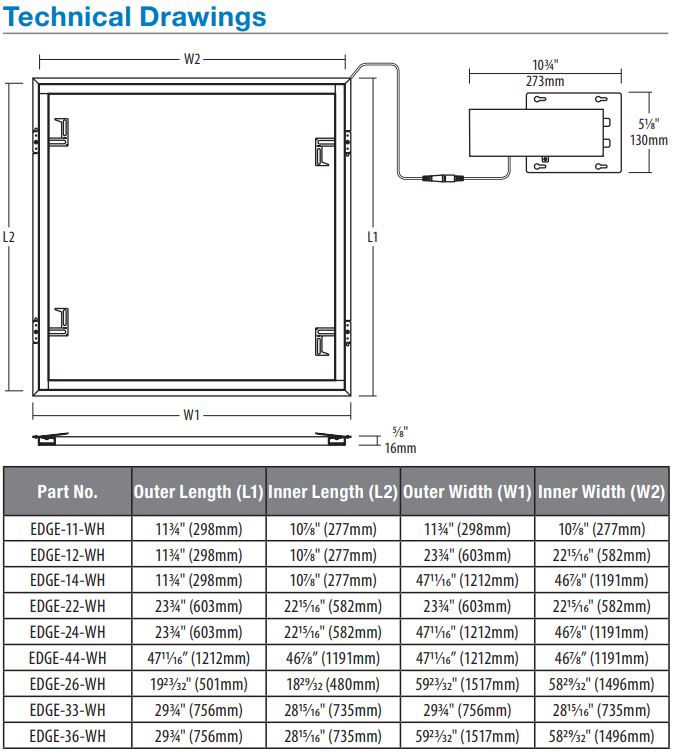

Dimensions
Compatible Dimmers Chart

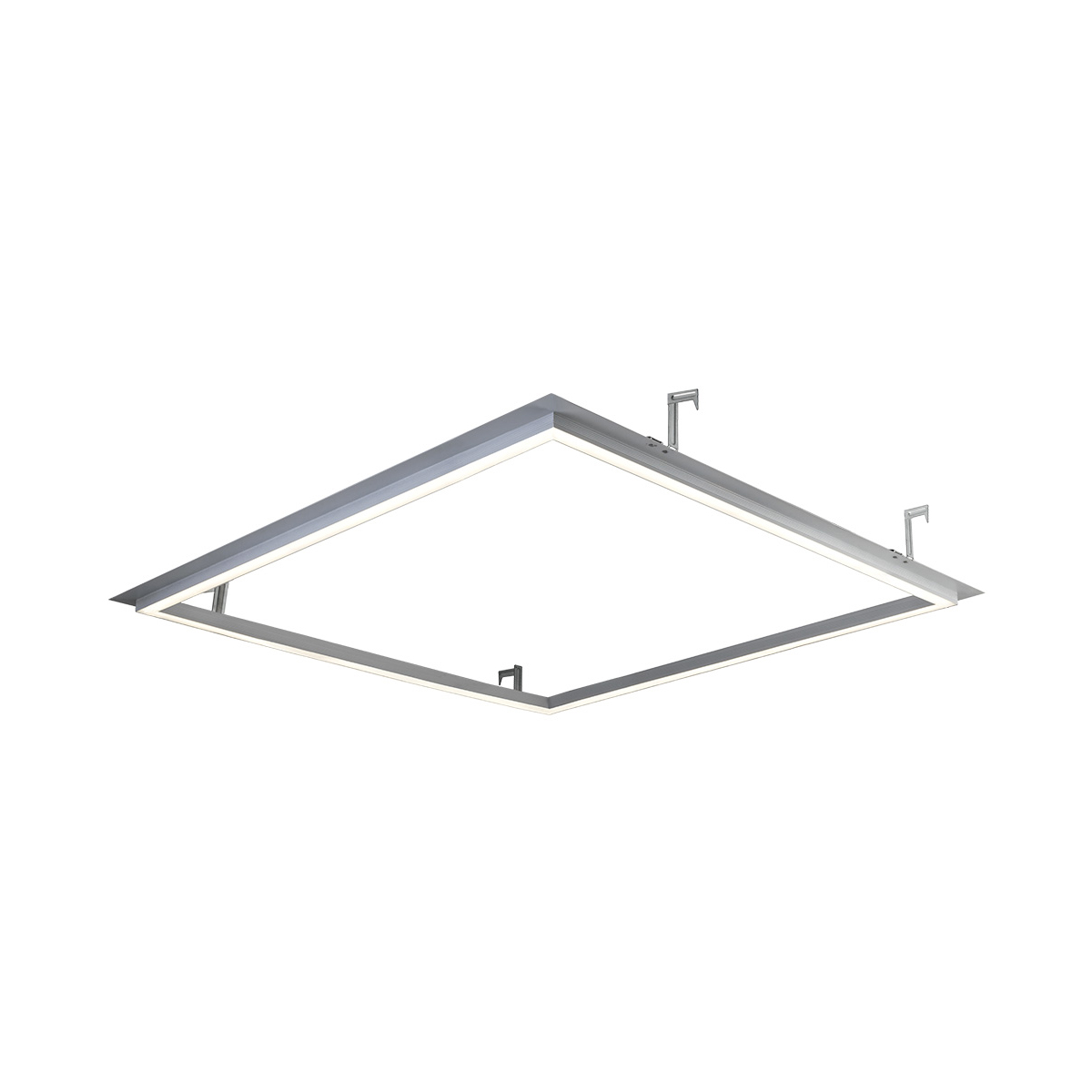

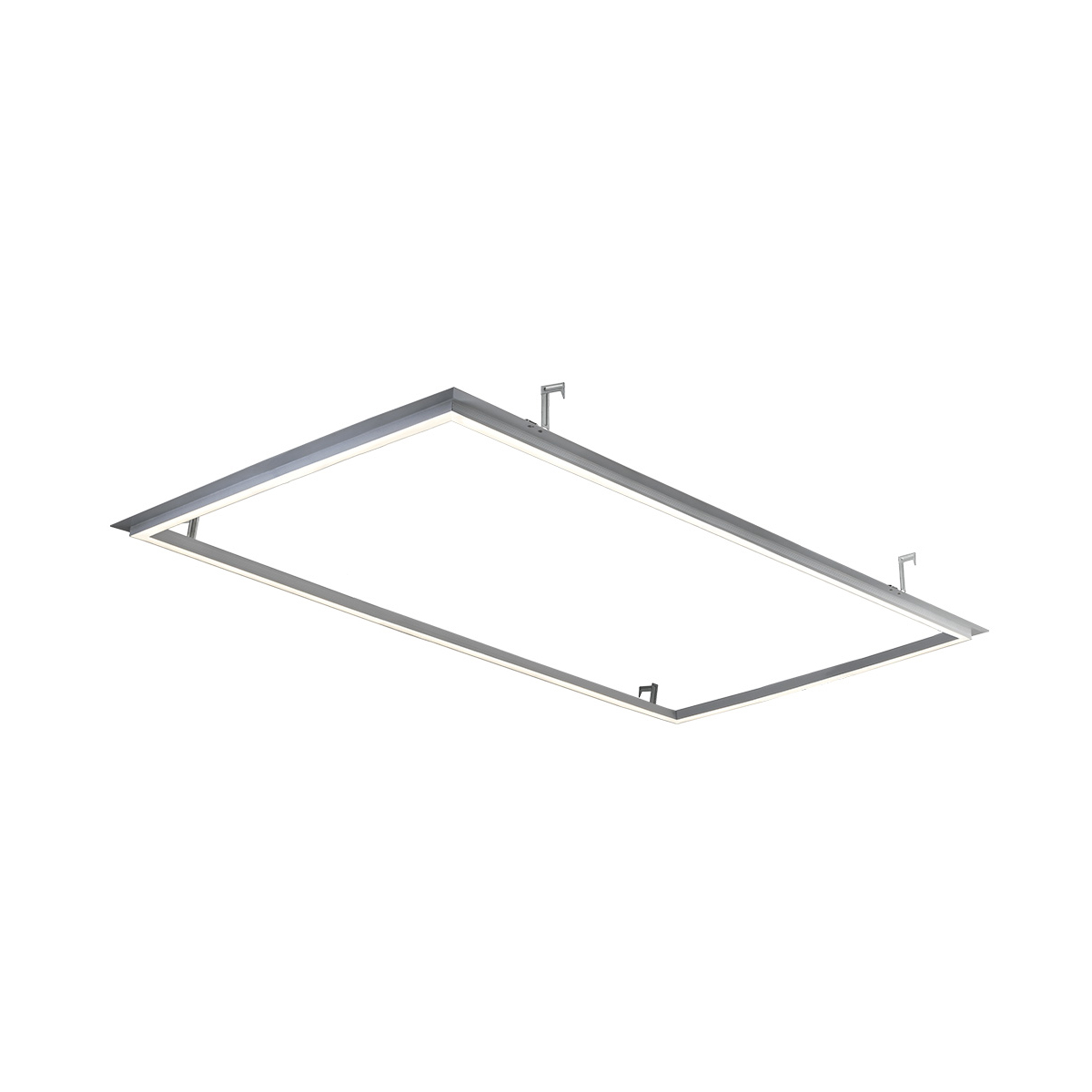

EDGE Selectable Wattage and CCT Edge Lit Panel Lights by Liteline

From : $182.95

The Edge has changed the shape of standard panel lighting and is not all aesthetics, with high-lumen output and more flexibility without the footprint. Available in 1x1, 1x2, 1x4, 2x2, and 2x4 size options, Liteline’s EDGE fits perfectly into a T-bar ceiling with the acoustic tile on top, no trimming needed.

  • LED panel light made from a lightweight aluminum frame
  • LED modules maintain uniform intensity up to 124 lumens per watt, with a typical CRI of 80+
  • 100-10% dimming capability, compatible with industry-standard dimmers
  • Provides 110° beam spread
  • IC rated, suitable for damp locations
  • 7-year warranty




Size :
Grid Type :
Driver Options :
Brand :
Liteline
Model Number :
EDGE-11-WH, EDGE-11-W9, EDGE-12-WH, EDGE-12-W9, EDGE-14-WH, EDGE-14-W9, EDGE-22-WH, EDGE-22-W9, EDGE-24-WH, EDGE-24-W9
Type :
Frame
Size :
1x1, 1x2, 1x4, 2x2, 2x4, 4x4
Lumens :
2,100-5,700 lm
Watts :
20-50W
Color Temperature :
3000K, 3500K, 4000K
CRI :
80+
Voltage :
120-347V
Driver :
0-10V
Dimmable :
100-10%
Environment :
Damp Location, IC Rated, Indoor
Ratings :
IC
Safety Certification :
ETL Listed
