Home Constant Power ELP10-2060-UNV-NC 10W Constant Power LED Emergency Driver by Hatch Lighting
Specification Sheet

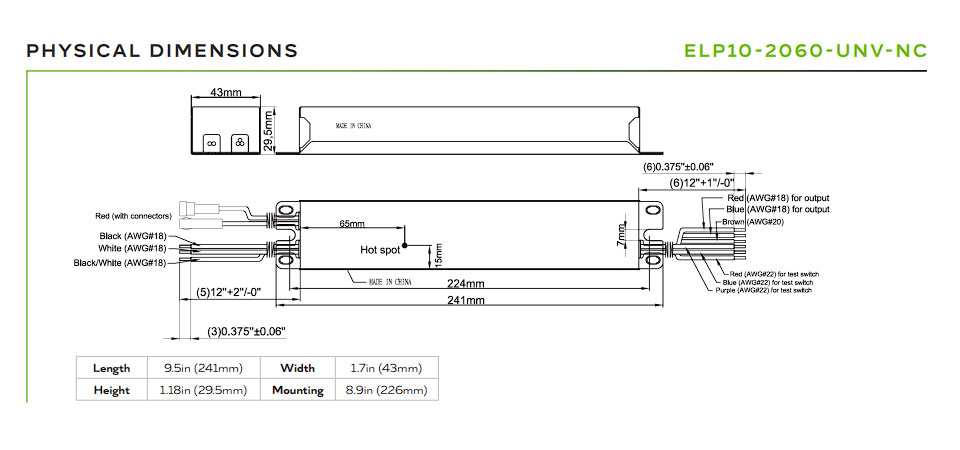

Dimensions

ELP10-2060-UNV-NC 10W Constant Power LED Emergency Driver by Hatch Lighting

$132.86

The high-efficiency performance of the Hatch ELP10-2060-UNV-NC LED Emergency Driver meets California Energy Commission (CEC) Title 20 efficiency requirements and is certified in the CA Title 20 Appliance Efficiency Database. Hatch ELP10-2060-UNV-NC allows an LED lighting fixture to be used for normal and emergency operation. In the event of a power failure, the ELP10-2060-UNV-NC switches to emergency mode and operates the existing fixture for a minimum of 90 minutes. All of the LED Emergency Drivers in the Hatch line include a test switch with integrated charge indicator and are UL Listed for field or factory installation.

  • UL 924 LISTED for US and Canada
  • Class 2 Compliant
  • UL Listed for field and factory installation
  • Integral, energy efficient LiFePO4 battery
  • Includes test switch and integrated charge indicator
  • For use with switched or unswitched fixtures
  • 5-Year Warranty
  • Meets requirements for CEC Compliance
  • Suitable for damp locations
  • Includes installation guide and luminaire modification label
  • For use with surface mounts or recessed type IC or non-IC products listed to UL standards.




SKU :
ELP10-2060-UNV-NC
Brand :
Hatch Lighting
Max Wattage :
10W
Input Voltage Range :
120-277V
Output Voltage :
20-60V
Default Current :
179mA
Dimmable :
Not Available
Dimming Range :
NA
Length :
9.49
Width :
1.69
Height :
1.16
Weight :
3.06
