The ILP Endeavour 2.0 Linear High Bay is a versatile and high-performance luminaire designed for various high-ceiling applications. Featuring a sleek aluminum body, multiple lumen packages from 8,000 to 100,000 lumens, and diverse mounting, control, and distribution options, it offers exceptional customization capabilities while delivering superior illumination and energy efficiency.

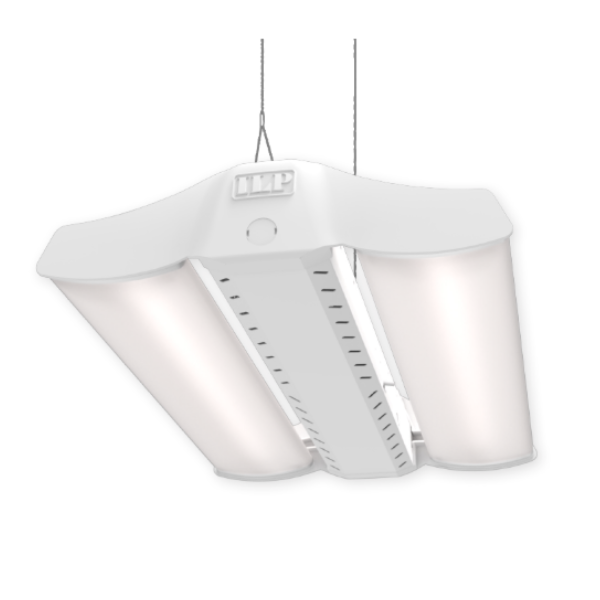

2' Endeavour 2.0 Linear High Bay by ILP

From : $188.33


EDV 2.0 is the linear high bay of the future. Sturdy - but sleek, it features an aluminum body with curved end caps in white, black or custom finishes to suit even the most unique project aesthetics. It is highly selectable - with impact resistant and IP5X rated lens options, controls, CCT and lumen packages, and more. Its diverse mounting options allow for multitudes of design opportunities in a variety of applications with high ceilings at varied heights

  • Toolless Hinged Driver Access
  • Wide & Narrow Distributions
  • Impact Resistant and IP5X Rated Lens Options:
    - Frosted Acrylic (FRL)
    - Frosted Polycarbonate (PFL) IK10 Impact Rated
  • V-Clips for dual point chain or cable hanging (standard)
  • Advanced and Basic Controls Options
  • 131°F Standard Ambient Temperature Range
  • 149°F Max High Ambient Temperature Option
  • 3000K–5000K CCT
  • Uplight Options to optimize full room illumination
  • 17 Size/Lumen packages:
    - 2ft: 8,000 – 36,000 lms
    - 4ft: 12,000 – 100,000 lms
  • >80 Color Rendering Index (CRI)
  • Calculated L70 >100,000 hrs
  • 0-10V Dimmable Driver (100%–10%)
  • ETL Listed for Damp Location
  • DesignLights Consortium® Premium Qualified Luminaire




Lumen Output :
Color Temperature :
Lens :
Distribution :
Uplight :
Finish :
Temperature :
Step Down Transformer :
Emergency Battery Backup :
Wire Cage :
Controls :
Cord :
Surge Protector :
Mounting :
Brand :
ILP
Model Number :
EDV2
Type :
Linear
Lumens :
8,000-36,000 lm
Watts :
53-247W
Voltage :
120-277V
Color Temperature :
3000K, 3500K, 4000K, 5000K
CRI :
80+
Optics :
Direct/Indirect, Narrow, Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Damp Location
Temperature :
High Ambient Temp
Dimmable :
0-10V
Ratings :
Damp, DLC Premium, Title 24
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
Small: 16.21" x 25.51" x 4"
Large: 22.2" x 25.51" x 4"
Weight :
9.99
