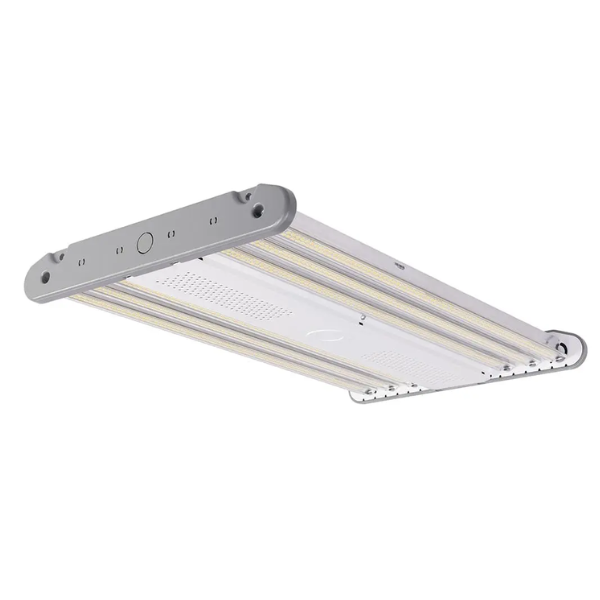

Home High and Low Bays ES40V-A1-54K-4M-50-80-CL-HV-CRM-SRG-10V High Voltage Value Line, 5000K, 54796 lm by LinmoreLED

Specification Sheet
Installation Instructions


ES40V-A1-54K-4M-50-80-CL-HV-CRM-SRG-10V High Voltage Value Line, 5000K, 54796 lm by LinmoreLED

$961.00

Essentials Series 4.0 provides the highest quality, reliability, and performance with extraordinary lumen maintenance and efficacy, delivering superior ROI for your application. Designed with best-in-class thermal management to perform at ambient temperatures up to 65°C.

  • 347-480V Input Voltage
  • Value Line
  • -40°C up to 65°C (-40°F up to 149°F) Ambient Range Temp
  • 5000K CCT
  • 4M Frame Linear High Bay
  • 54,796 Lumens
  • Dry/Damp Location Rated
  • Cable-ready (standard) for suspension mounting or 3/4” stem mount
  • >80 Color Rendering Index (CRI)
  • Clear Lens, Wide Distribution
  • 0-10V Dimmable Driver (100%–10%)
  • Fixture installed 10kA Surge Protector fails to ON
  • 10 Year Warranty

Brand :
LinmoreLED
Model Number :
ES40V-A1-54K-4M-50-80-CL-HV-CRM-SRG-10V
Type :
Linear
Lumens :
54,796 lm
Watts :
356W
Voltage :
347-480V
Color Temperature :
5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Damp Location, Dry Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp, DLC Premium, Dry
Safety Certification :
DLC Premium, ETL Listed, FCC
Dimensions (L x W x H) :
43.72" x 11.2" x 2.1"
Weight :
18
