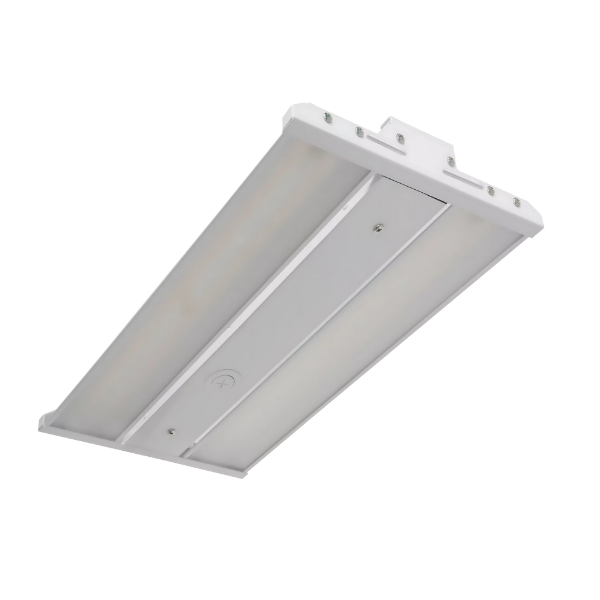

FCY Value Linear LED High Bay, Dual Select 8,000-15,000 Lumens, 40/50K CCT, 120-277V, White Finish by Day-Brite

$109.29


Day-Brite / CFI FCY value high bay is an economical combination of solid performance and quality construction. This product is ideally suited for use in mid- to high ceiling applications including industrial, warehouses, gymnasiums, and big box retail.

  • Die-formed sheet metal housing and end plates
  • Corrosion-resistant gloss white paint after fabrication finish
  • V-hooks and 40" chains supplied (set of 2) for installation
  • 120-277V Input voltage
  • Lumen maintenance up to 70% (L70) at 100,000 hours
  • Frosted acrylic diffuser provides wide light distribution and superior glare control
  • Field CCT selectable for 4000K or 5000K. Factory default setting is 4000K
  • Field selectable lumens 8,000/12,000/15,000 lm. Factory default setting is the highest luminous output
  • cULus listed for use in damp locations
  • 5-year limited warranty

Brand :
Day-Brite
Model Number :
FCY0815L8CST-UNV-DIM
Type :
Linear
Lumens :
Selectable 8,000/12,000/15,000 lm
Watts :
55-106W
Voltage :
120-277V
Color Temperature :
Selectable 4000/5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling
Environment :
Damp Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp, DLC Premium
Safety Certification :
DLC Premium, RoHS Compliant, UL Listed
Dimensions (L x W x H) :
15.63" x 1.88" x 9.88"
Weight :
9.99
