Home High and Low Bays HBC5 200/220/240W LED UFO High Bay, 3CCT, Black Finish by Nicor

Specification Sheet
Installation Instructions

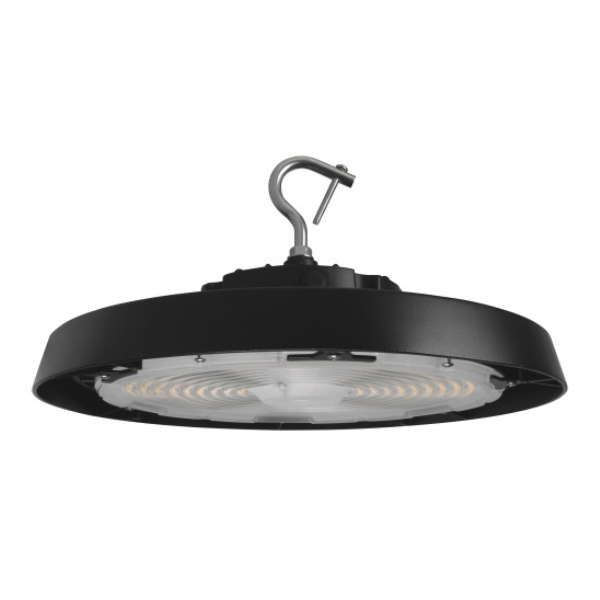

HBC5 200/220/240W LED UFO High Bay, 3CCT, Black Finish by Nicor

$209.92

The NICOR HBC5 Series Circular LED Low-Bay/High-Bay offers a versatile, high-efficiency commercial lighting solution featuring field-selectable wattage and color temperature settings in a sleek, compact design. Constructed with a die-cast aluminum housing and an impact-resistant polycarbonate lens, it delivers over 130 lumens per watt of clear, uniform light dispersion. Equipped with 0-10V dimming, dual-voltage compatibility (120-277V), and a 12V accessory wire for Bluetooth control via the NICOR NLC app, it also supports optional anti-glare reflectors and an emergency backup module. Ideal for warehouses, retail spaces, and gymnasiums, this durable fixture is designed with multiple mounting points for flexible installation.

  • 3 Selectable CCT Options: 3500K, 4000K, 5000K
  • 3 Selectable Wattage Options: 200W, 220W, 240W
  • Black Powder Coat Finish
  • Produces 27,183-34,968 Lumens (varies by settings)
  • Full Range 0-10V Dimming
  • Wet-Location, IP65 Rated
  • DLC Premium Listed
  • 6kV/3kA Surge Protection
  • 54,000 Hour Lifespan
  • 5-Year Limited Warranty

Brand :
Nicor
Model Number :
HBC5240SUS8BK
Type :
UFO
Lumens :
Selectable 27,183-34,968 lm
Watts :
Selectable 200/220/240W
Voltage :
120-277V
Color Temperature :
Selectable 3500/4000/5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant, Yoke
Environment :
Wet Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
DLC Premium, IP65, Wet
Safety Certification :
FCC, RoHS Compliant, UL Listed
