Home High and Low Bays HCY Round LED High Bay, Dual Select 24,000-37,000 Lumens, 35/40/50K CCT, 120-347V, White Finish by Day Brite

Specification Sheet
Installation Instructions

Clear Polycarbonate Reflector
Clear Polycarbonate Lens Cover
Wire Guard
Surface Mount Bracket
Microwave Sensor

HCY Round LED High Bay, Dual Select 24,000-37,000 Lumens, 35/40/50K CCT, 120-347V, White Finish by Day Brite

$139.98

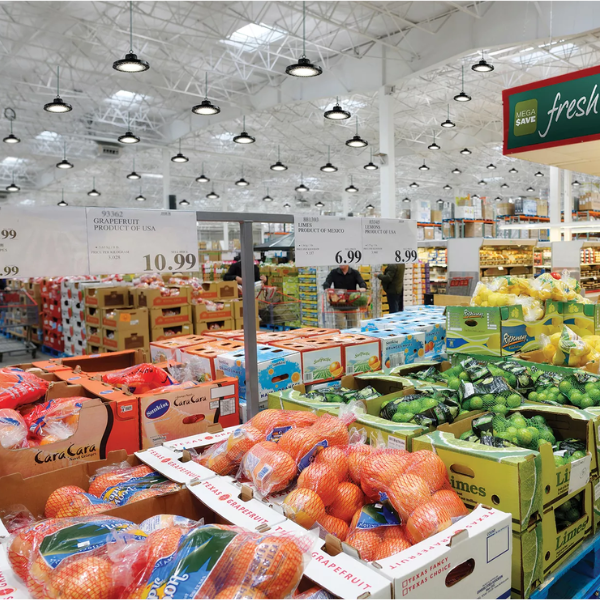

The Day-Brite / CFI HCY sealed high bay is an ideal choice where functional high bay lighting is needed with an aesthetic appeal. The round form factor lends itself to retail and institutional applications.

  • Die-cast frame and driver containment housing
  • Corrosion-resistant white finish
  • 150-240W, Dual select 24,000-37,000 lumens
  • 120-347V Input voltage
  • Clear polycarbonate lens protects LEDs
  • Heavy-duty hook provided for connection to customer-supplied suspension
  • Driver surge protection is 4kV L-N and 6kV LN-GND
  • Lumen maintenance up to 70% (L70) at 50,000 hrs
  • 6' cord provided for power connection and dimming connection
  • cULus listed for use in wet locations for -30°C to 50°C ambient
  • 5-year limited warranty

Brand :
Day-Brite
Model Number :
HCY2437L8CST-UN3-DIM-WH
Type :
UFO
Lumens :
24,000-37,000 lm
Watts :
150-240W
Voltage :
120-347V
Color Temperature :
3500/4000/5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Wet Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
DLC Premium, IP65, NEMA 4X, Wet
Safety Certification :
DLC Premium, NSF, RoHS Compliant, UL Listed
Dimensions (L x W x H) :
13.38" x 13.38" x 8.13
Weight :
9.99
