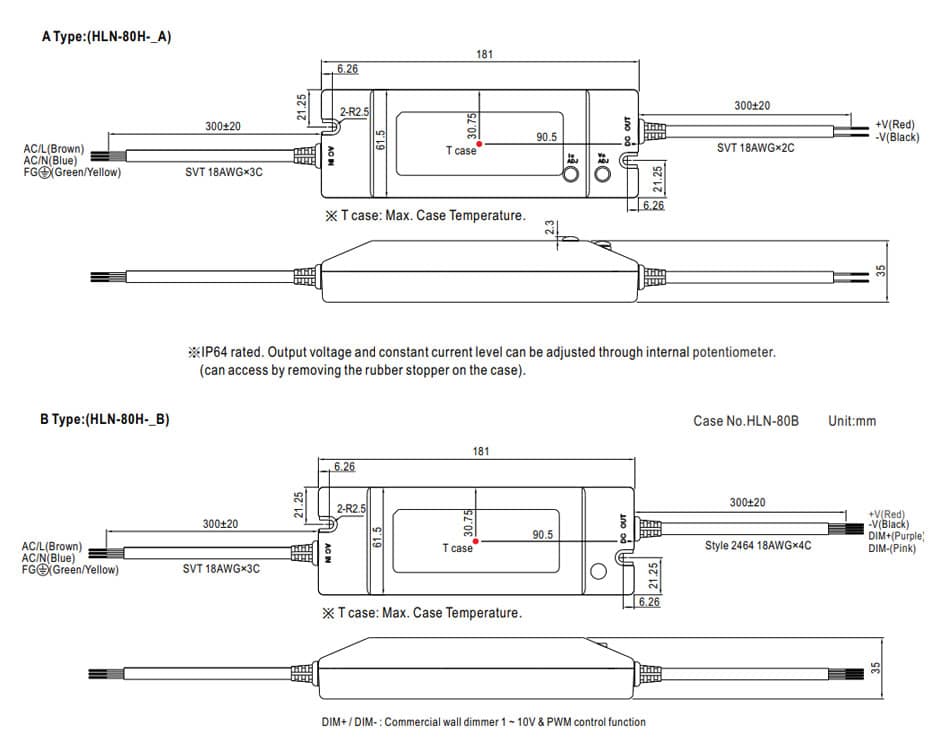

Diagram

HLN-80H-12B Constant Power Driver by Mean Well

$92.89


  • 80W HLN Series
  • Universal AC input / Full range (up to 305VAC)
  • Constant Voltage + Constant Current mode output
  • Built-in active PFC function
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • OCP point adjustable through output cable or internal potentiometer
  • Fully isolated plastic case with IP64 level
  • Class 2 power unit
  • 3-in-1 dimming function (1-10Vdc or PWM signal or resistance)
  • Suitable for dry / damp locations or outdoor application
  • 3 years warranty

SKU :
HLN-80H-12B
Brand :
Mean Well
Max Wattage :
60W
Input Voltage Range :
90-305V
Output Voltage :
12V
Default Current :
5000mA
Dimmable :
1-10V, PWM, Resistor
Dimming Range :
10-100%
Weight :
1.1
