Home High and Low Bays HML3 220/270/320W High Performance LED High Bay, 4CCT, White Finish by Nicor

Specification Sheet
Installation Instructions

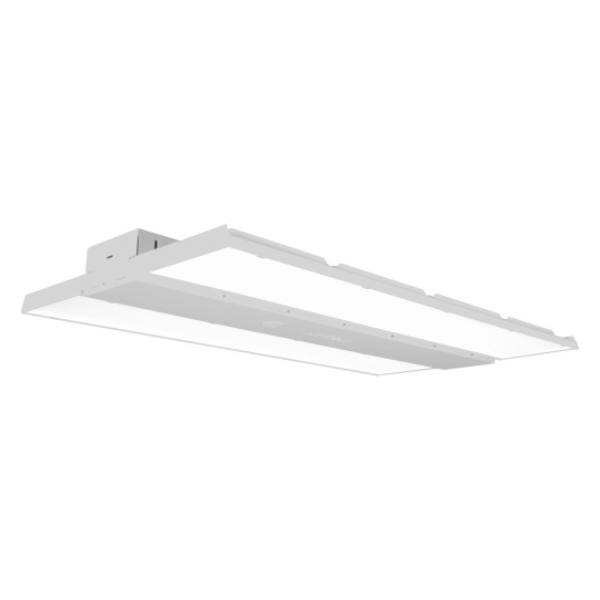

HML3 220/270/320W High Performance LED High Bay, 4CCT, White Finish by Nicor

$283.25

The NICOR HML3 Series High Bay features a patent-pending, compact design that combines peak energy efficiency with extraordinary light output. Built from a single piece of robust cast aluminum with a polyester powder-coat finish, this heavy-duty fixture includes an integrated cooling system and a top-mounted wire-way cover for quick, effortless wiring. It offers maximum versatility with adjustable wattage, field-selectable CCT (3500K/4000K/5000K/5700K), and sensor-ready capabilities. The HML3 is the ideal durable lighting solution for demanding warehouses, gymnasiums, and industrial or commercial spaces.

  • 4 selectable CCT options (3500K, 4000K, 5000K, 5700K)
  • 3 selectable Wattage options (220W, 270W, 320W)
  • Full-range dimming with compatible 0-10V dimmers
  • Single-piece cast aluminum body
  • 120-277VAC
  • Damp-Location Rated, DLC 5.1 Premium, IP20 Rated
  • Integrated 3.5mm sensor socket for field-installable motion sensors available (sold separately)
  • 5-year limited warranty

Brand :
Nicor
Model Number :
HML3320SUSAS8
Type :
Linear
Lumens :
Selectable 31,145-46,734 lm
Watts :
Selectable 220/270/320W
Voltage :
120-277V
Color Temperature :
Selectable 3500/4000/5000/5700K
CRI :
80+
Optics :
Direct/Indirect
Mounting :
Pendant, Suspended
Environment :
Damp Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
DLC Premium, IP65, Wet
Safety Certification :
FCC, RoHS Compliant, UL Listed
