Home Tape HTL20-PXL-RGB1-12VDC-16 16.4' RGB Pixel Tape Light, DMX Controlled by American Lighting
Specification Sheet
Installation Instructions

HTL20-PXL-RGB1-12VDC-16 16.4' RGB Pixel Tape Light, DMX Controlled by American Lighting

$472.00

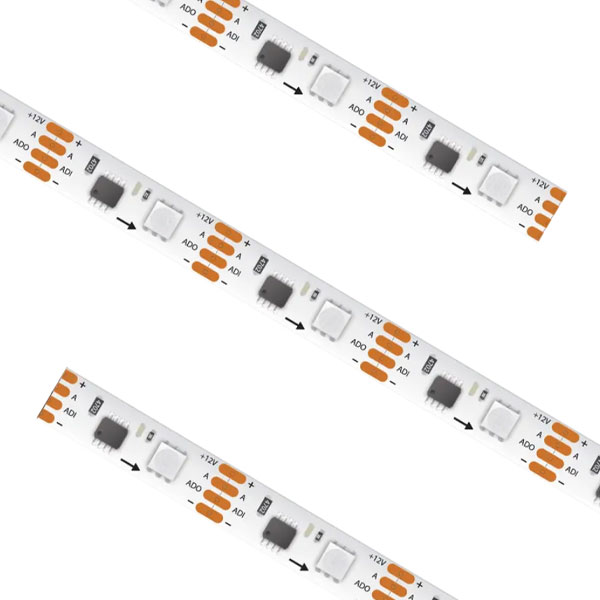

Digital pixel tape light allows for every 1 LED to be addressable, enabling independant control of dynamic color and design. Create endless effects including chasing, popcorning, waves, and strobe with easy to use DMX 512 control protocol.

  • RGB dynamic pixel color mixing capabilities
  • Create millions of color combinations for impactful installations
  • Features SMD 5050 RGB LEDs
  • Cuttable every LED at 1.31” with 16.4ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • IP20 uncoated
  • Control via DMX for color and dimming
  • cULus Listed dry locations
  • 50,000 hours rated life

Brand :
American Lighting
Model Number :
HTL20-PXL-RGB1-12VDC-16
Type :
Pixel
Mounting :
Recessed, Self-Adhesive Tape, Surface
Input Voltage :
12V
Environment :
Interior
CRI :
90+
Color Temperature :
RGB
Lumens per Foot :
35 Lm
Dimmable :
DMX, PWM, Other
Watts per Foot :
2W
Beam Angle :
120°
Maximum Run Distance :
16.4 ft.
Ratings :
Dry, UL Listed
