Home Constant Current KTLD-30-UV-SC1050-56-VDIM-U7/USB 30W Constant Current Programmable LED Driver by Keystone
Specification Sheet

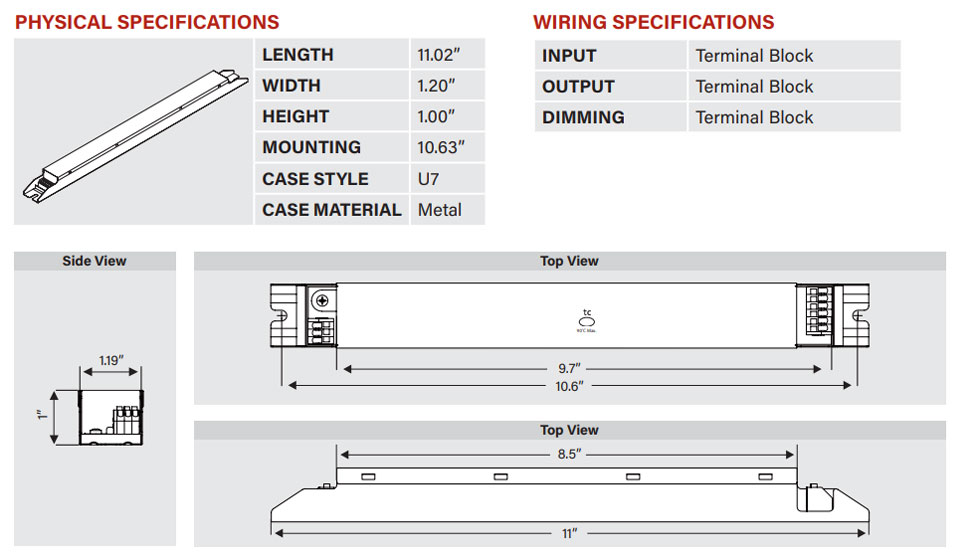

Dimensions

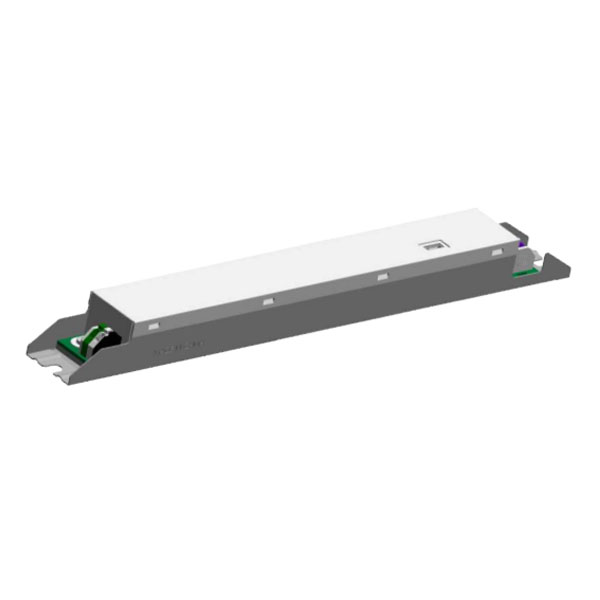

KTLD-30-UV-SC1050-56-VDIM-U7/USB 30W Constant Current Programmable LED Driver by Keystone

$50.75

  • Built in USB-C Port for easy programing
  • Meets FCC Part 15 (Class B) consumer limits
  • Short circuit overload and open load protection
  • Dimmable with 0 –10V dimmer (down to 1% at max. output current)
  • Auxiliary Power: 12Vdc; 200mA Max.
  • THD: <20%
  • –40°C/–40°F to 50°C/122°F operating temperature
  • 90ºC/194ºF maximum case temperature
  • Input Frequency: 50/60 Hz
  • Programmable output current via USB-C cable and an Android device (plus Keystone app) or PC (plus Keystone software)
  • Class A Sound Rating






Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
KTLD-30-UV-SC1050-56-VDIM-U7/USB
Brand :
Keystone
Max Wattage :
30W
Input Voltage Range :
120-277V
Output Voltage :
10-56V
Current Range :
350-1050mA
Default Current :
1050mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
11.02" x 1.2" x 1.00"
