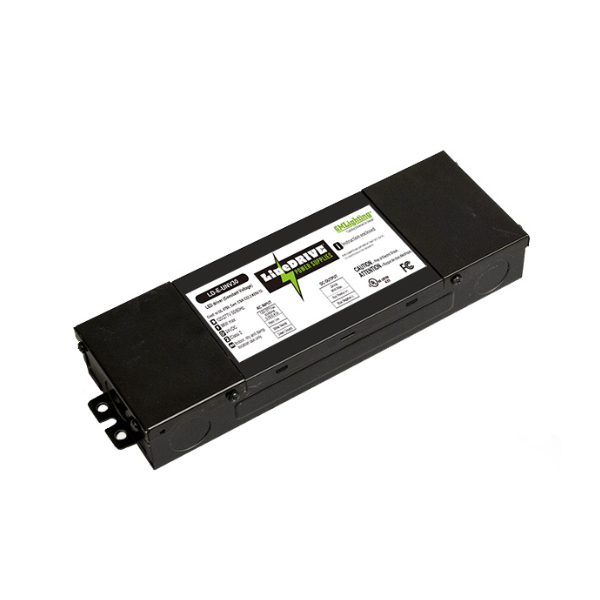

LD-E-UNV30 LineDRIVE Series 30W 12/24V Electronic Non-Dimmable Constant Voltage LED Driver by GM Lighting
$59.85
LineDRIVE Series 12VDC / 24VDC Electronic LED Power Supplies with low voltage outputs are designed to work with standard ELV/Incandescent TRIAC (leading edge) dimmer switch. Encased in a low-profile lightweight aluminum enclosure that includes multiple knock-outs to enable easy installation.
- Output constant voltage
- Overcurrent protection
- Short circuit protection
- 12/24VDC
- 120/277VAC
- Load: min. 10% to max. 100% for optimal performance
- UL listed
- Cert. CSA C22.2 No. 250.2
- Class 2
SKU :
LD-E-UNV30
Brand :
GM Lighting
Max Wattage :
30W
Input Voltage Range :
120/277V
Output Voltage :
12/24V
Current Range :
1250-2500mA
Default Current :
1250mA
Dimmable :
Non-Dimming
Dimming Range :
Not Available
Weight :
2.00
Dimensions (L x W x H) :
6.10" x 3.35" x 1.33"
