Home Constant Voltage LD-ED010-UNV96-24 LineDRIVE Series 96W 24V Electronic 0-10V Dimmable Constant Voltage LED Driver by GM Lighting

Specification Sheet

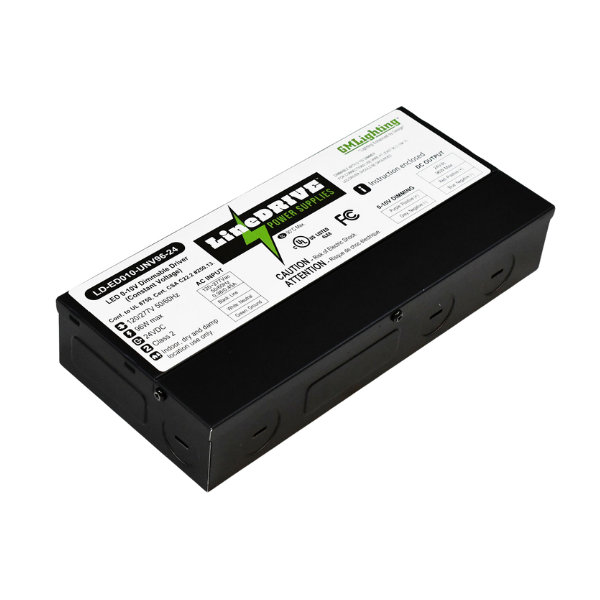

LD-ED010-UNV96-24 LineDRIVE Series 96W 24V Electronic 0-10V Dimmable Constant Voltage LED Driver by GM Lighting

$198.00

GM Lighting’s LineDRIVE 0-10V dimmable 60W and 96W LED driver is a compact and lightweight powerhouse that features high efficiency that VOLT reduces total power consumption.

  • Soft start feature
  • Constant voltage output - 0-10V dimming (switch by others)
  • Overload / short circuit / over-voltage / thermal protection
  • 24VDC
  • 120/277VAC
  • 96W
  • UL certified
  • Cert. CSA C22.2 No. 250.2
  • Class 2

SKU :
LD-ED010-UNV96-24
Brand :
GM Lighting
Max Wattage :
96W
Input Voltage Range :
120/277V
Output Voltage :
24V
Current Range :
4000mA
Default Current :
4000mA
Dimmable :
0-10V
Dimming Range :
10-100%
Weight :
2.50
Dimensions (L x W x H) :
8.25" x 3.75" x 1.56"
