Home Constant Voltage LD-EDM-60-24 LineDRIVE Series 60W 24V Mini Electronic Dimmable Constant Voltage LED Driver by GM Lighting

Specification Sheet

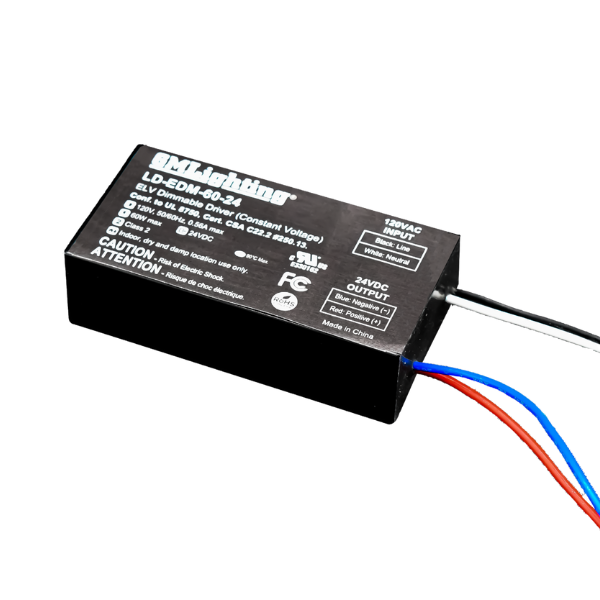

LD-EDM-60-24 LineDRIVE Series 60W 24V Mini Electronic Dimmable Constant Voltage LED Driver by GM Lighting

$64.80

LineDRIVE 12V and 24V MINI Series Electronic LED Power Supplies are Class 2 rated and designed to work with standard ELV dimmer switches. Encased in a low profile light weight aluminum enclosure. Easy to install and hardwire into many lighting applications.

  • Dimmable with ELV dimmers
  • IP20 design for dry and damp location
  • Input: 120VAC, 50/60Hz
  • Output: 60W max, 24VDC
  • Load: min. 10W to max. for optimal performance
  • FCC
  • UL recognized for US and Canada
  • Class 2

SKU :
LD-EDM-60-24
Brand :
GM Lighting
Max Wattage :
60W
Input Voltage Range :
120V
Output Voltage :
24V
Current Range :
2500mA
Default Current :
2500mA
Dimmable :
ELV
Dimming Range :
10-100%
Weight :
0.25
Dimensions (L x W x H) :
2.88" x 1.57" x 0.87"
