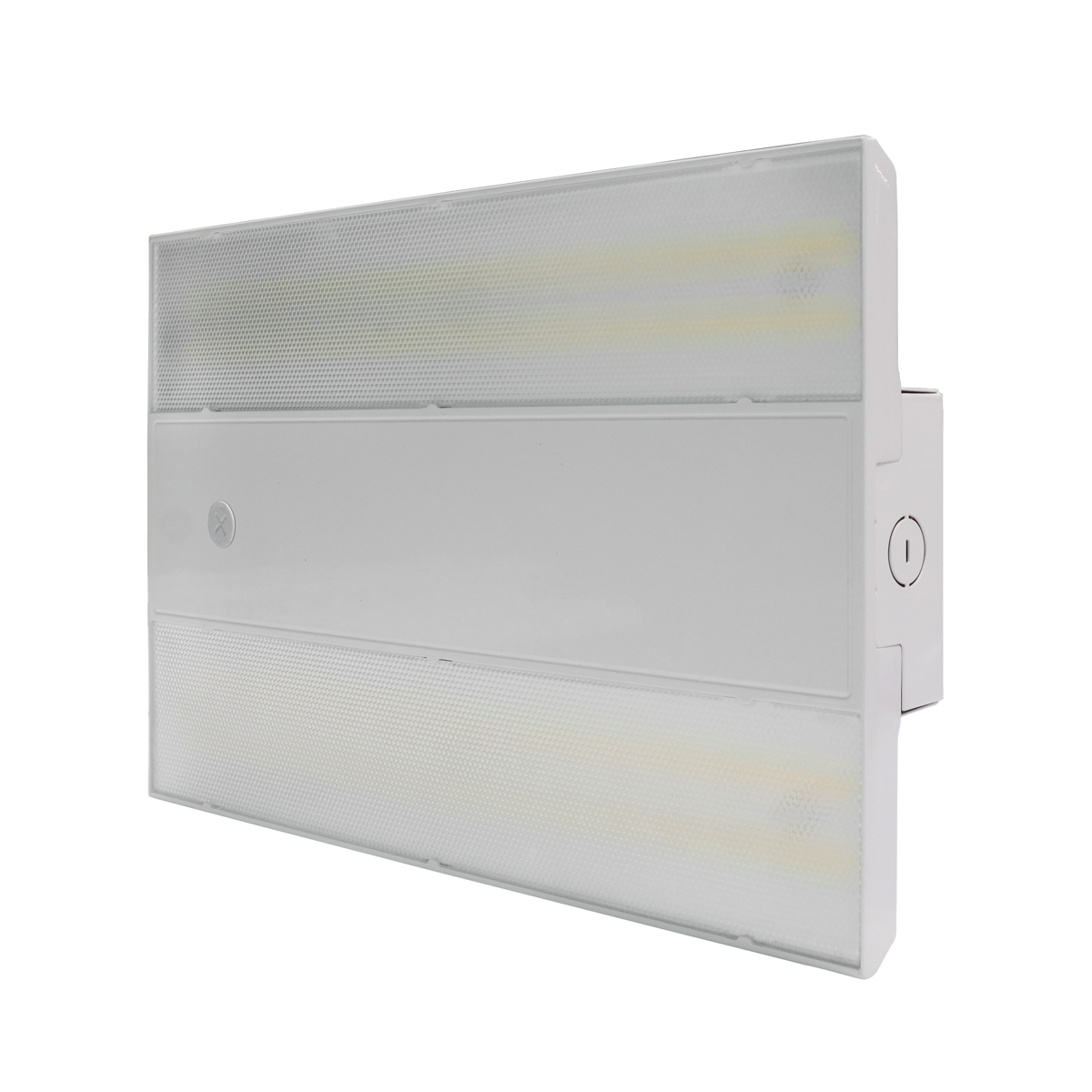

WHB5A Q-Base Color and Power Selectable Linear High Bay by ASD

From : $75.00

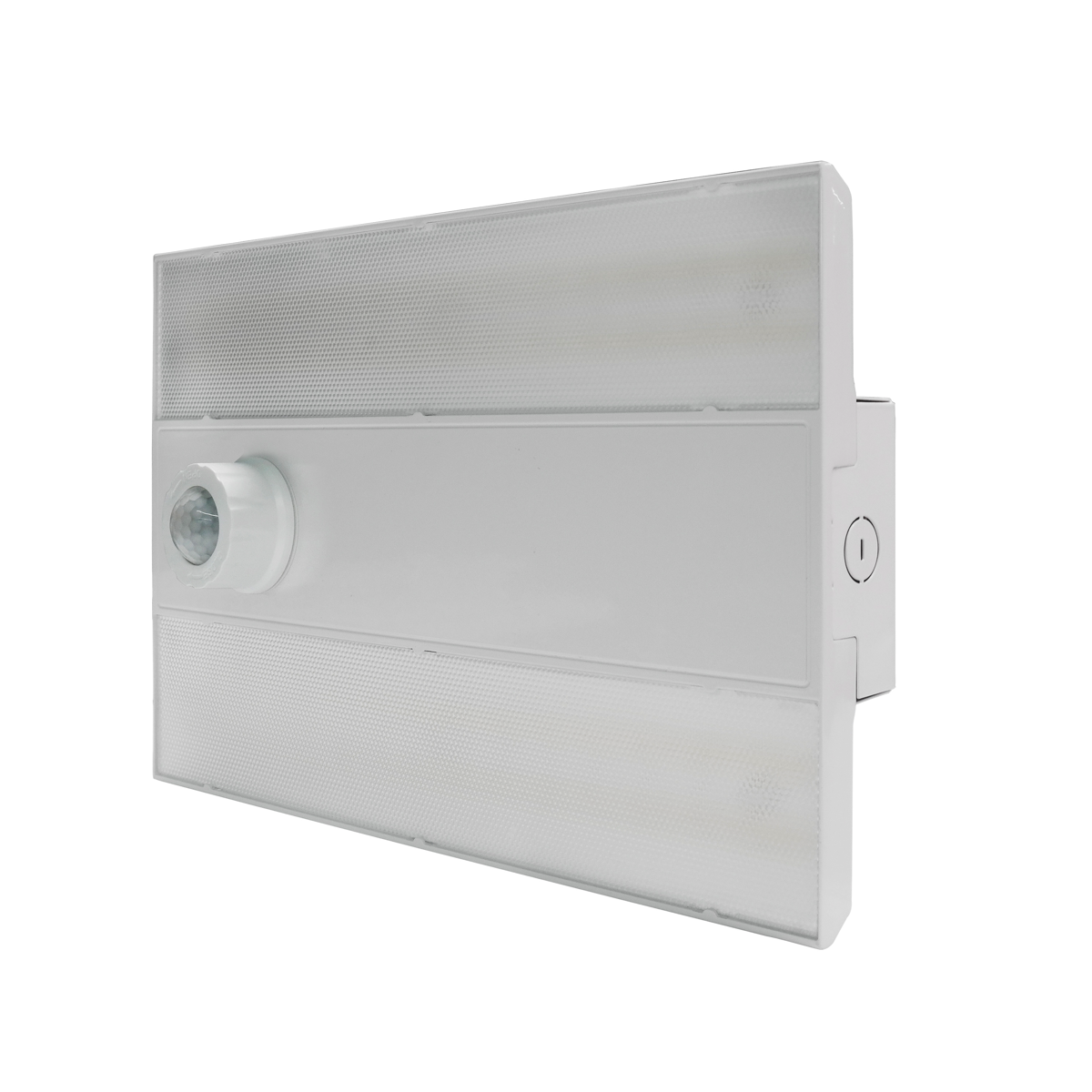

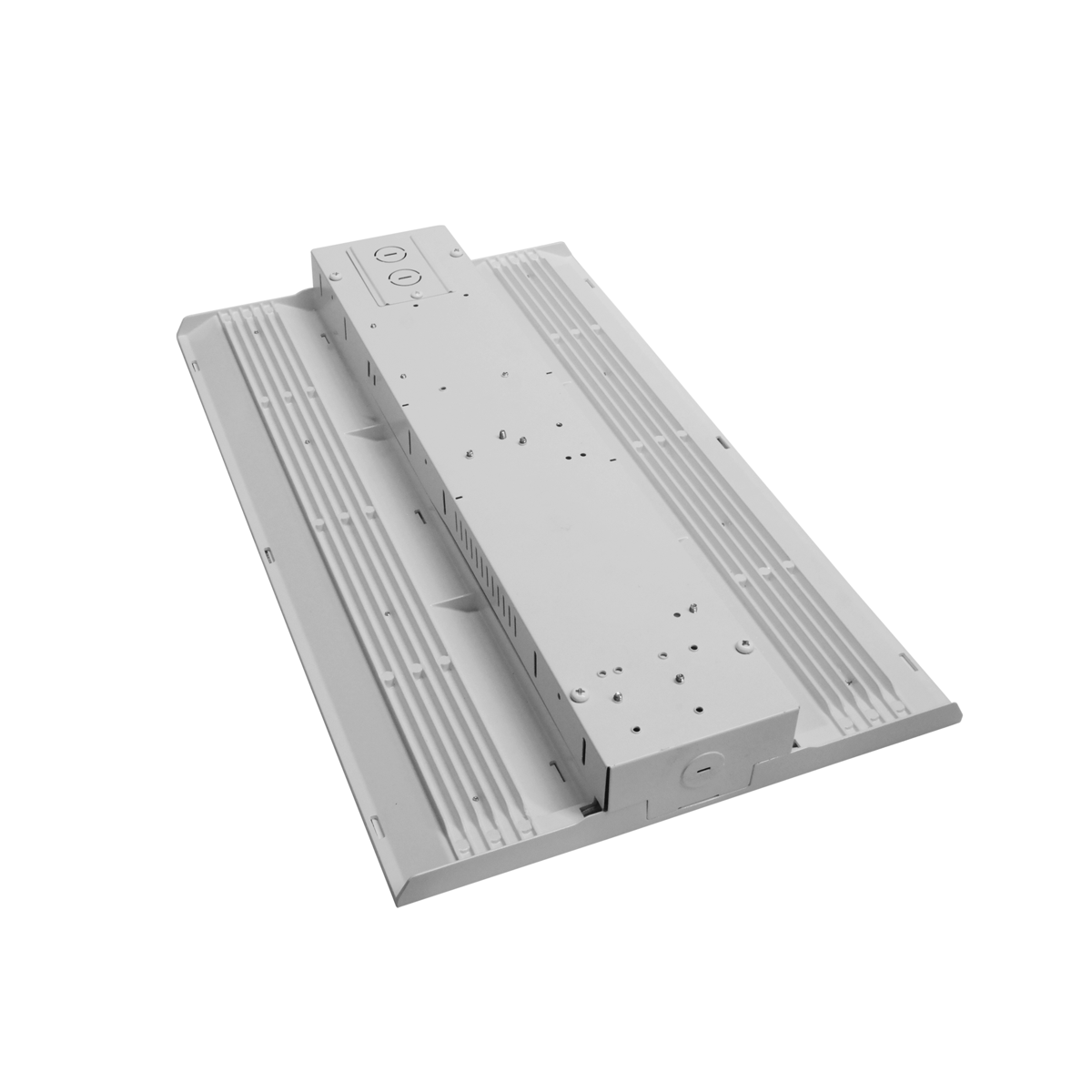

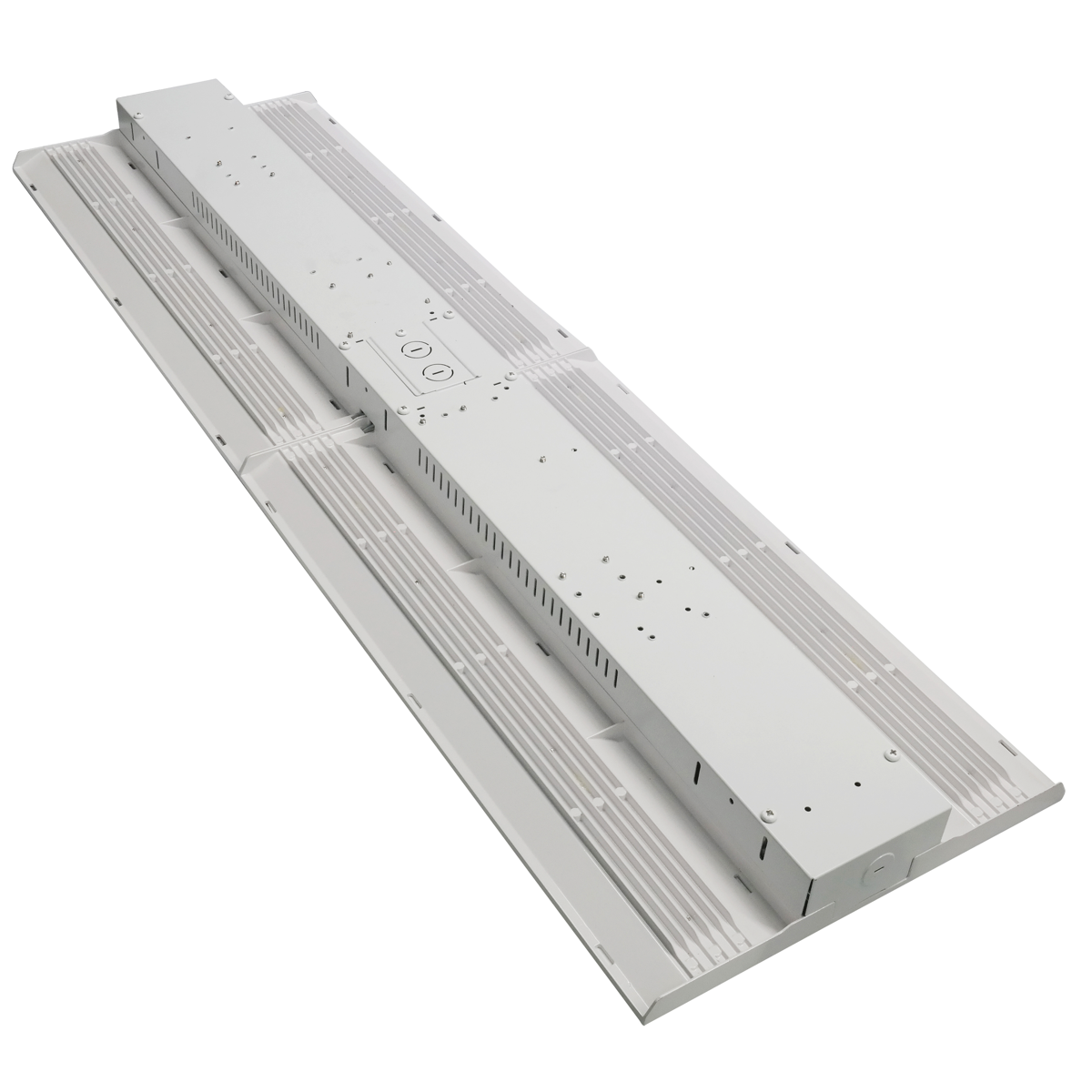

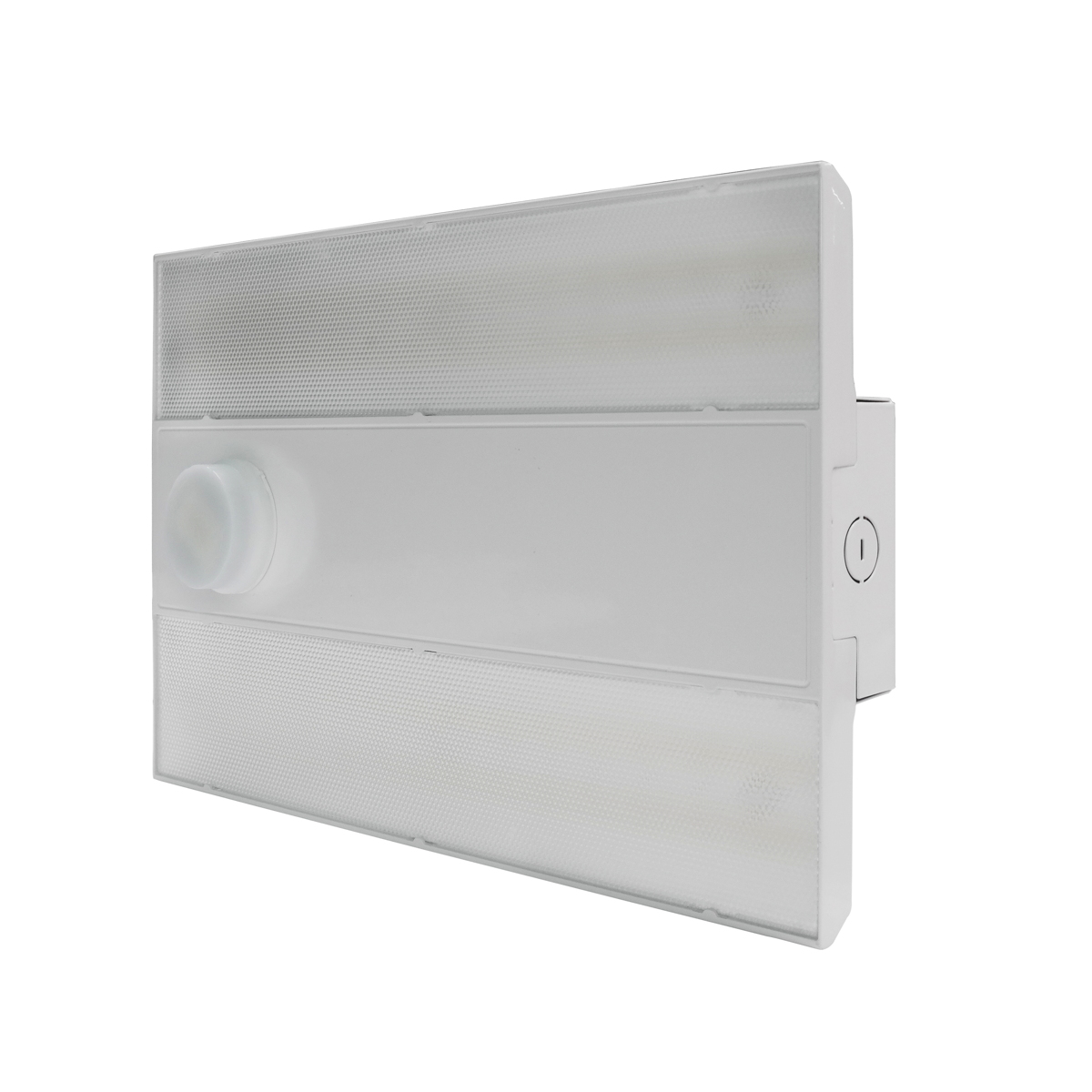

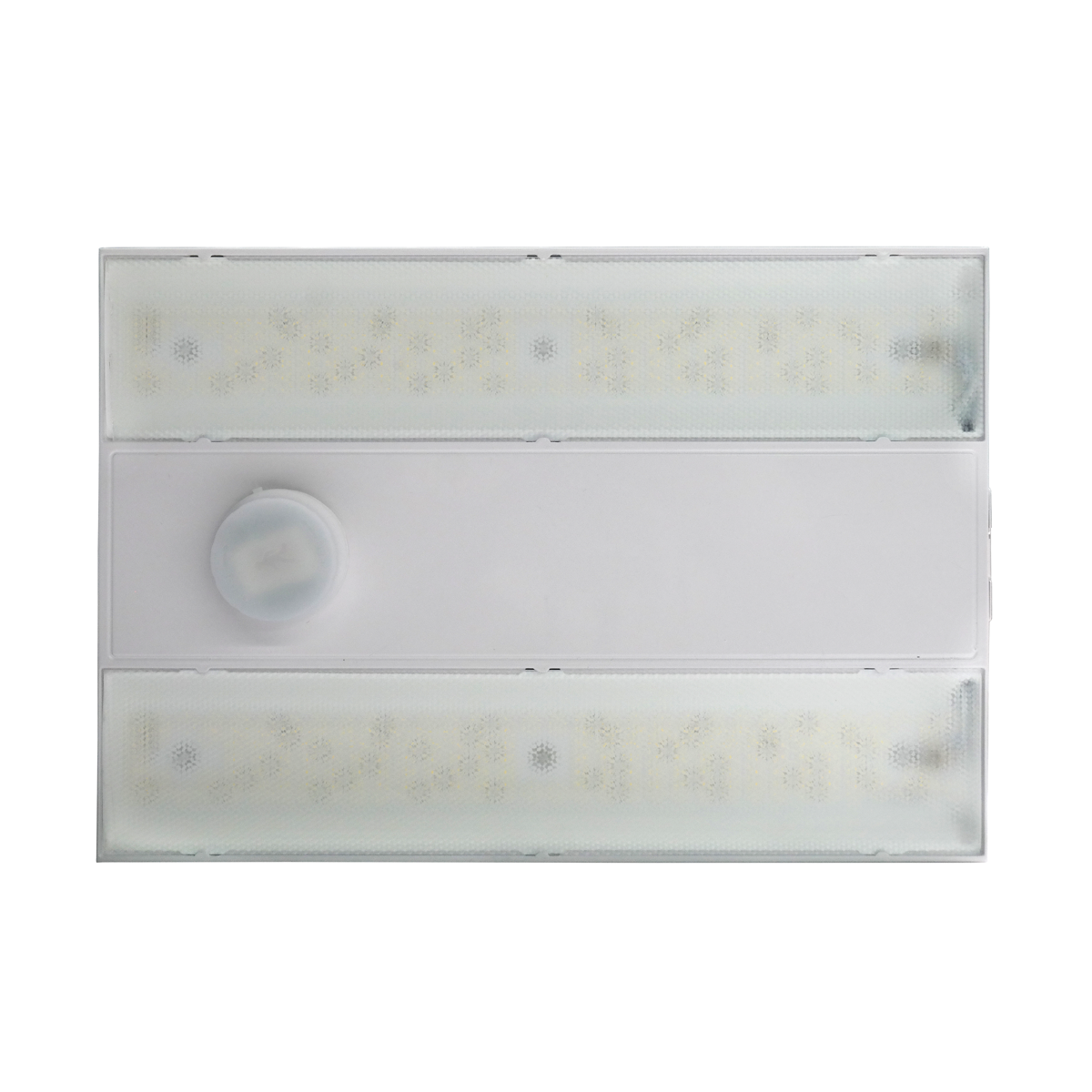

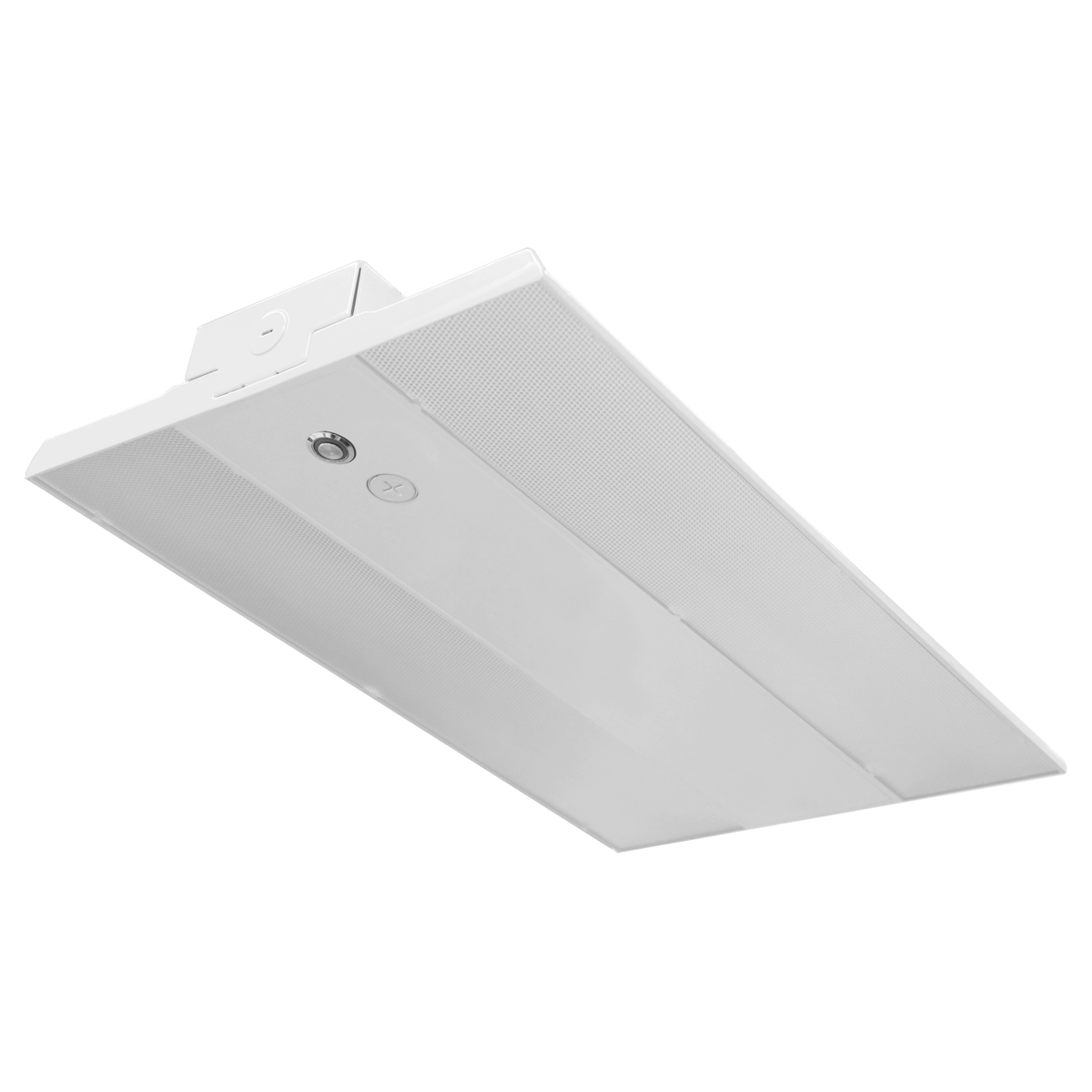

DESIGN. - LED LINEAR HIGH BAY WITH Q-BASE has a built-in motion sensor base, allowing you to install microwave or PIR motion sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V circuits with a 0-10V dimmable driver.

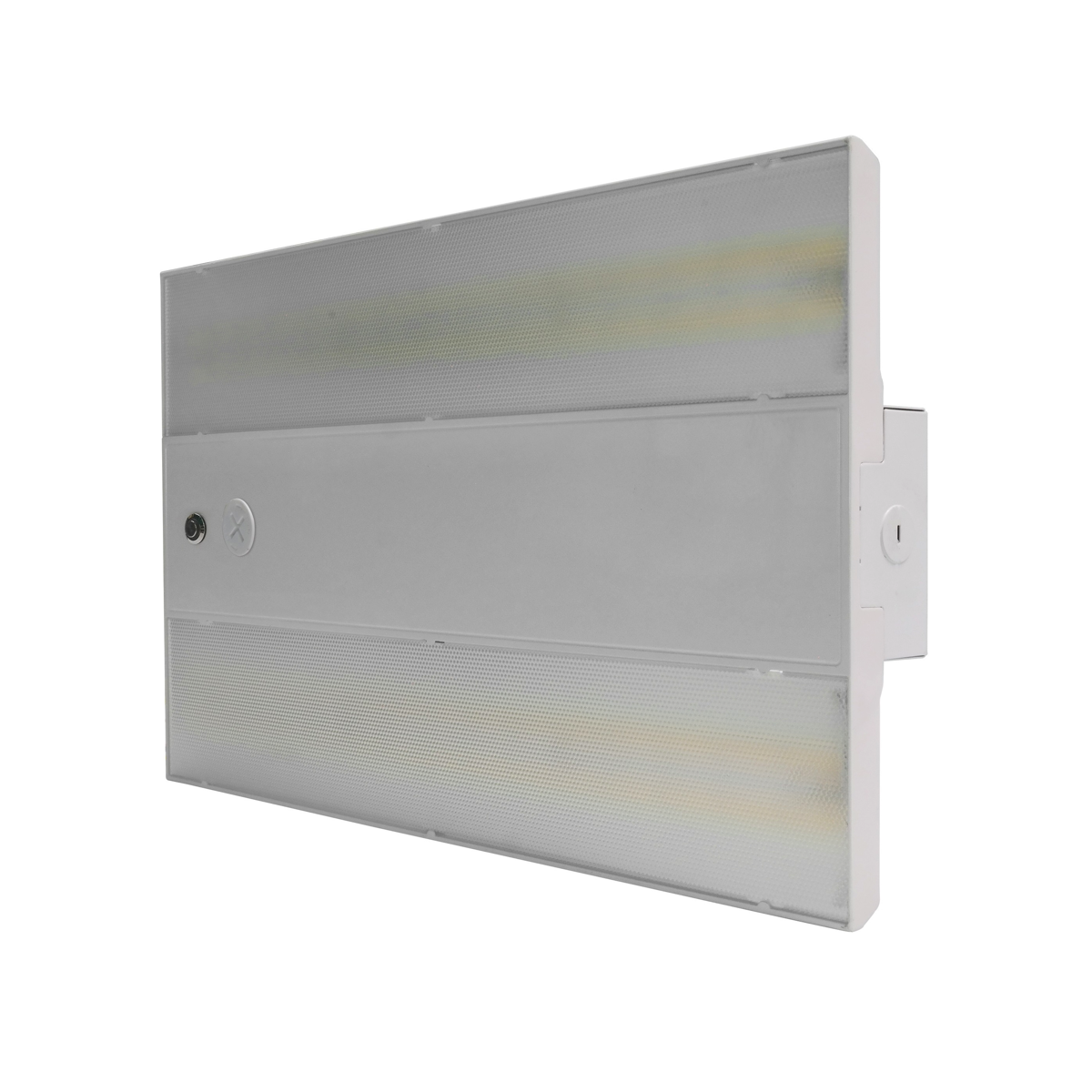

BATTERY BACK-UP - The built-in battery back-up provides 90 minutes of power in case of emergency.

SURGE PROTECTION 6kV protects the fixture from voltage spikes and current surges.

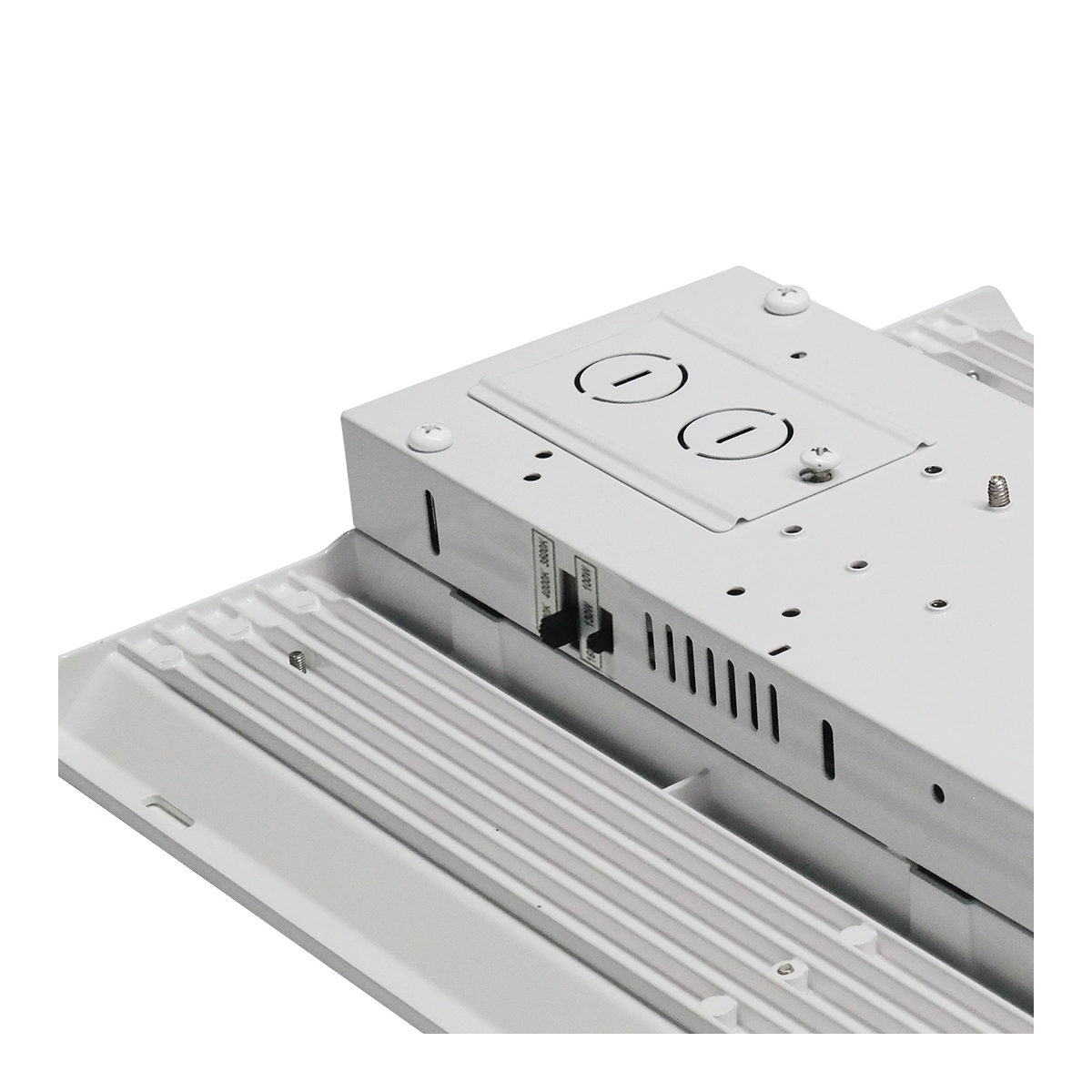

COLOR AND POWER SELECTABLE. You can choose either a 3,500K neutral white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.

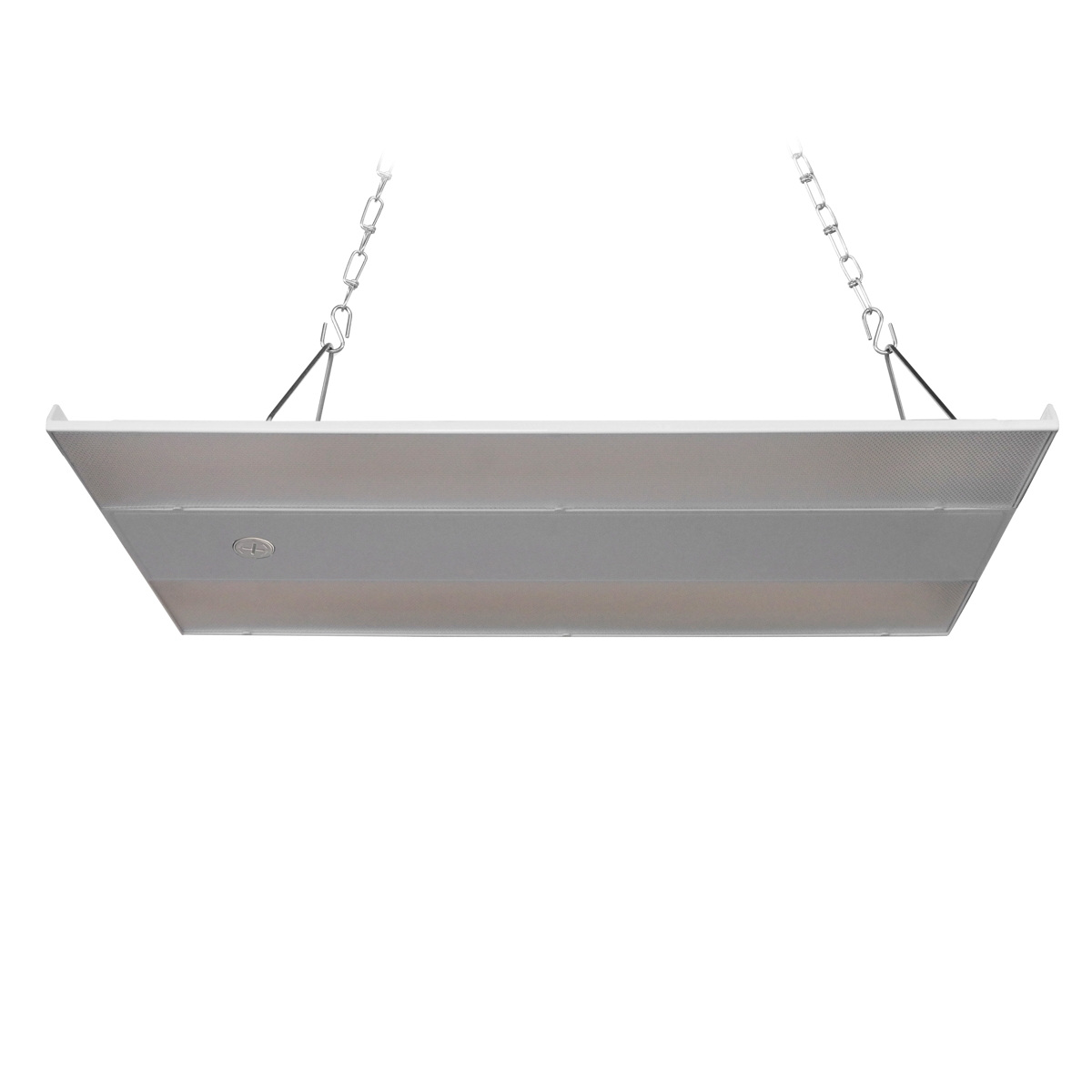

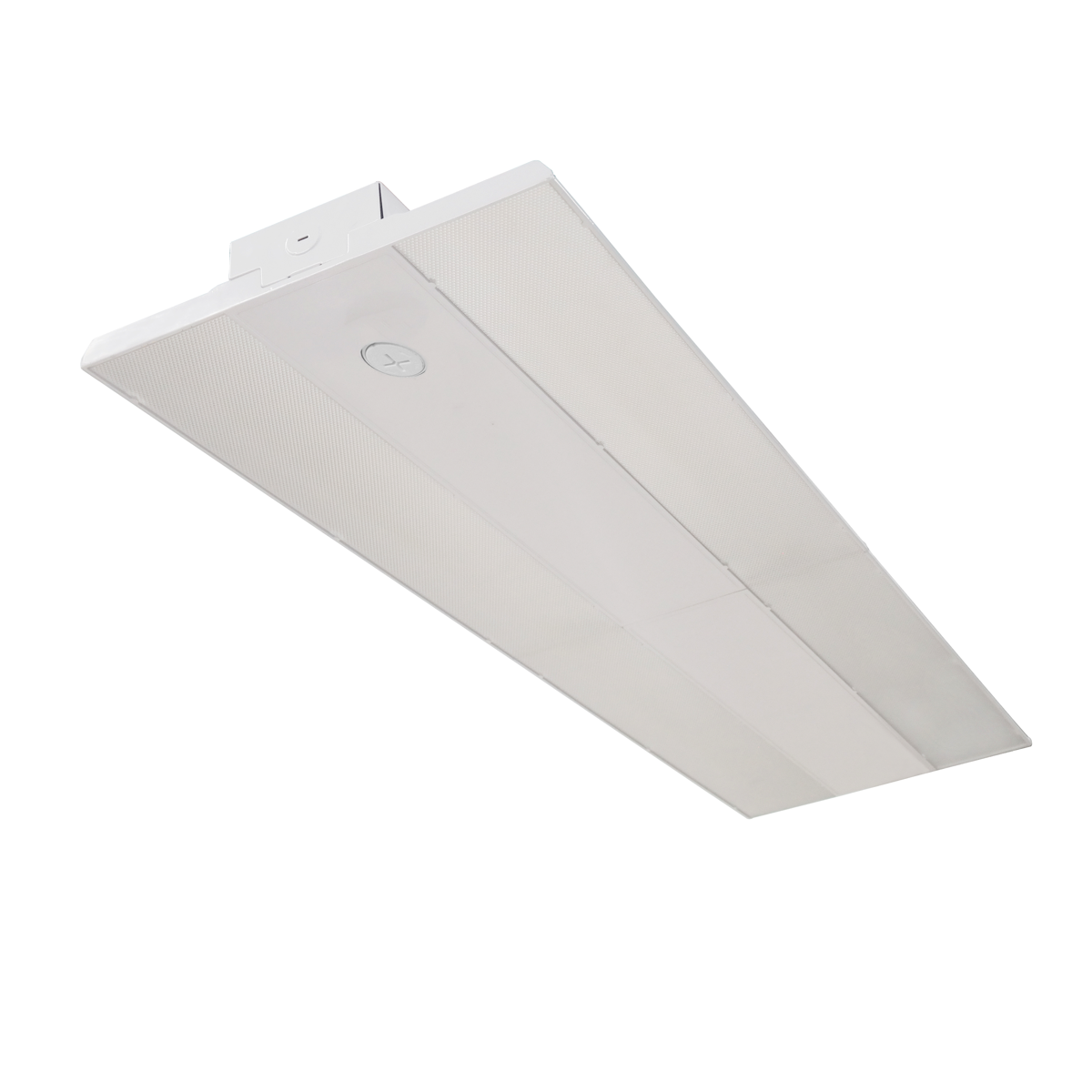

INSTALLATION. It has three different mounting options: suspended, surface, and pendant. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications. This fixture is also Damp Locations rated.

ADVANTAGES. With calculated lifespan up to 187,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!



width=  Note: Product has been discontinued by manufacturer. Available while supplies last.


Power :
Color Temperature :
Sensor :
Remote Control for Sensor :
Emergency Battery Backup :
Remote Control for Battery Backup :
Mounting Accessories - Surface Mount Bracket :
Mounting Accessories - Pendant Mount Bracket :
Wire Guard :
Brand :
ASD
Model Number :
ASD-WHB5A
Type :
Linear
Lumens :
15,000-73,000 lm
Watts :
Selectable 100W-500W, 100W-500W
Voltage :
120-277V
Color Temperature :
Selectable 3000K/4000K/5000K, 5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Damp Location, Dry Location, IP65
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp Location, IP65
Safety Certification :
DLC 5.1 Premium, UL
Dimensions (L x W x H) :
Weight :
