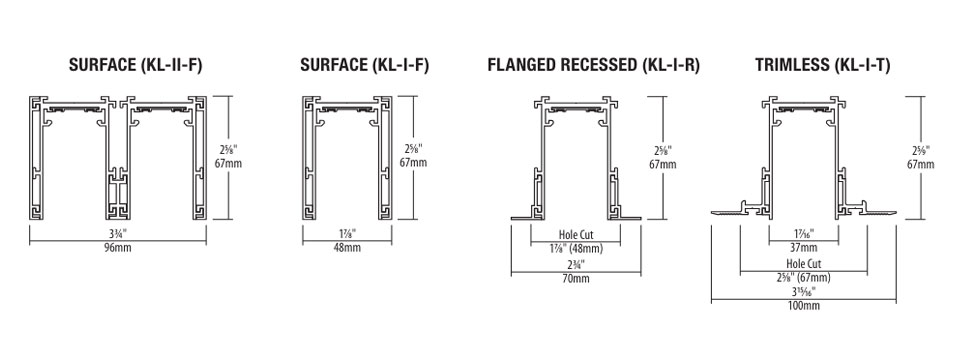

Dimensions

The perfect combination of track and LED fixtures, Liteline's Klick modules easily snap in and out of the Klick powered track to provide your space with the ultimate flexibility.

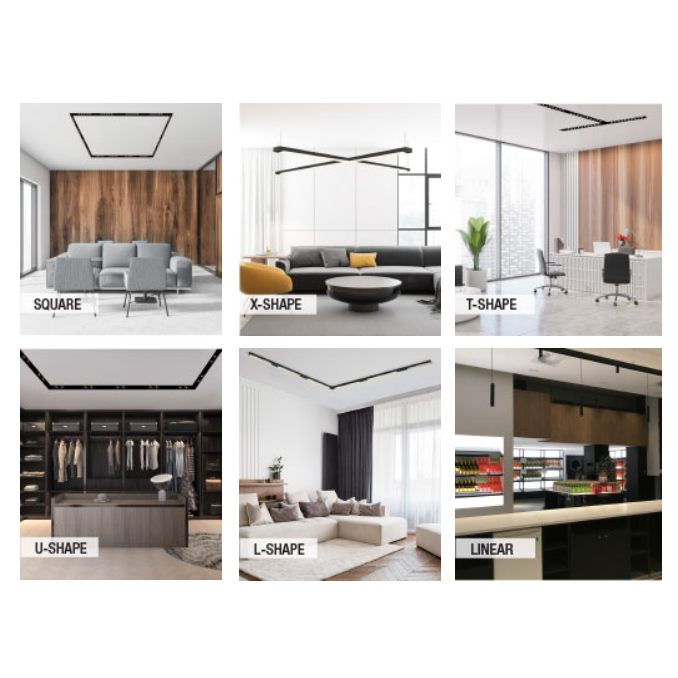

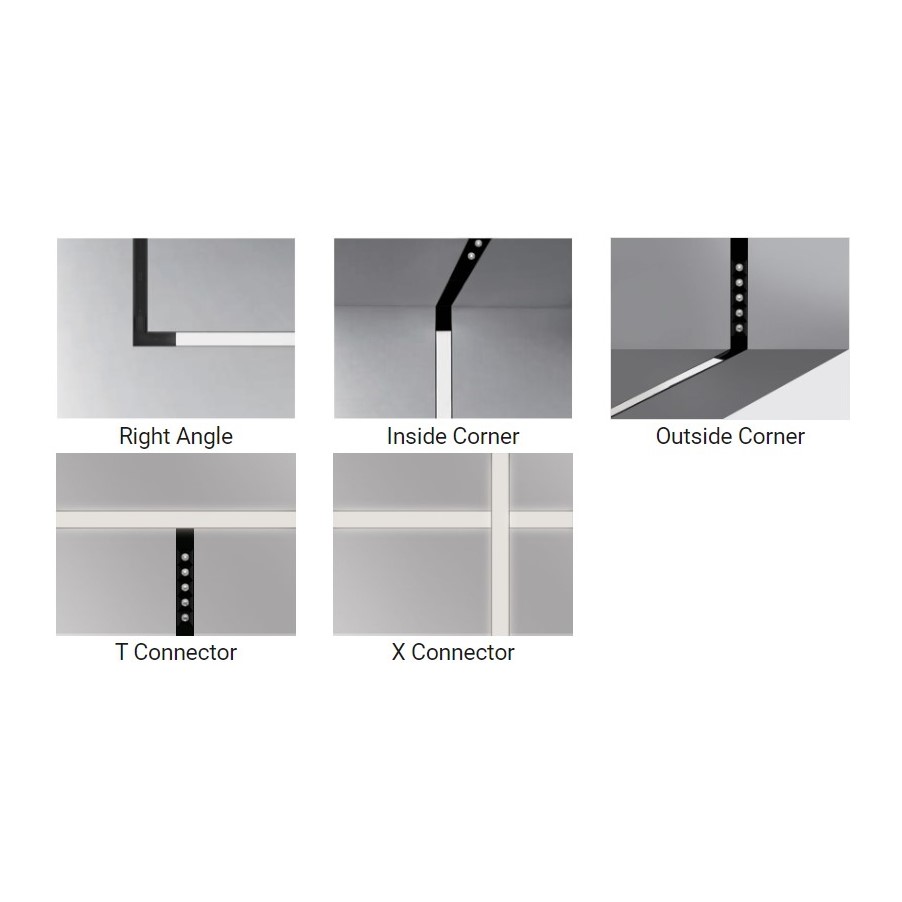

The track is available in black, while side panels are available in black or white, and can be mounted using trimless adapters, surface mount, recessed, suspended or ganged in parallel. The ability to incorporate right angle, inside and outside corner pieces allows for the creative mind to wander into creating the most architectural of designs.

KLICK's modular design allows for designers to select each component they want to create a look that is totally unique. Build the right fixture for your space using the plug-and-play module system.

KLICK Architectural Custom Track System by Liteline

From : $9, 999.00

The KLICK track is a recessed, trimless or surface-mounted lighting system. The track system can accommodate a variety of LED lighting modules and fixtures to deliver beautiful lighting designs.

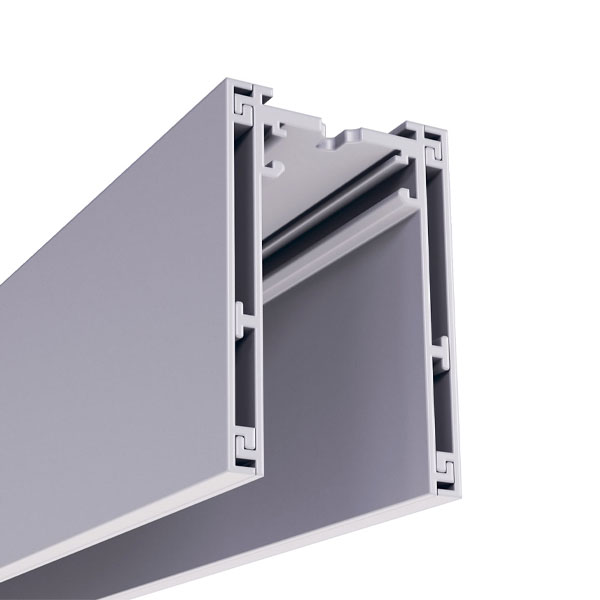

Body - 3-Part monocoque sandwich construction made from interlocking extruded aluminum channels. Outer skin extrusions are stocked in white and black and can be custom painted. Overlapping joints provide structural rigidity for sag-free construction with no light leaks, and unlimited continuous run lengths. Welded corners allow 3 dimensional configurations with power continuity. Can be ganged together for multiple channels allowing for multi-circuit applications.
Electrical - Two copper conduits provides power supply from compatible 24V DC drivers (100W max. – driver sold separately) to multiple KLICK lighting modules and fixtures. End cap with 15" SVT FT2 wire for wiring to compatible driver.
Beam Spread - Fixture lens options available in 15°, 25°, 40° and 60° beam spread.
Mounting - Surface: › Clips › Keyhole • Recessed – Flanged • Trimless Recessed: › Mud-in Flange › Precision Pro • Suspension Aircraft Cable Kit
Controls - KLICK is compatible with a wide variety of control options. • TRIAC/ELV/0-10V (Standard) • Lutron EcoSystem Order without driver for PoE ready configurations to accept PWM 24V signal. Wi-Fi control available with Liteline OnCloud driver or by combining OnCloud dimmer with standard ELV driver.
