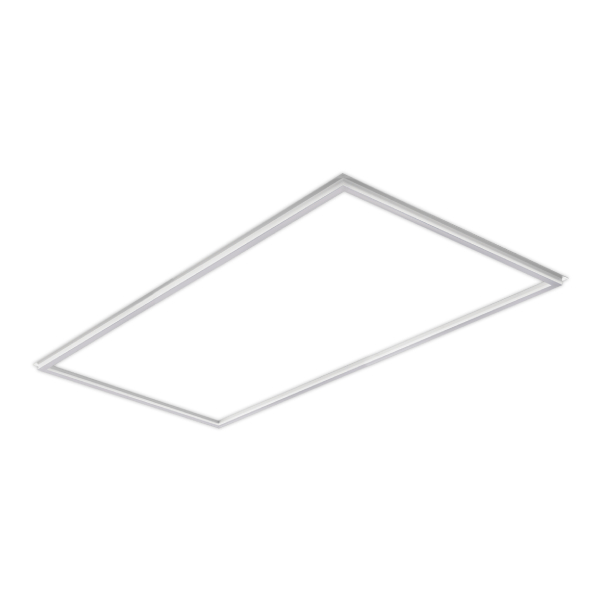

LR24166 2x4 Frame Panel, 5-CCT & 3-Power Selectable by Luxrite

$91.67

The Luxrite LR24166 is a 2X4 frame panel featuring 5-CCT selectable color temperatures (3000K/3500K/4000K/5000K/6500K) and 3-power selectable wattage (40/50/60W) for LED edge-lit frame panel lighting installations. This frame panel measures 47.7-inch length, 23.7-inch width, and 0.5-inch height with white finish, delivering 5200/6500/7800 lumens with 120° beam angle and CRI 80. Designed for professional installation for 2X4 troffer fixtures with customizable color and power options, it provides elegant frame panel lighting ideal for commercial and residential spaces requiring versatile edge-lit LED panel lighting with sleek, modern aesthetics.

Model Number: LR24166

Ordering Code: LED2X4FRAME/PNL/3WO/5CCT/D


Brand :
Luxrite
Model Number :
LED2X4FRAME/PNL/3WO/5CCT/D
Type :
Frame
Size :
2x4
Lumens :
5200/ 6500/ 7800 lm
Watts :
Selectable 40W/50W/60W
Color Temperature :
Color Selectable
CRI :
80+
Voltage :
100-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Standard
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
47.7" x 23.7" x 0.5"
Weight :
