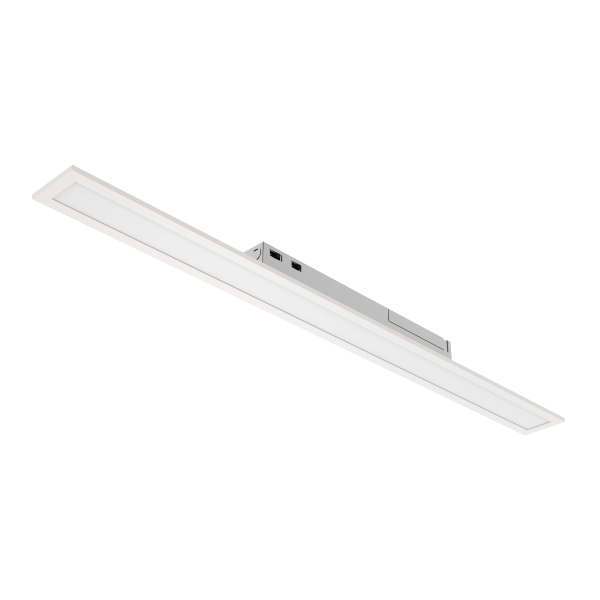

LR24221 4' Recessed Backlit Panel, CCT & Power Selectable by Luxrite

$110.00

The Luxrite LR24221 is a 4-foot recessed backlit panel featuring CCT selectable color temperatures and power selectable wattage for LED flat panel lighting installations. This backlit panel delivers reliable illumination with customizable color and brightness options, ideal for commercial and residential spaces requiring versatile backlit LED panel lighting. Designed for recessed lighting applications with backlit technology, it provides professional installation for troffer fixtures with uniform light distribution and efficient performance.

Model Number: LR24221

Ordering Code: LED4"X4BPNL/3WO/4CCT/D


Brand :
Luxrite
Model Number :
LED4"X4BPNL/3WO/4CCT/D
Type :
Back Lit
Size :
Lumens :
2200/ 3300/ 4400 lm
Watts :
Selectable 18W/28W/40W
Color Temperature :
3000K, 3500K, 4000K, 5000K, Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp
Safety Certification :
UL Listed
Dimensions (L x W x H) :
47.80" x 3.93" x 1.38"
Weight :
