Home Troffers LR24245 1x4 Backlit Panel, 5-CCT & 5-Power Selectable with Sensor Ready by Luxrite
Specification Sheet
Installation Instructions

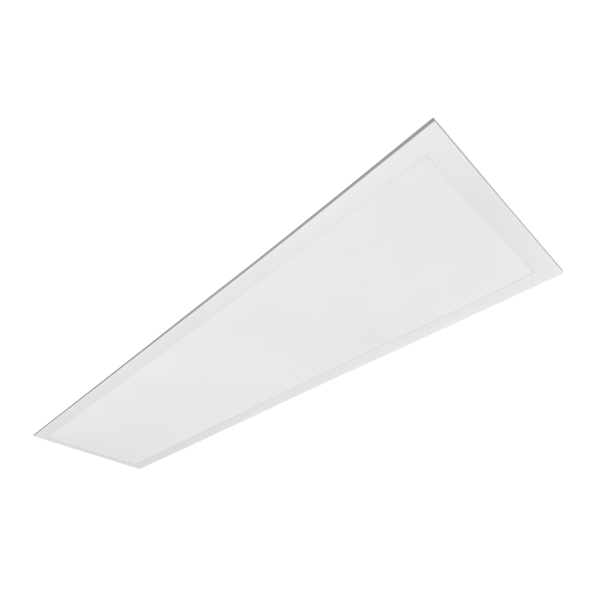

LR24245 1x4 Backlit Panel, 5-CCT & 5-Power Selectable with Sensor Ready by Luxrite

$56.67

The Luxrite LR24245 is a 1X4 backlit panel featuring wattage selectable power and 5 CCT color options. This high-efficiency backlit panel delivers superior brightness, visual comfort, and flexibility with anti-glare properties that reduce eye strain and offer glare-free environments. Designed for lay-in lighting applications with backlit technology, it provides uniform light distribution and professional installation for 1X4 troffer fixtures, ideal for offices, commercial spaces, and residential areas requiring efficient LED panel lighting with reduced glare.

Model Number: LR24245

Ordering Code: LED1X4BPNL/5WO/5CCT/D/SR


Brand :
Luxrite
Model Number :
LED1X4BPNL/5WO/5CCT/D/SR
Type :
Back Lit
Size :
1x4
Lumens :
2500/ 3125/ 3750/ 4375/ 5000 lm
Watts :
Selectable 20W/25W/30W/35W/40W
Color Temperature :
Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Premium, DLC Standard, IC
Safety Certification :
ETL Listed, FCC
Dimensions (L x W x H) :
47.72" x 11.85" x 1.17"
Weight :
