LR24250 2x2 Backlit Panel, 3-CCT & Power Selectable, Antiglare by Luxrite

$50.00

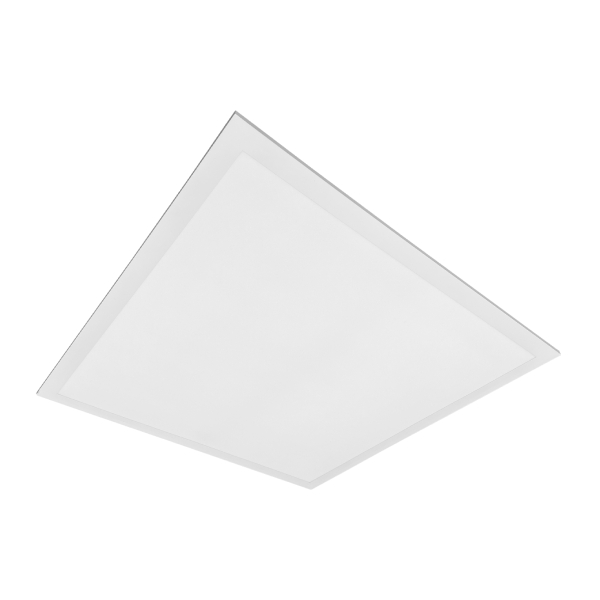

The Luxrite LR24250 is a 2X2 backlit panel featuring wattage selectable power (30/35/40W) and 3 CCT color options (4000K/5000K/6500K) with anti-glare micro-prismatic lens for LED flat panel lighting installations. This high-efficiency backlit panel delivers 3750/4375/5000 lumens with anti-glare properties that reduce eye strain and provide glare-free environments for comfortable illumination. Designed for lay-in lighting applications with backlit technology and 0-10V dimming capability, it provides professional installation for 2X2 troffer fixtures with uniform light distribution, ideal for offices, commercial spaces, and residential areas requiring efficient LED panel lighting with reduced glare.

Model Number: LR24250

Ordering Code: LED2X2BPNL/3WO/3CCTD/AG/D


Brand :
Luxrite
Model Number :
LED2X2BPNL/3WO/3CCTD/AG/D
Type :
Back Lit
Size :
2x2
Lumens :
3750/ 4375/ 5000 lm
Watts :
Selectable 30W/35W/40W
Color Temperature :
Color Selectable
CRI :
80+
Voltage :
100-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Premium, DLC Standard, IC
Safety Certification :
ETL Listed, FCC
Dimensions (L x W x H) :
23.74" x 23.74" x 1.47"
Weight :
