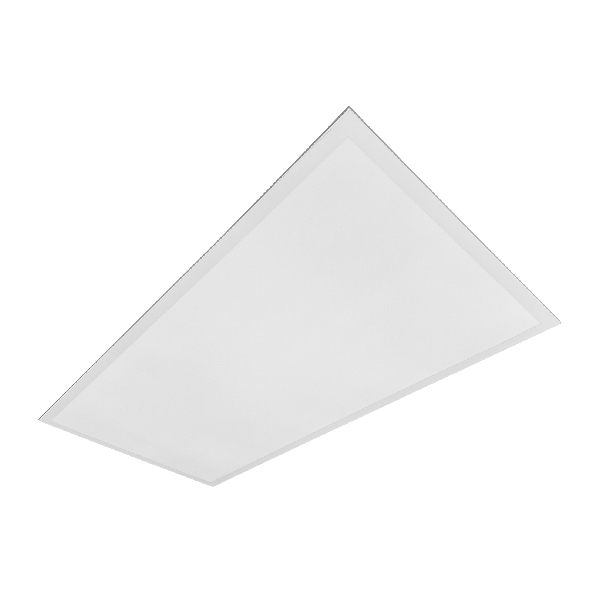

LR24253 2x4 Backlit Panel, 3-CCT & Power Selectable, Antiglare by Luxrite

$83.33

The Luxrite LR24253 is a 2X4 backlit panel featuring wattage selectable power (30/40/50W) and 3 CCT color options (4000K/5000K/6500K) with anti-glare micro-prismatic lens for LED flat panel lighting installations. This high-efficiency backlit panel delivers 3750/5000/6250 lumens with anti-glare properties that reduce eye strain and provide glare-free environments for comfortable illumination. Designed for lay-in lighting applications with backlit technology and 0-10V dimming capability, it provides professional installation for 2X4 troffer fixtures with uniform light distribution, ideal for offices, commercial spaces, and residential areas requiring efficient LED panel lighting with reduced glare.

Model Number: LR24253

Ordering Code: LED2X4BPNL/3WO/3CCTD/AG/D


Brand :
Luxrite
Model Number :
LED2X4BPNL/3WO/3CCTD/AG/D
Type :
Back Lit
Size :
2x4
Lumens :
3750/ 5000/ 6250 lm
Watts :
Selectable 30W/40W/50W
Color Temperature :
Color Selectable
CRI :
80+
Voltage :
100-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Premium, IC
Safety Certification :
ETL Listed, FCC
Dimensions (L x W x H) :
23.74" x 47.72" x 1.47"
Weight :
