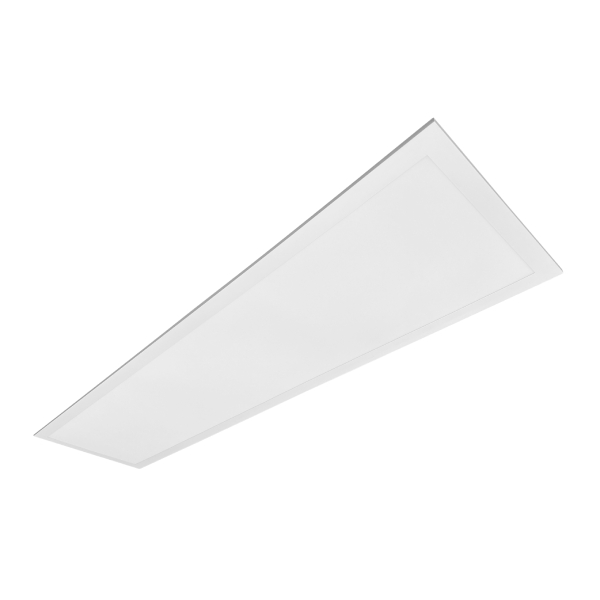

LR24255 1x4 Backlit Panel, 3-CCT & Power Selectable, Antiglare by Luxrite

$63.33

The Luxrite LR24255 is a 1X4 backlit panel featuring wattage selectable power and 3 CCT color options with anti-glare micro-prismatic lens for LED flat panel lighting installations. This high-efficiency backlit panel delivers superior brightness, visual comfort, and flexibility with anti-glare properties that reduce eye strain and offer glare-free environments. Designed for lay-in lighting applications with backlit technology, it provides uniform light distribution and professional installation for 1X4 troffer fixtures, ideal for offices, commercial spaces, and residential areas requiring efficient LED panel lighting with reduced glare.

Model Number: LR24255

Ordering Code: LED1X4BPNL/3WO/3CCTD/AG/D


Brand :
Luxrite
Model Number :
LED1X4BPNL/3WO/3CCTD/AG/D
Type :
Back Lit
Size :
1x4
Lumens :
3750/ 4375/ 5000 lm
Watts :
Selectable 30W/35W/40W
Color Temperature :
Color Selectable
CRI :
80+
Voltage :
100-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Premium, IC
Safety Certification :
FCC, UL Listed
Dimensions (L x W x H) :
11.85" x 47.72" x 1.47"
Weight :
