Home Troffers LR24293 2x4 Backlit Panel, 5-CCT & 3-Power Selectable by Luxrite
Specification Sheet
Installation Instructions

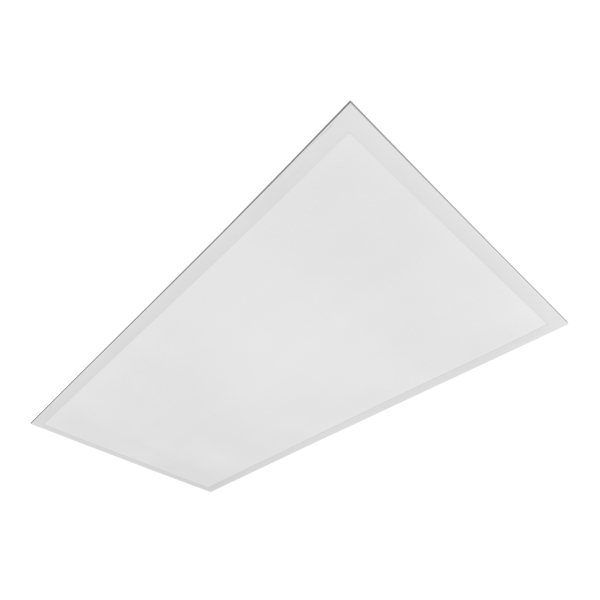

LR24293 2x4 Backlit Panel, 5-CCT & 3-Power Selectable by Luxrite

$80.00

The Luxrite LR24293 is a 2X4 backlit panel featuring 3 wattage selectable power and 5 CCT selectable color temperatures for LED flat panel lighting installations. This backlit panel delivers reliable illumination with customizable color and brightness options, ideal for commercial and residential spaces requiring versatile backlit LED panel lighting. Designed for lay-in lighting applications with backlit technology, it provides professional installation for 2X4 troffer fixtures with uniform light distribution and efficient performance.

Model Number: LR24293

Ordering Code: LED2X4BPNL/3WO/5CCT/D


Brand :
Luxrite
Model Number :
LED2X4BPNL/3WO/5CCT/D
Type :
Back Lit
Size :
2x4
Lumens :
3750/ 5000/ 6250 lm
Watts :
Selectable 30W/40W/50W
Color Temperature :
Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Standard, IC
Safety Certification :
ETL Listed, FCC
Dimensions (L x W x H) :
23.7" x 47.7" x 1.47"
Weight :
