Home Troffers LR24294 2x4 Backlit Panel, High Output, 5-CCT & Power Selectable by Luxrite
Specification Sheet
Installation Instructions

LR24294 2x4 Backlit Panel, High Output, 5-CCT & Power Selectable by Luxrite

$91.67

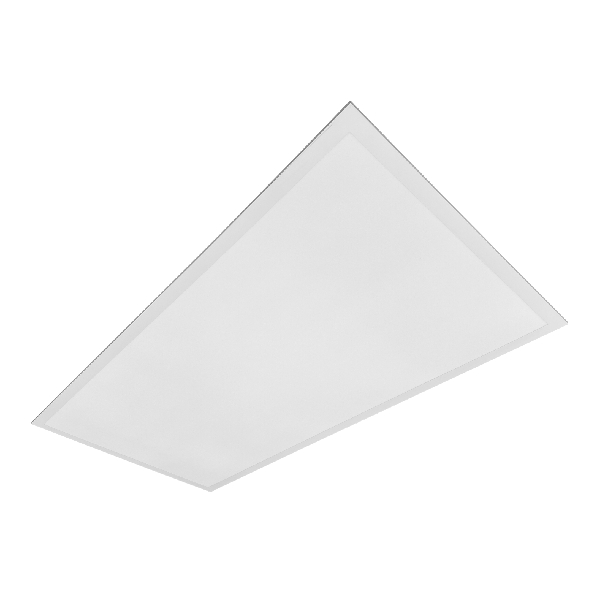

The Luxrite LR24294 is a 2X4 high output backlit panel featuring 5-CCT selectable color temperatures and power selectable wattage for LED flat panel lighting installations. This high-output backlit panel delivers exceptional brightness with customizable color temperature options, ideal for commercial and residential spaces requiring versatile high-brightness backlit LED panel lighting. Designed for lay-in lighting applications with backlit technology and high-output performance, it provides professional installation for 2X4 troffer fixtures with uniform light distribution and superior illumination output.

Model Number: LR24294

Ordering Code: LED2X4BPNL/HO/3WO/5CCT/D


Brand :
Luxrite
Model Number :
LED2X4BPNL/HO/3WO/5CCT/D
Type :
Back Lit
Size :
2x4
Lumens :
6250/ 7500/ 8500 lm
Watts :
Selectable 50W/60W/70W
Color Temperature :
Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, IC
Safety Certification :
ETL Listed, FCC
Dimensions (L x W x H) :
47.72" x 23.74" x 1.46"
Weight :
