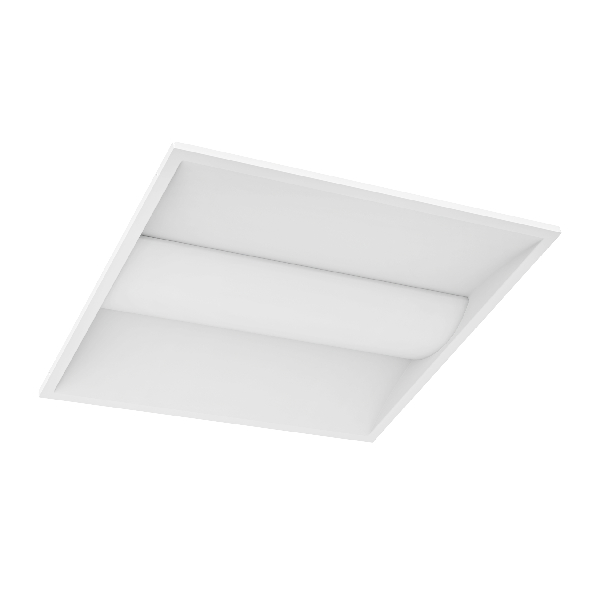

LR25311 2x2 Center Basket Troffer, 5-CCT & 5-Power Selectable by Luxrite

$91.67

The Luxrite LR25311 is a 2X2 center-basket troffer featuring 5 CCT selectable color temperatures (3000K/3500K/4000K/5000K/6000K) and 5 wattage selectable power (20/25/30/35/40W) for LED lay-in troffer lighting installations. This center-basket troffer measures 2X2 size, delivering 2500/3125/3750/4375/5000 lumens with 120° beam angle and CRI 80. Designed for lay-in lighting applications with 0-10V dimming capability, it provides professional installation for 2X2 troffer fixtures with customizable color and brightness, ideal for office spaces, retail experiences, and commercial areas requiring versatile center-basket LED troffer lighting.

Model Number: LR25311

Ordering Code: LED2X2TROF/CB/5WO/5CCT/D


Brand :
Luxrite
Model Number :
LED2X2TROF/CB/5WO/5CCT/D
Type :
Center Basket
Size :
2x2
Lumens :
2500/ 3125/ 3750/ 4375/ 5000 lm
Watts :
Selectable 20W/25W/30W/35W/40W
Color Temperature :
3000K, 3500K, 4000K, 5000K, 6000K, Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Premium
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
23.7" x 23.7" x 2.1"
Weight :
