Home Downlights LR25470 1" Interlocking Square Trimless Module, 5CCT, 7W by Luxrite

Specification Sheet
Installation Instructions

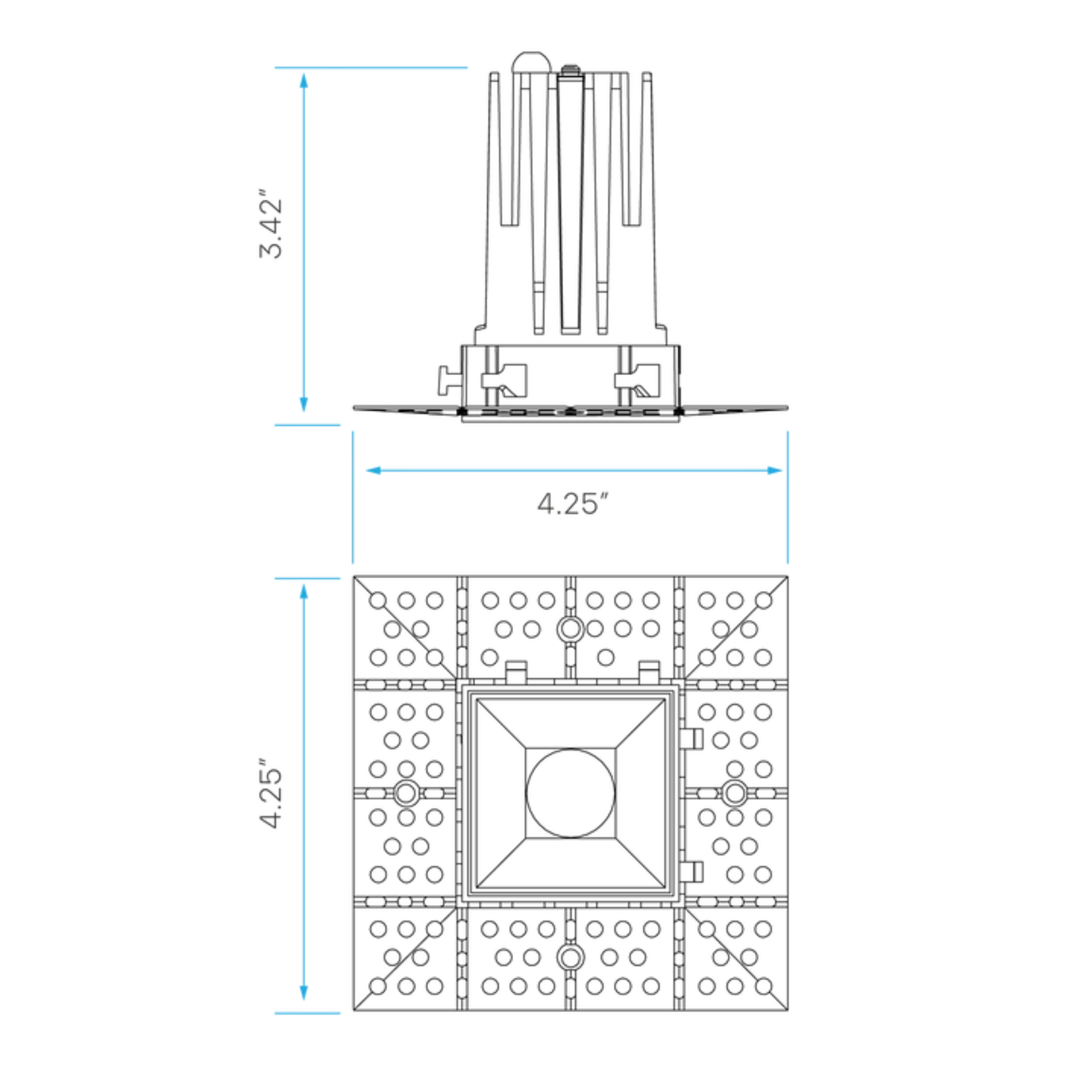

Dimensions

LR25470 1" Interlocking Square Trimless Module, 5CCT, 7W by Luxrite

$82.50

The Luxrite LR25470 is a 1-inch square trimless LED downlight featuring a unique interlocking system that allows for the creation of customized linear, right-angle, or geometric light layouts. This high-performance module includes an on-site 5CCT color-selectable switch and high-accuracy color rendering, ensuring precise light quality for any environment. Rated for wet locations and safe for direct insulation contact, it is an ideal architectural solution for creating seamless, modern lighting designs in high-end residential and commercial spaces.

  • 7W Power Output
  • 120V Input Voltage
  • Fixed Distribution
  • 38º Beam Angle
  • 5CCT Selectable (2700/3000/3500/4000/5000K)
  • TRIAC Dimming
  • Wet Location Rated
  • 5 Year Warranty

Brand :
Luxrite
Model Number :
LED/ITLMD1/5CCT/SQ/WT/D
Style :
Fixed Recessed, Trimless
Aperture Size :
1"
Shape :
Square
Lumens :
500lm
Watts :
7W
Input Voltage :
120V
Color Temperature :
Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
CRI :
90+
Beam Angle :
38°
Housing :
Canless, IC Rated, New Construction, Trimless
Dimmable :
Yes
Trim Finish :
NA
Ratings :
Airtight, IC, Wet
Safety Certification :
ETL Listed
