LR25705 2x2 Designer Panel, 3-CCT & Power Selectable by Luxrite

$88.00

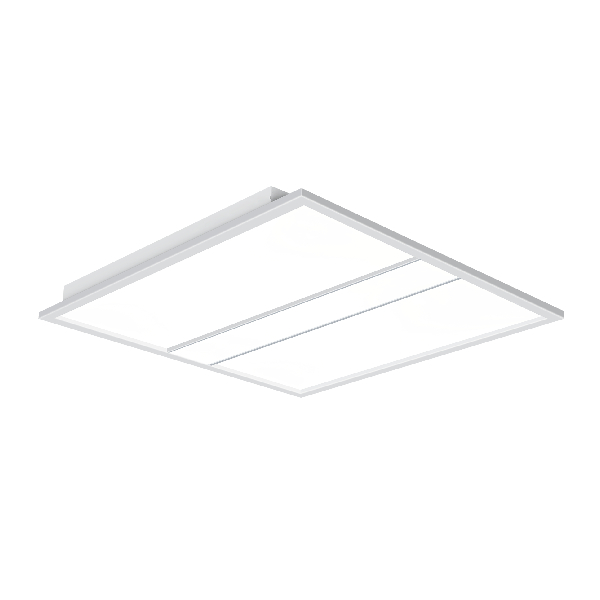

The Luxrite LR25705 is a 2X2 designer panel featuring 3 CCT selectable color temperatures and wattage selectable power (30-35W) for LED flat panel lighting installations with elegant designer aesthetics. This panel measures 23.74-inch length, 23.74-inch width, and 1.74-inch height with white finish, delivering 2k-4k lumens range. Designed for professional installation for 2X2 troffer fixtures with customizable color and power options, it provides elegant designer panel lighting ideal for commercial and residential spaces requiring versatile LED panel lighting with sophisticated aesthetics.

Model Number: LR25705

Ordering Code: LED2X2DPNL/3WO/3CCT/CL


Brand :
Luxrite
Model Number :
LED2X2DPNL/3WO/3CCT/CL
Type :
Back Lit
Size :
2x2
Lumens :
2750/ 3300/ 3850 lm
Watts :
Selectable 25W/30W/35W
Color Temperature :
3500K, 4000K, 5000K, Color Selectable
CRI :
80+
Voltage :
110-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Standard, IC
Safety Certification :
UL Listed
Dimensions (L x W x H) :
23.74" x 23.74" x 1.74"
Weight :
