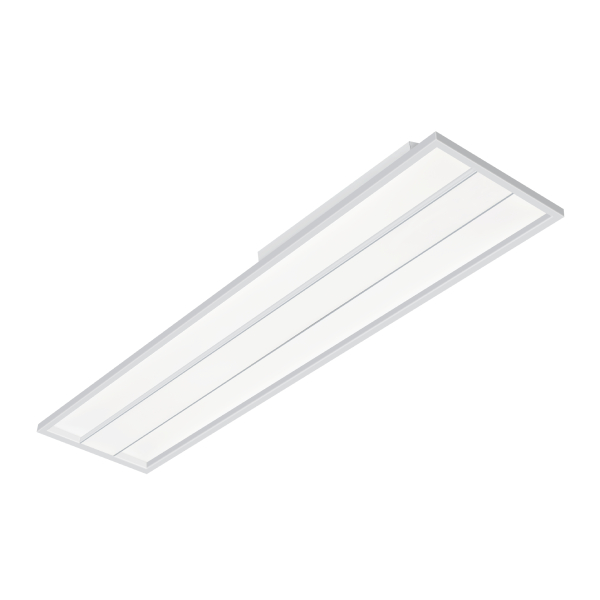

LR25709 1x4 Designer Panel, 3-CCT & Power Selectable by Luxrite

$106.33

The Luxrite LR25709 is a 1X4 designer panel featuring 3-CCT selectable color temperatures and power selectable wattage for LED flat panel lighting installations. This designer panel provides professional installation for 1X4 troffer fixtures with customizable color temperature and power options, ideal for commercial and residential spaces requiring versatile LED panel lighting with elegant designer aesthetics. The panel offers flexible lighting control with selectable color and power settings for optimal illumination in offices, commercial spaces, and residential areas.

Model Number: LR25709

Ordering Code: LED1X4DPNL/3WO/3CCT/CL


Brand :
Luxrite
Model Number :
LED1X4DPNL/3WO/3CCT/CL
Type :
Back Lit
Size :
1x4
Lumens :
2750/ 3300/ 3850 lm
Watts :
Selectable 25W/30W/35W
Color Temperature :
3500K, 4000K, 5000K, Color Selectable
CRI :
80+
Voltage :
110-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location
Ratings :
Damp, DLC Standard
Safety Certification :
UL Listed
Dimensions (L x W x H) :
47.72" x 11.77" x 1.74"
Weight :
