Home Constant Voltage LR36143 160W Micro Electronic Constant Voltage Driver + Dimmer + CCT Slider by Luxrite
Specification Sheet
Installation Instructions

LR36143 160W Micro Electronic Constant Voltage Driver + Dimmer + CCT Slider by Luxrite

$306.67

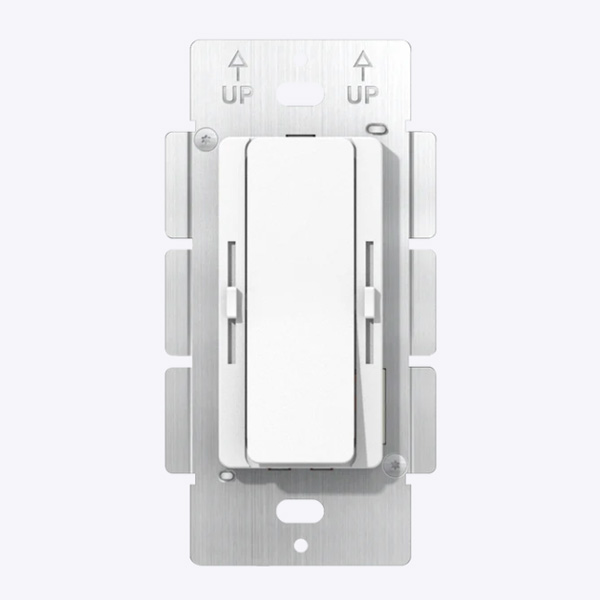

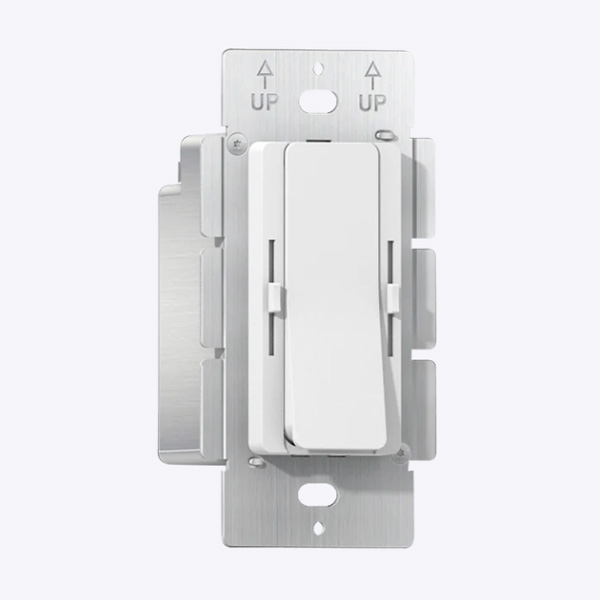

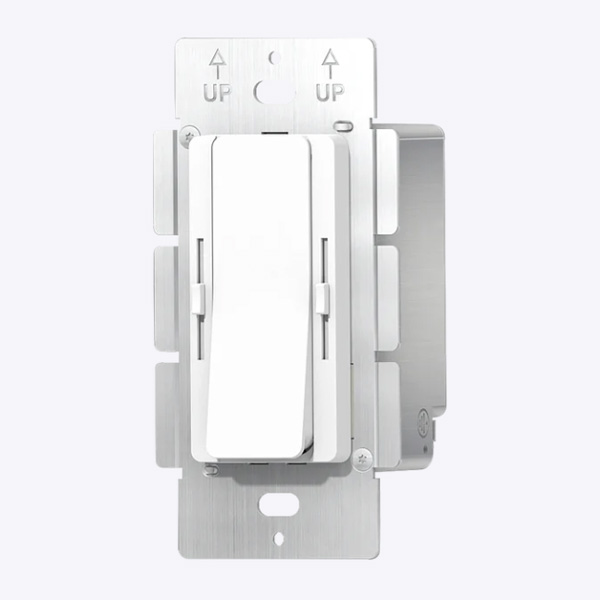

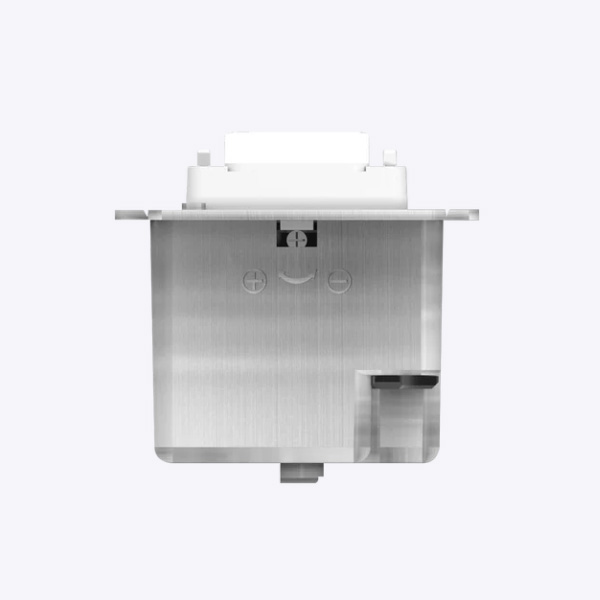

The Luxrite 160W Micro Electronic Constant Voltage Driver (LR36143) is an innovative, all-in-one power solution designed to streamline and elevate your low-voltage LED installations. Operating on a standard 120V input to deliver a reliable 24V DC output, this premium driver stands out by integrating both a Triac/Phase dimmer and a CCT (color temperature) selection slider directly into its ultra-compact housing. This unique design gives you complete, localized control over both light intensity—featuring an ultra-smooth dimming range down to 0.3%—and ambiance, eliminating the need for bulky external control modules. Engineered for maximum efficiency and equipped with robust safety protections, it provides steady, flicker-free power, making it the perfect choice for high-performance tape lights and constant-voltage fixtures in upscale residential or commercial spaces.


SKU :
LED/DM/MDRV/CCT/CV/160/24V/120V
Brand :
Luxrite
Max Wattage :
160W
Input Voltage Range :
120V
Output Voltage :
24V
Current Range :
6670mA
Default Current :
6670mA
Dimmable :
Phase Cut, TRIAC
Dimming Range :
Weight :
3.99
Dimensions (L x W x H) :
15.15" x 9.65" x 7.09"
