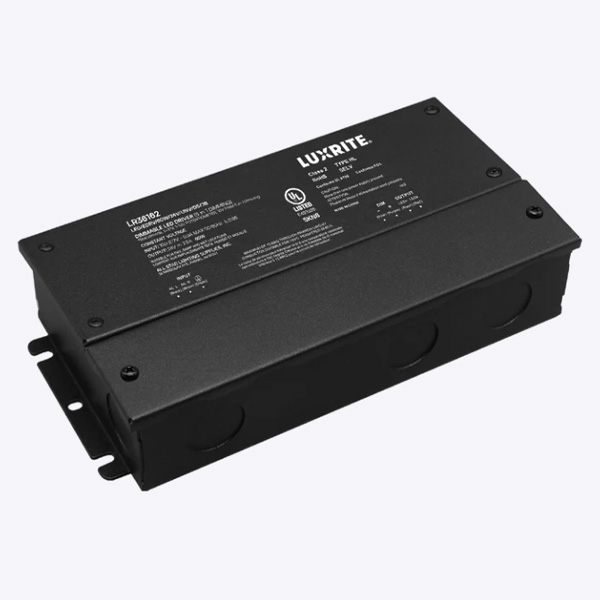

LR36162 60W Electronic Constant Voltage 5-in-1 Dimmable LED Driver by Luxrite

$105.67

The Luxrite 96W Micro Electronic Constant Voltage Driver (LR36162) is an innovative, commercial-grade power and control solution engineered for ultimate flexibility in low-voltage LED installations. Operating on a universal 120-277V input to deliver a reliable 24V DC Class 2 output, this premium driver uniquely integrates both a 0-10V dimming controller and a physical CCT (color temperature) selection slider directly into its sleek, compact housing. This all-in-one architecture eliminates the need for separate, bulky control modules, allowing for localized tuning of light warmth or crispness alongside ultra-smooth, flicker-free dimming down to 0.3%. Built with high energy efficiency and robust safety protections, it delivers stable, clean power perfectly optimized for 24V constant voltage LED tape lights and architectural linear fixtures in premium commercial and upscale residential settings.


SKU :
LED/EDRV/60W/24V/UNV/D5/JB
Brand :
Luxrite
Max Wattage :
60W
Input Voltage Range :
100-277V
Output Voltage :
24V
Current Range :
25000mA
Default Current :
25000mA
Dimmable :
0-10V, 1-10V, Phase Cut, PWM, TRIAC
Dimming Range :
0-100%
Weight :
3.99
Dimensions (L x W x H) :
7.40" x 3.75" x 1.72"
