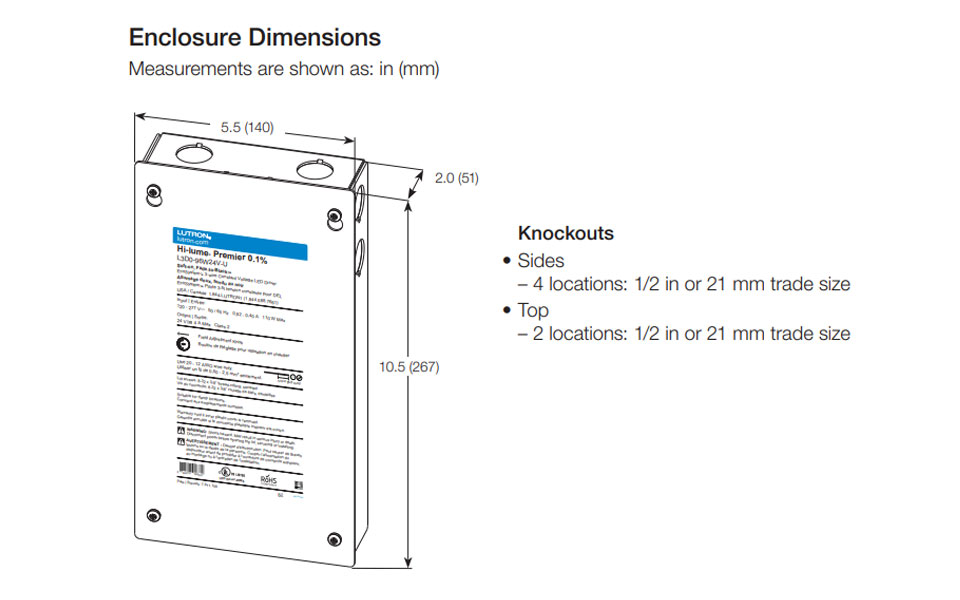

Dimensions

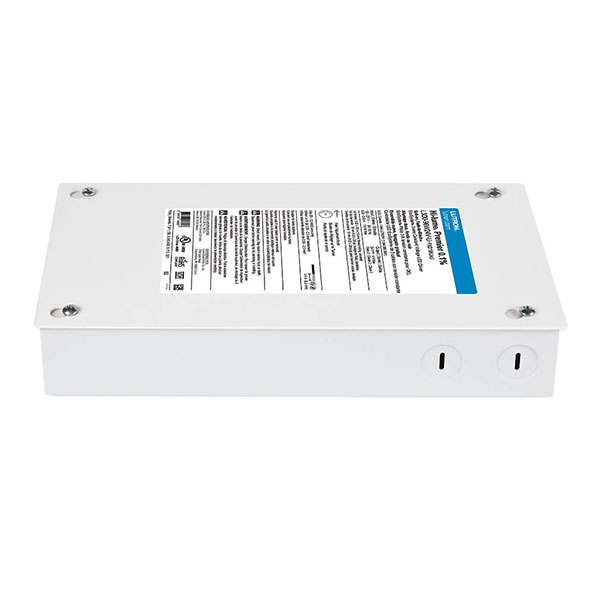

Lutron Hi-lume Premier 0.1% Ecosystem 3-Wire LED Driver by Alloy LED

$541.67


The Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) is a high-performance LED driver capable of controlling up to 96 W of 24 V- constant voltage loads. This driver provides smooth and continuous dimming down to 0.1% low-end. It is ideal for use with strip lighting in applications such as coves, under or over cabinet lighting and pathway lighting. The driver is UL® Listed with an integrated wiring compartment and can be mounted up to 150 ft (45 m) away from the load.

  • Continuous, flicker-free dimming from 100% to 0.1%
  • Soft-on, Fade-to-Black operation for EcoSystem controls: fades smoothly between 0% and 0.1% when turned on and off for an incandescent like experience
  • PWM dimming meets IEEE1789 over the entire dimming range
  • UL recognized and listed options for United States and Canada
  • Protected from miswires of input power, up to 277 V~, to EcoSystem control inputs




SKU :
AL-98-07-24096-3WIRE
Brand :
Alloy LED
Max Wattage :
96W
Input Voltage Range :
120-277V
Output Voltage :
24V
Current Range :
<2100mA
Default Current :
N/A
Dimmable :
PWM
Dimming Range :
0.1-100%
Weight :
3.99
Dimensions (L x W x H) :
10.5" x 5.5" x 2.00"
