Home Constant Power NPF-120-54 Constant Power Driver by Mean Well
Specification Sheet

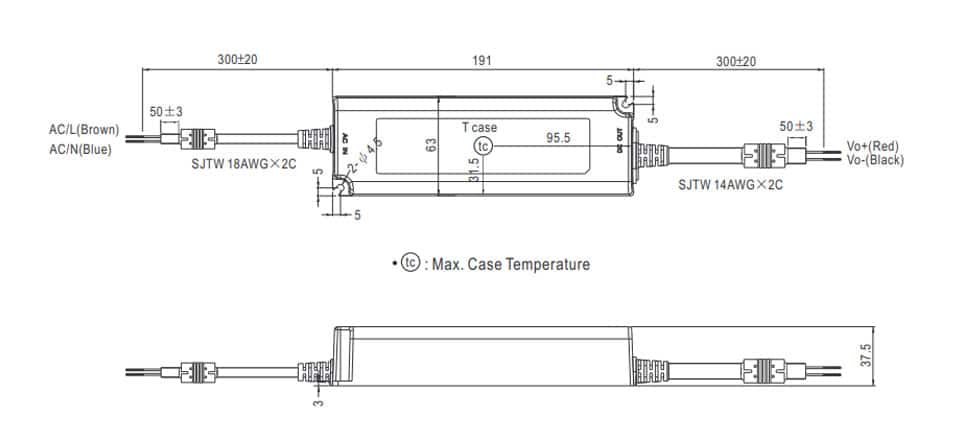

Diagram

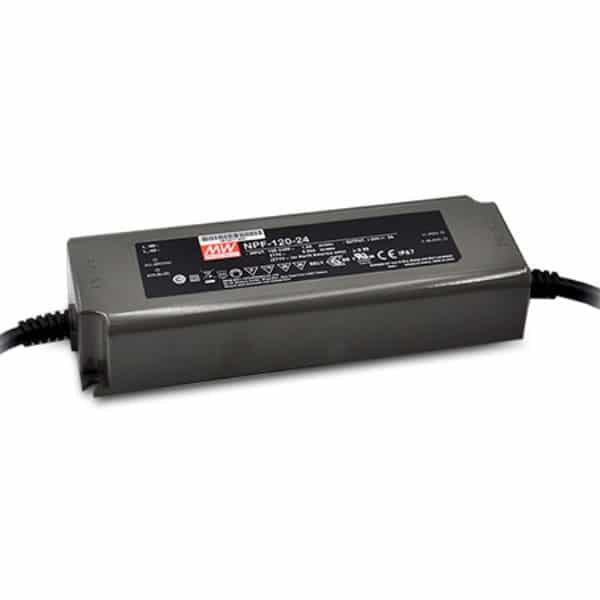

NPF-120-54 Constant Power Driver by Mean Well

$95.64


  • 120W NPF-120 Series
  • Constant Voltage + Constant Current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit (except NPF-90-12/15)
  • No load power consumption <0.15W
  • IP67 rating for indoor or outdoor installations
  • Typical lifetime > 50000 hours
  • 5 years warranty

SKU :
NPF-120-54
Brand :
Mean Well
Max Wattage :
120W
Input Voltage Range :
90-305V
Output Voltage :
54V
Default Current :
2300mA
Dimmable :
Non-Dimming
Dimming Range :
NA
Weight :
2.14
