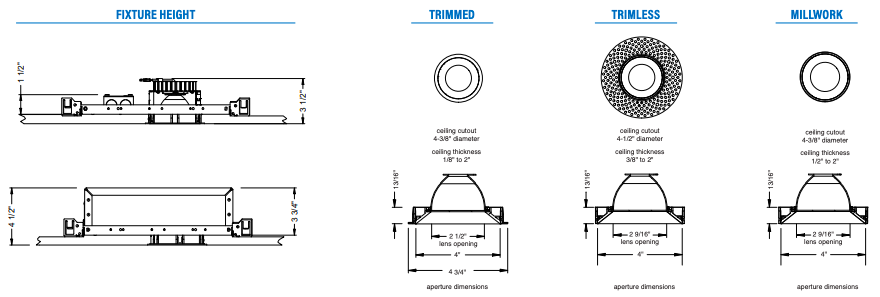

Dimensions
Warranty Information

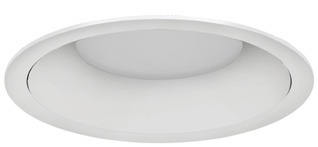

4" NU4RD LOPRO Series Round Downlight Static White by Alphabet


  • 3/4" bezel regress with 1/16" micro flange
  • 8° - 65° optical beam control
  • UGR < 19
  • 110 LPW average
  • Glare control, specialty optics, trim options, and custom finishes available.
  • Microban® antimicrobial finish available on all exposed painted surfaces

Type :
Lumens :
Color Temperature :
CRI :
Optics :
Bezel Lens :
Trim Color :
Bezel Color :
Mounting Options :
Voltage :
Dimming :
Emergency Options :
Brand :
Alphabet
Model Number :
NU4-RDLP-SW, NU4-RDTLP-SW, NU4-RDTMWLP-SW
Style :
Fixed Recessed
Aperture Size :
4"
Shape :
Round
Lumens :
990 lm - 3,090 lm
Watts :
9W-26W
Input Voltage :
120-277V
Color Temperature :
2700K, 3000K, 3500K, 4000K
CRI :
80+, 90+
Beam Angle :
8°, 12°, 20°, 25°, 35°, 50°, 65°
Housing :
New Construction, Retrofit, IC Rated
Dimmable :
Yes

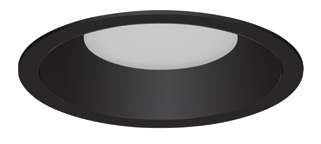

Trim Finish :
White, Black
Ratings :
Airtight, Chicago Plenum, IP65, Wet
Safety Certification :
CSA, UL Listed
Dimensions (L x W x H) :
4.75" x 4.75" x 4.5"
