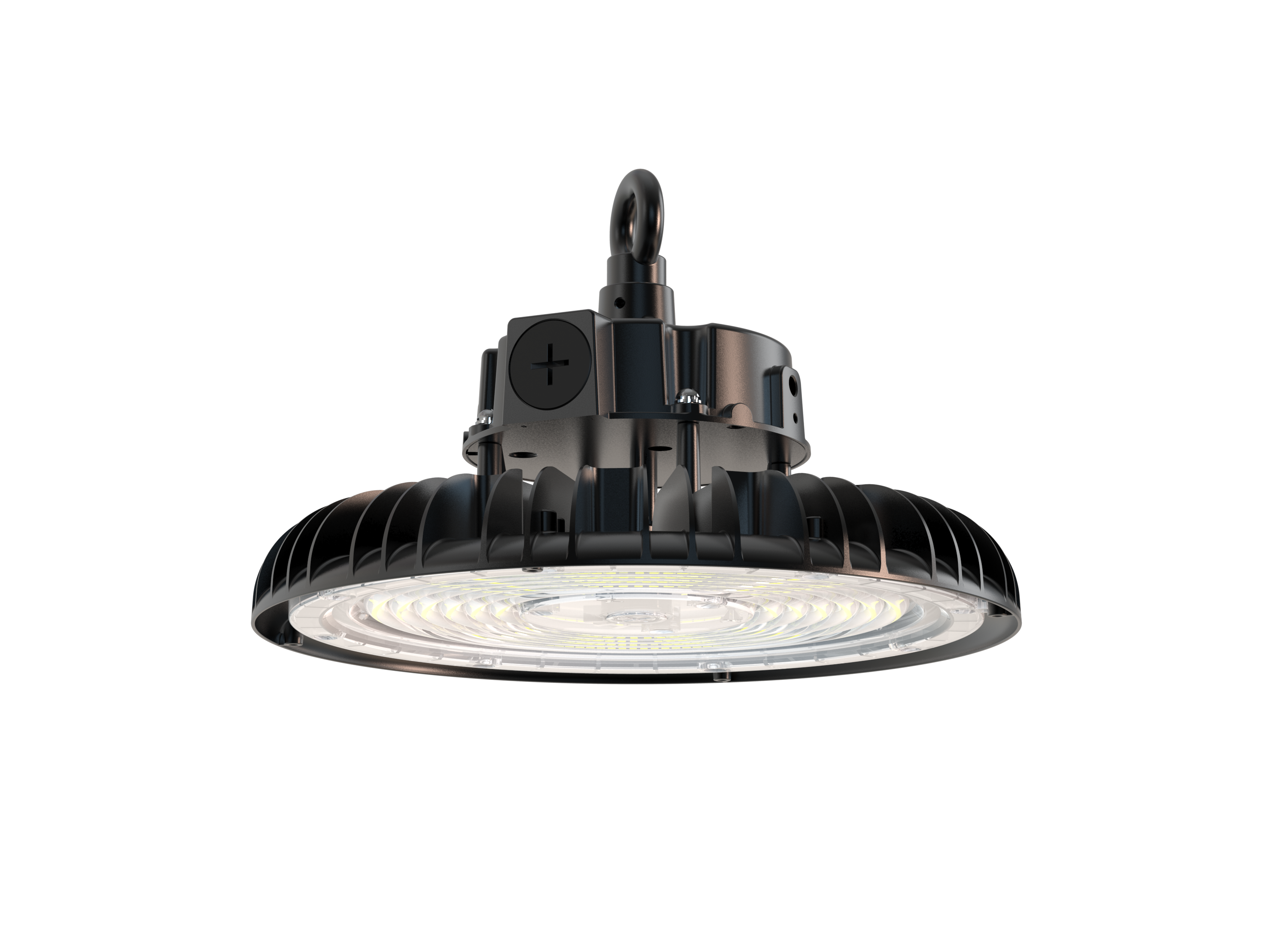

PRO Series 150/200/240W LED UFO High Bay w/ Q-Base, 3CCT Selectable, 120-277V, Black Finish by ASD

$96.00

  • DESIGN - LED UFO HIGH BAY with Q-base PRO Series is extremely efficient with up to 170lm/W output. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provides many years of use. It can operate in temperatures ranging from -40 to 140°F. It is designed to operate on 120-277V or 277-480V circuits with a 0-10V dimmable driver. Surge protection 6kV protects the fixture from voltage spikes and current surges.

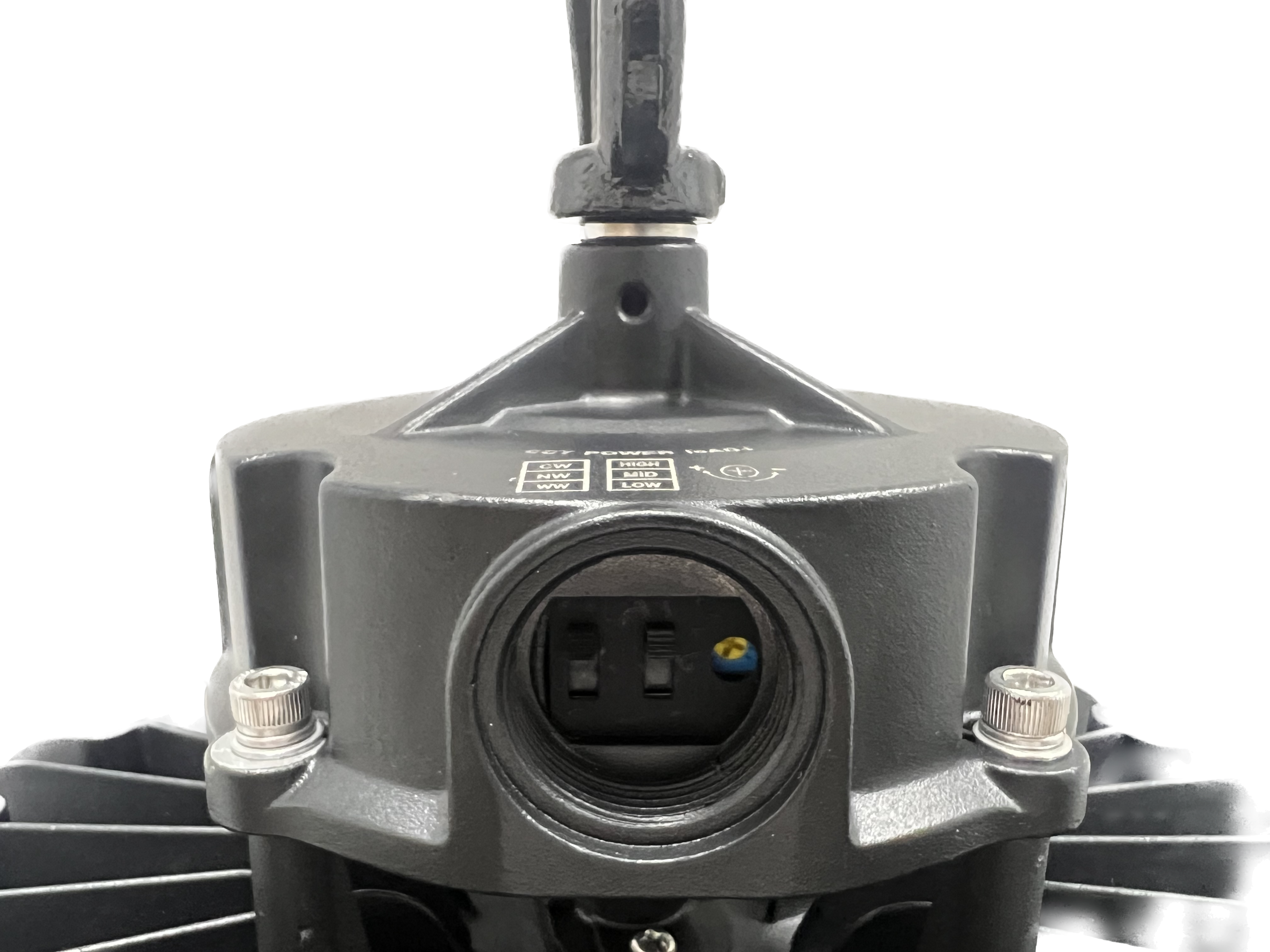

  • COLOR AND POWER SELECTABLE - You can choose either a 3,500K neutral white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.
  • INSTALLATION - This fixture has three different mounting options: suspended, surface, and pendant. It comes with 4ft cord.
  • ADVANTAGES - With a calculated lifespan up to 143,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

Brand :
ASD
Model Number :
ASD-UHB2A-PRO-240-BK
Type :
UFO
Lumens :
Selectable 23,397-40,182 lm
Watts :
Selectable 150/200/240W
Voltage :
120-277V
Color Temperature :
Selectable 3000/4000/5000K
CRI :
70+
Optics :
Wide
Mounting :
Pendant, Suspended
Environment :
Wet Location
Temperature :
High Ambient Temp
Dimmable :
0-10V
Ratings :
DLC Premium, IP69, Wet
Safety Certification :
UL Listed
Dimensions (L x W x H) :
12.63" x 12.63" x 6.75"
Weight :
7.1
