Home High and Low Bays UHB3 Q-Base Power Selectable High Voltage UFO High Bay by ASD
Specification Sheet
Dimensions

UHB3 Q-Base Power Selectable High Voltage UFO High Bay by ASD

From : $150.42

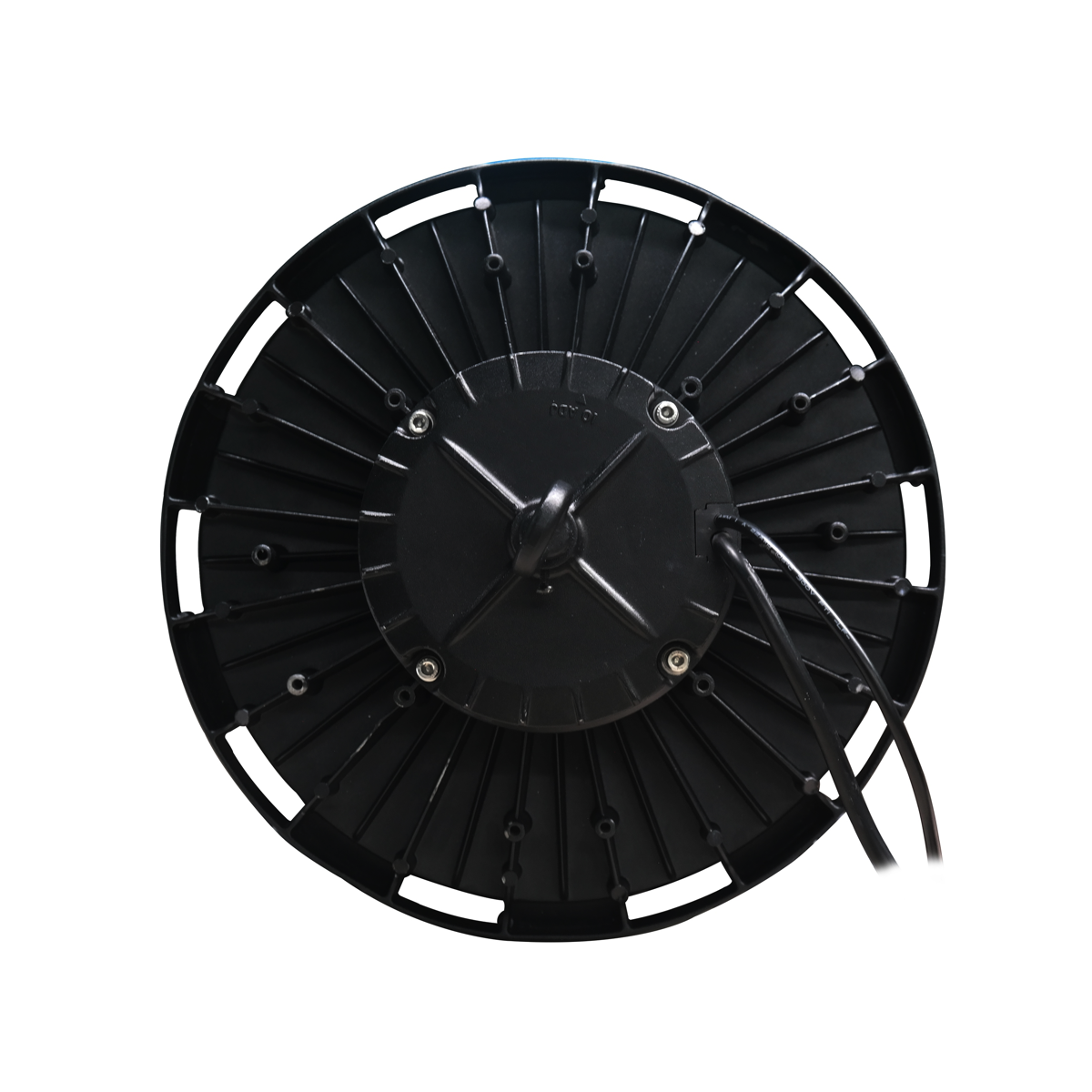

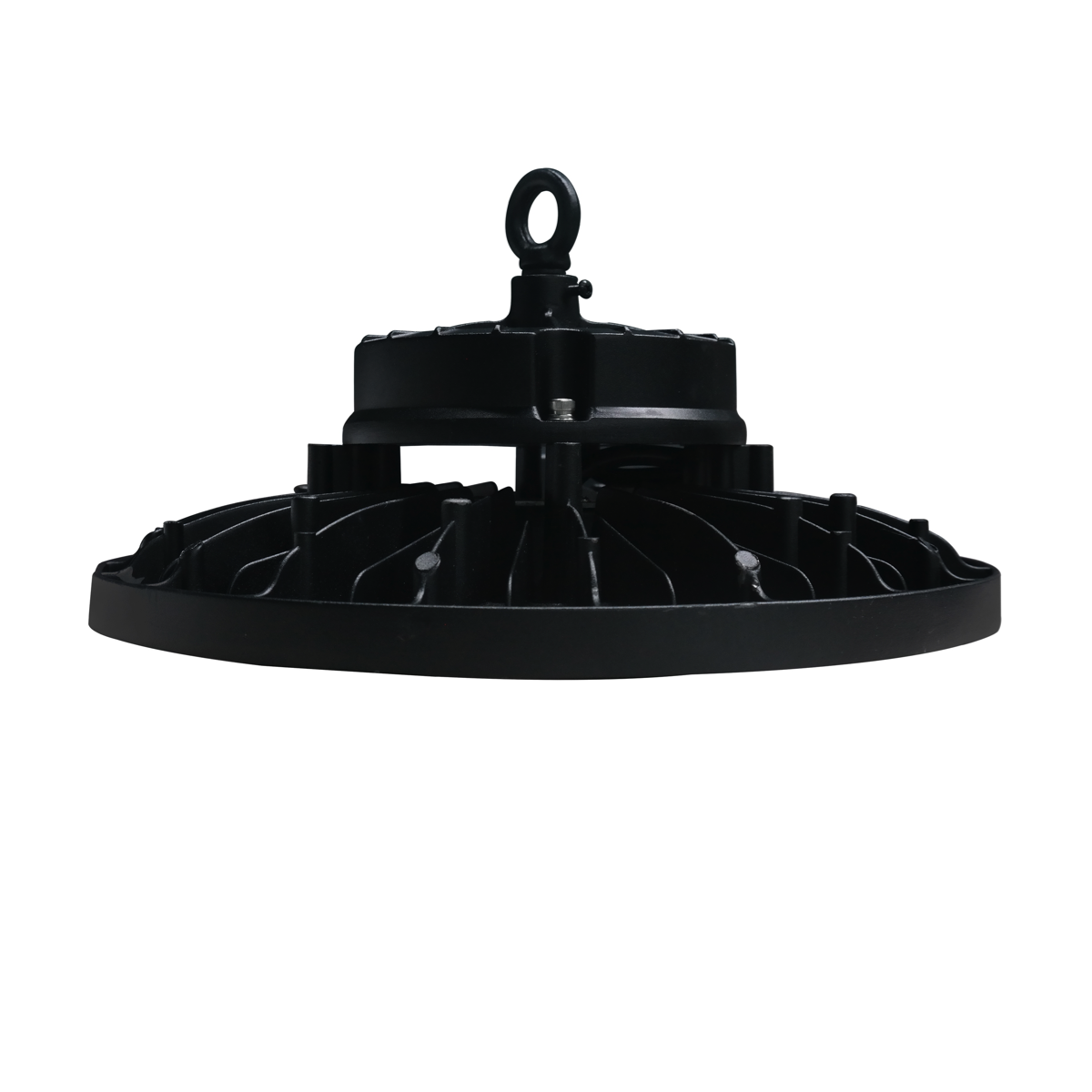

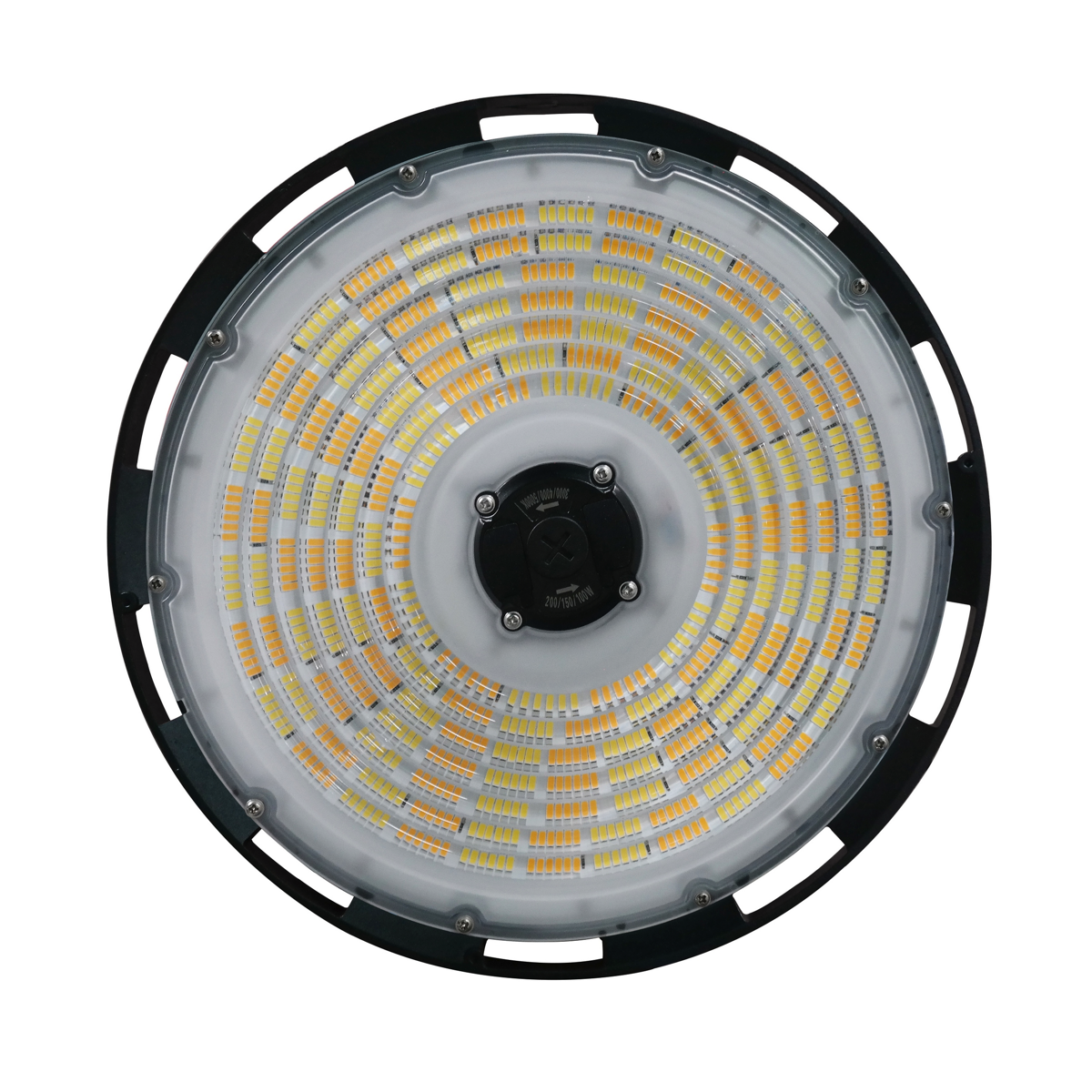

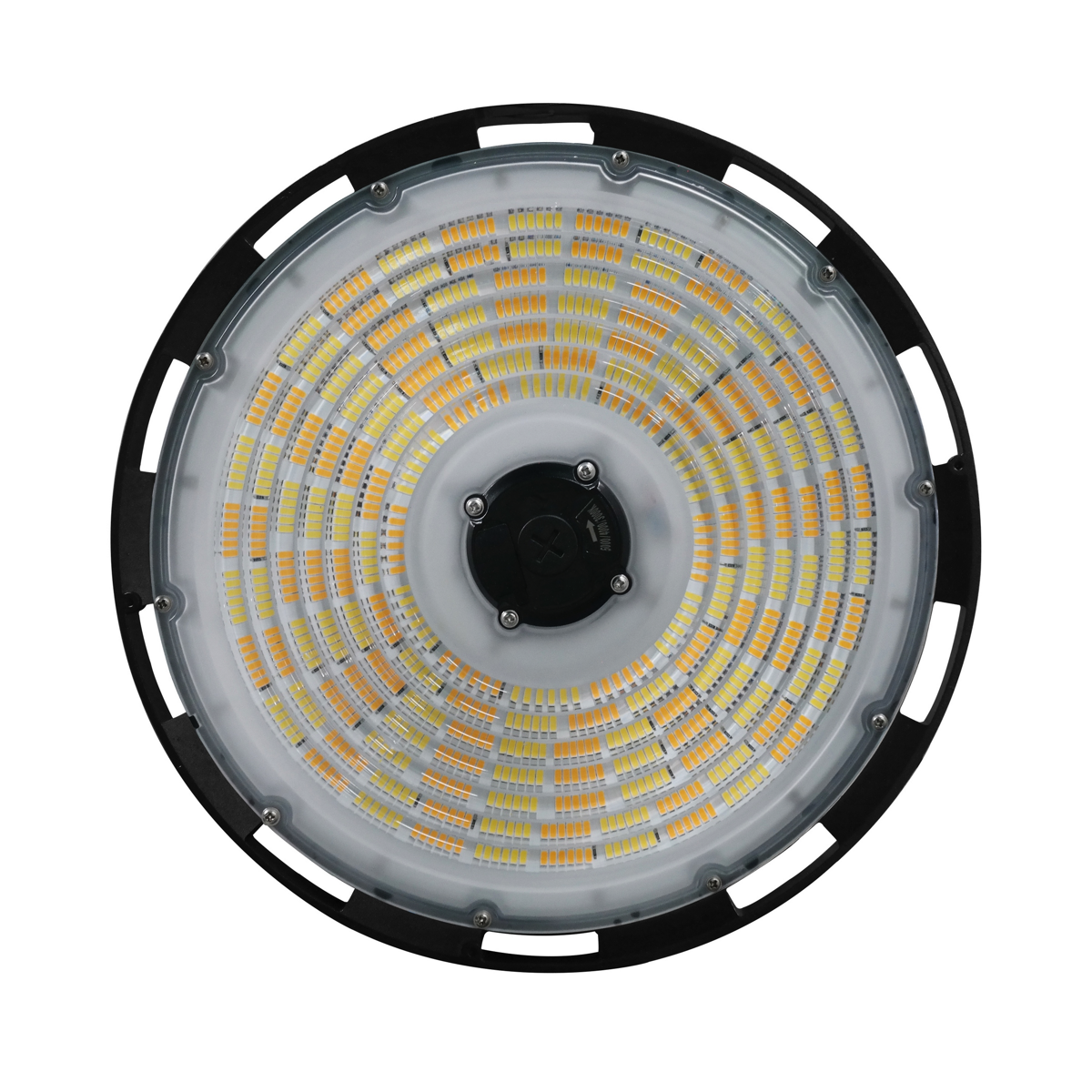

DESIGN. LED UFO HIGH BAY Q-BASE has a built-in motion sensor base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It can operate in temperatures ranging from -40 to 149°F. It runs on 277-480V circuits with a 0-10V dimmable driver.

COLOR AND POWER SELECTABLE. You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.

IP69K rating provides protection against ingress of dust and high temperature, high pressure water.

SURGE PROTECTION 6kV protects the fixture from voltage spikes and current surges.

INSTALLATION. This fixture has three different mounting options: suspended, surface, and pendant. It comes with 4 ft cord. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications.

ADVANTAGES. With calculated lifespan up to 155,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!



width=  Note: Product has been discontinued by manufacturer. Available while supplies last.


Power :
Color Temperature :
Sensor :
Remote Control for Sensor :
Emergency Battery Backup :
Remote Control for Battery Backup :
Mounting Accessories - Hook :
Mounting Accessories - Pendant Mount Bracket :
Mounting Accessories - Surface Mount Bracket :
Brand :
ASD
Model Number :
ASD-UHB3HV
Type :
UFO
Lumens :
22,000-70,000 lm
Watts :
150W-500W, Selectable 300/400/500W
Voltage :
277-480V
Color Temperature :
Selectable 3000K-5000K, 5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Dry Location, IP65, Wet Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
IP65, IP69, Wet Location
Safety Certification :
DLC 5.1 Premium, UL
Weight :
