Home High and Low Bays UHB5-PRO Q-Base Color & Power Selectable UFO High Bay by ASD
Specification Sheet

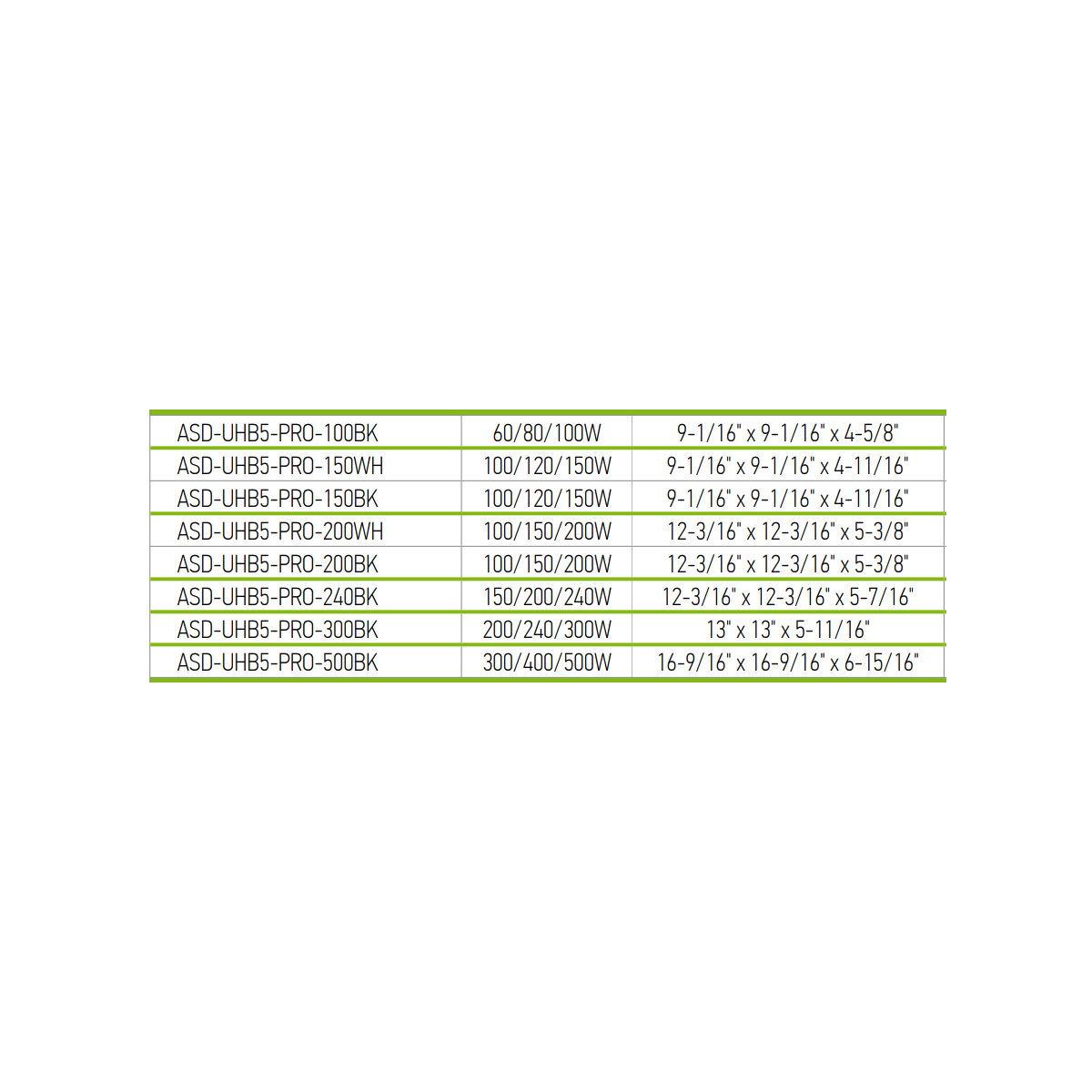

Dimensions

UHB5-PRO Q-Base Color & Power Selectable UFO High Bay by ASD

From : $93.00

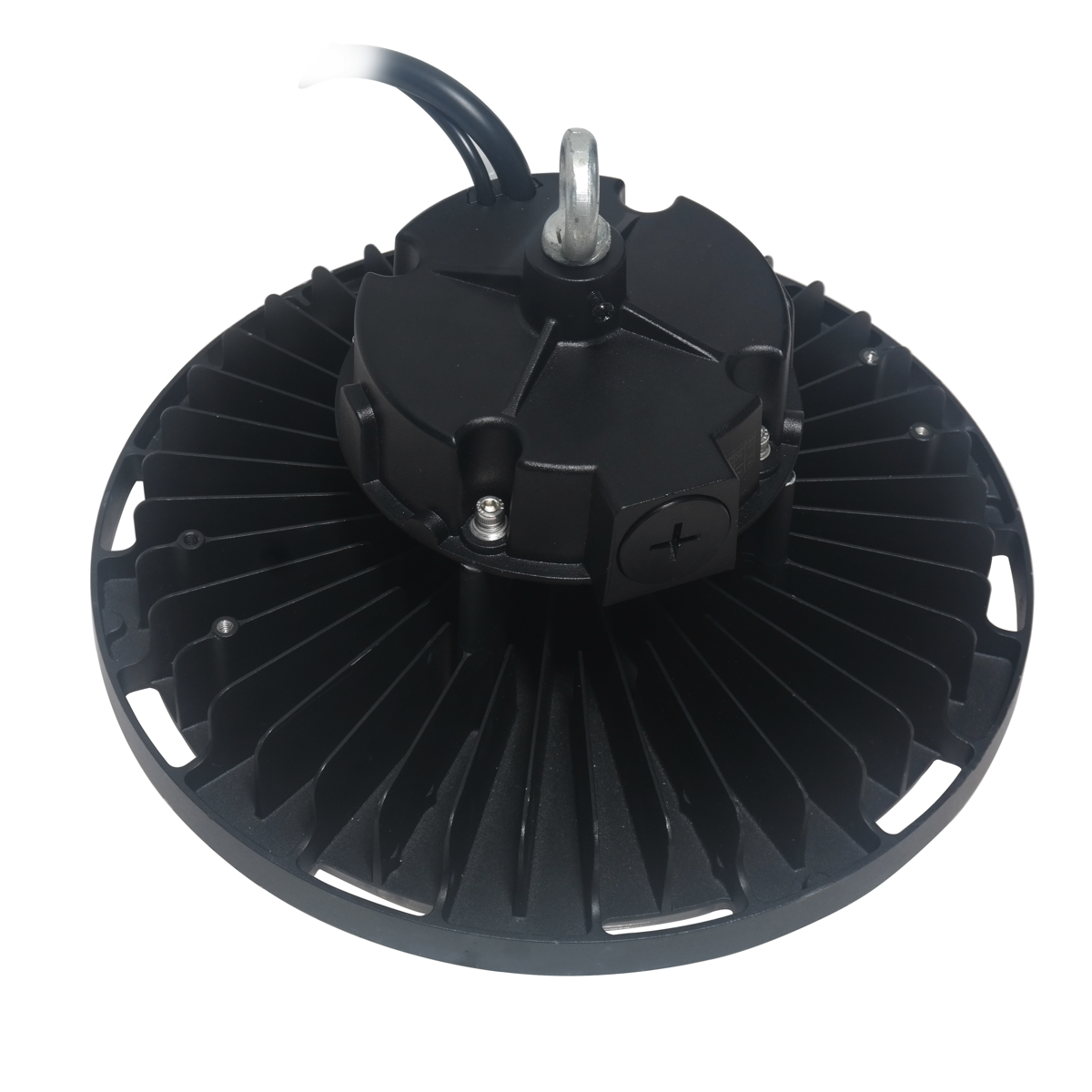

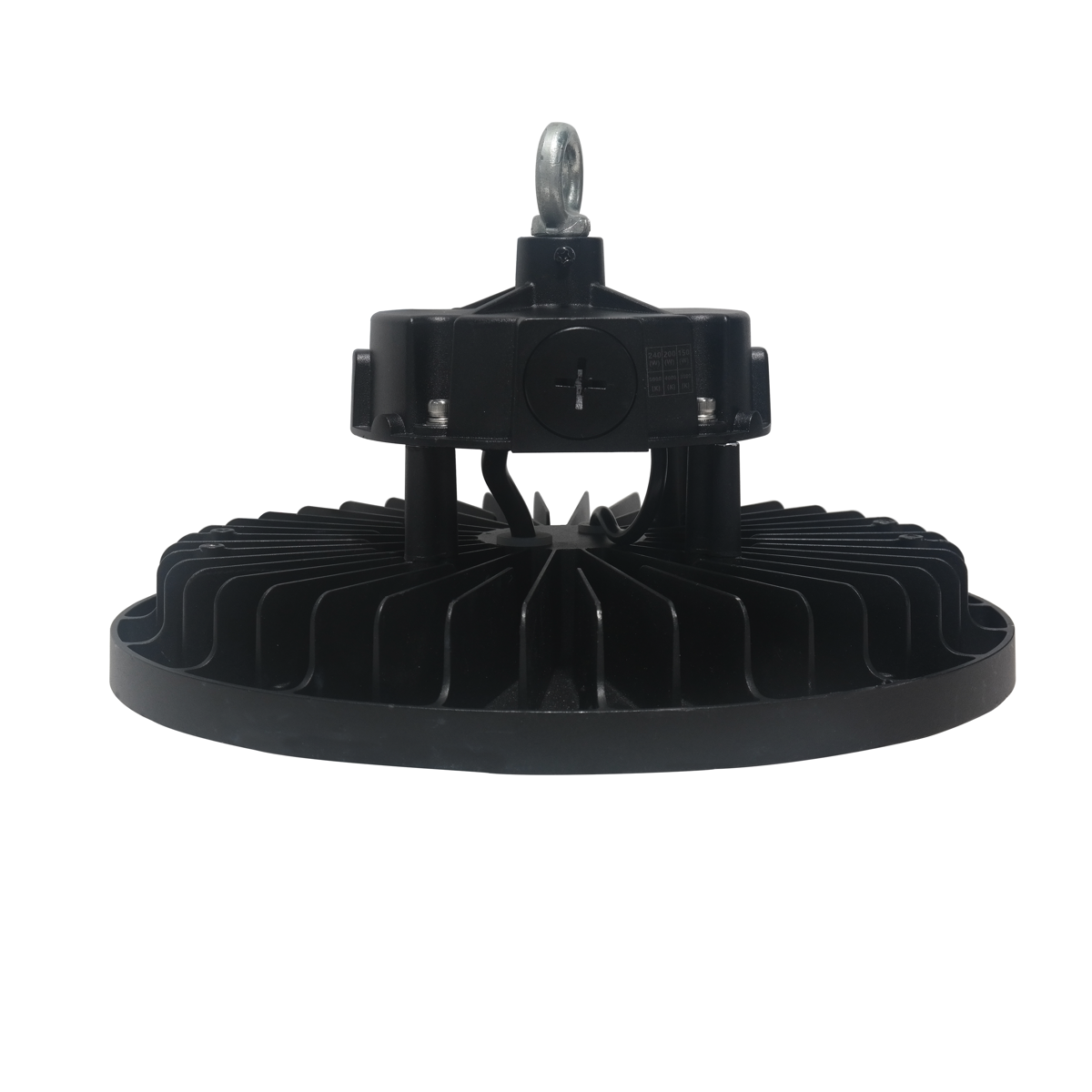

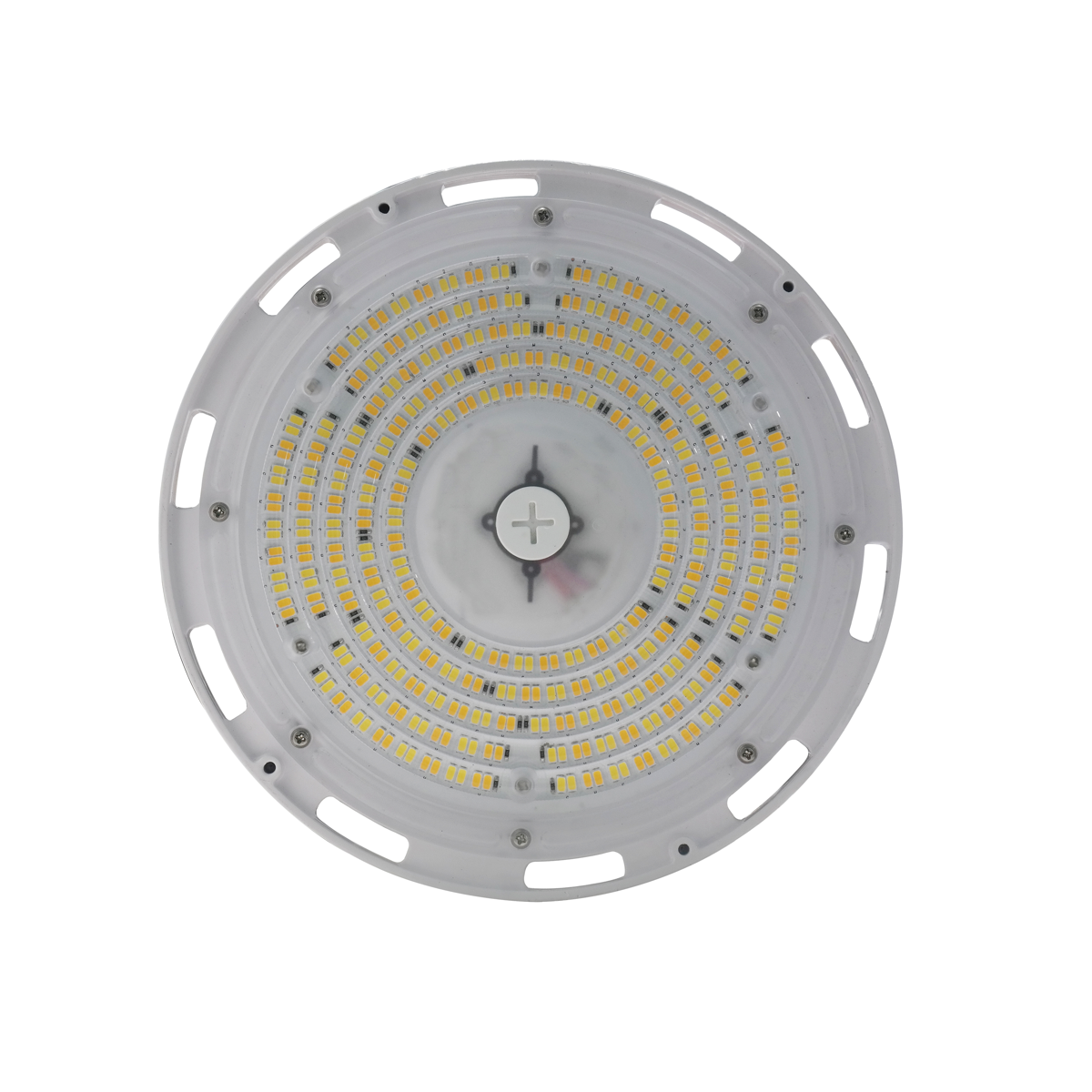

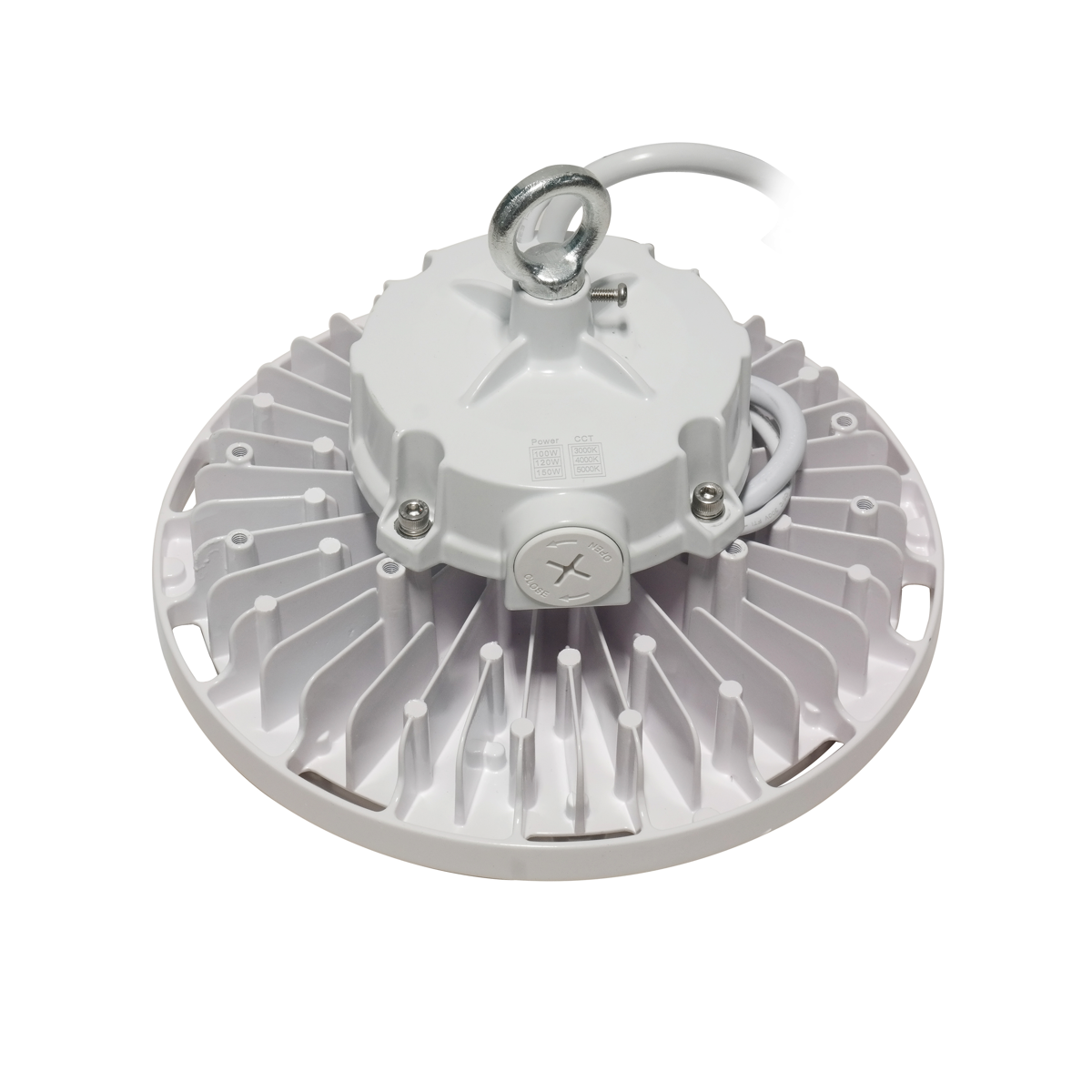

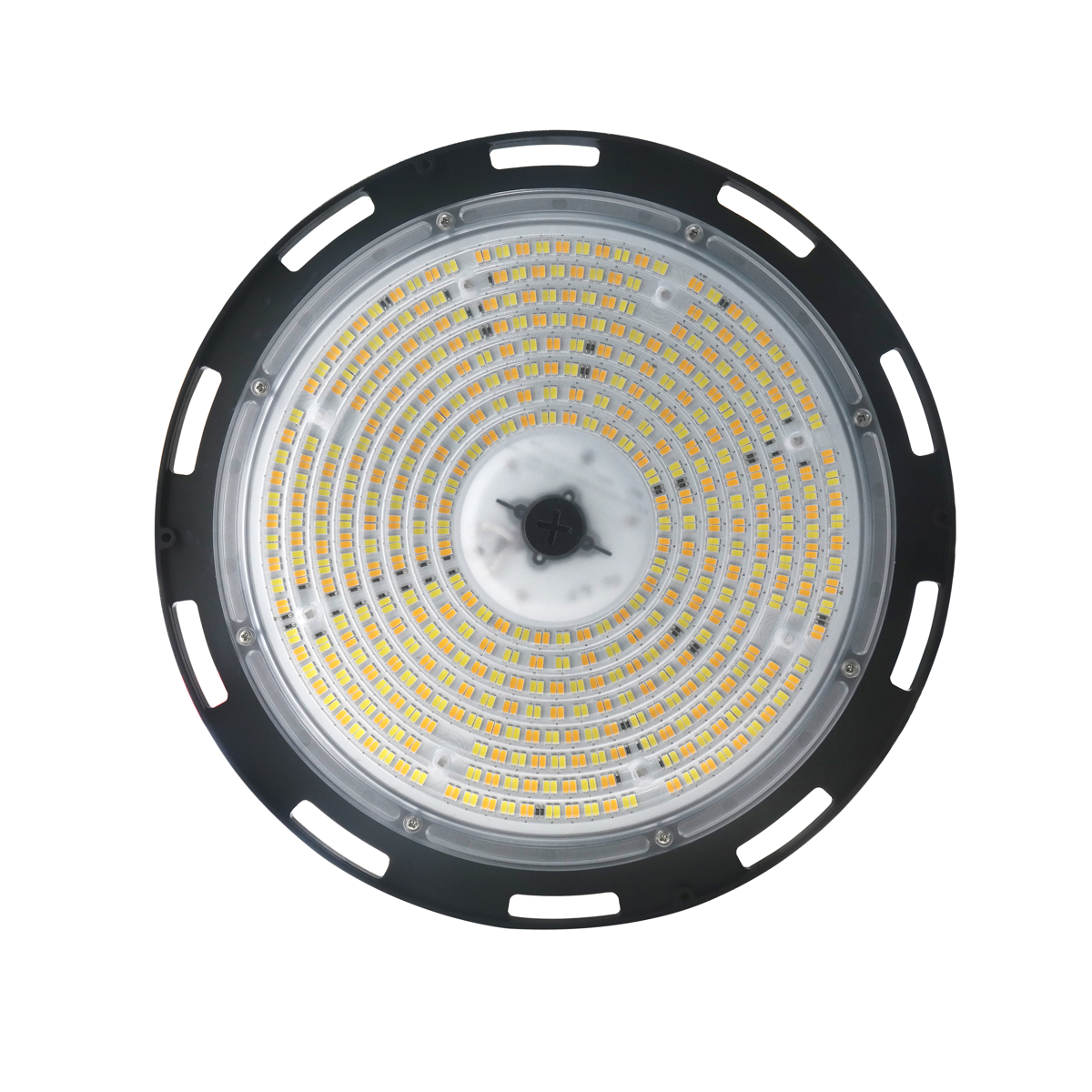

DESIGN. LED UFO HIGH BAY WITH Q-BASE is extremely efficient with a 170lm/W output. The built-in motion sensor base allows you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It can operate in temperatures ranging from -40 to 140°F. With 6kV surge protection, it runs on 120-277V circuits with a 0-10V dimmable driver.

IP69K - rating provides protection against ingress of dust and high temperature, high pressure water.

COLOR AND POWER SELECTABLE. You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.

INSTALLATION. This fixture has three different mounting options: suspended, surface, and pendant. It comes with 4 ft cord. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications.

ADVANTAGES. With calculated lifespan up to 141,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!




Power :
Finish :
Sensor :
Remote Control for Sensor :
Emergency Battery Backup :
Remote Control for Battery Backup :
Mounting Accessories - Hook :
Mounting Accessories - Pendant Mount Bracket :
Mounting Accessories - Surface Mount Bracket :
Lens :
Reflector :
Brand :
ASD
Model Number :
ASD-UHB5-PRO
Type :
UFO
Lumens :
16,000-82,000 lm
Watts :
Selectable 60W-500W
Voltage :
120-277V
Color Temperature :
Selectable 3000K/4000K/5000K
CRI :
70+
Optics :
Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Dry Location, IP65, Wet Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
IP65, IP69, Wet Location
Safety Certification :
DLC 5.1 Premium, UL
Weight :
