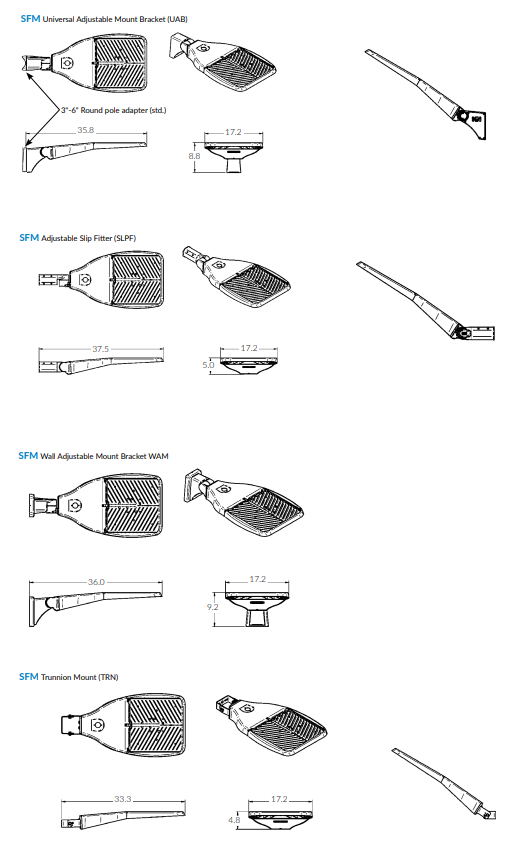

Dimensions
Product Brochure
Controls
Guards

Skyline Series Medium LED Flood Light by ILP

From : $815.00

The sleek aesthetic of the Skyline Series makes it perfectly suited for a wide variety of specification or commercial lighting applications. Designed for both new construction and retrofit, the Skyline provides a one-for-one solution for replacing legacy metal halide or high-pressure sodium luminaires while providing industry leading uniformity and application targeted performance.

  • Specification Grade die-cast aluminum housing
  • Bronze polyester powder coat finish (standard)
  • High Performance Medium, Wide, Forward, & Very Wide optic distributions
  • 5 Different Optional Mounting Methods (3G Rated1)
  • Single Fastener hinged door driver access
  • 120–277V Universal Voltage or 347–480V High Voltage
  • 0–10V Dimmable Driver (std.)
  • PIR Occupancy, Photocell, & Bi-Level Dimming Sensors Available
  • 3-Pin & 7-Pin ANSI C136.41 Control Receptacle Options
  • Wireless control integrated luminaire
  • 3000K, 4000K & 5000K CCT
  • >70 Color Rendering Index (CRI)
  • Calculated L80 >100,000 hrs @ 25°C per TM-21-11
  • IP66 Rated Luminaire
  • 5 Year Warranty; 10 Year Optional Warranty
  • ETL Listed for Wet Locations
  • DesignLights Consortium® Premium Qualified Luminaire




Lumens :
Voltage :
CCT :
Distribution :
Mounting Options :
Finish :
Control Options :
Surge Protector :
Fuse :
Brand :
ILP
Model Number :
SFM-24L, SFM-30L, SFM-36L, SFM-42L, SFM-50L
Shape :
Square
Distribution :
Medium Flood, Wide Flood, Very Wide Flood
Mounting :
Pole, Slip Fitter, Trunnion, Wall
Lumens :
24,000 lm - 50,000 lm
Watts :
165 - 350W
Voltage :
120–277V, 347-480V
Color Temperature :
3000K, 4000K, 5000K
CRI :
70+
Finish :
Black, Bronze, Silver, White
Dimmable :
Yes
Ratings :
DarkSky, DLC Premium, IP66, Title 24, Wet Location
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
17.2" x 35.8" x 8.8"
Weight :
22
