Home Constant Voltage SMT300W Smart Transformer Series Magnetic Non Dimmable by EMCOD
Specification Sheet
Installation Instructions

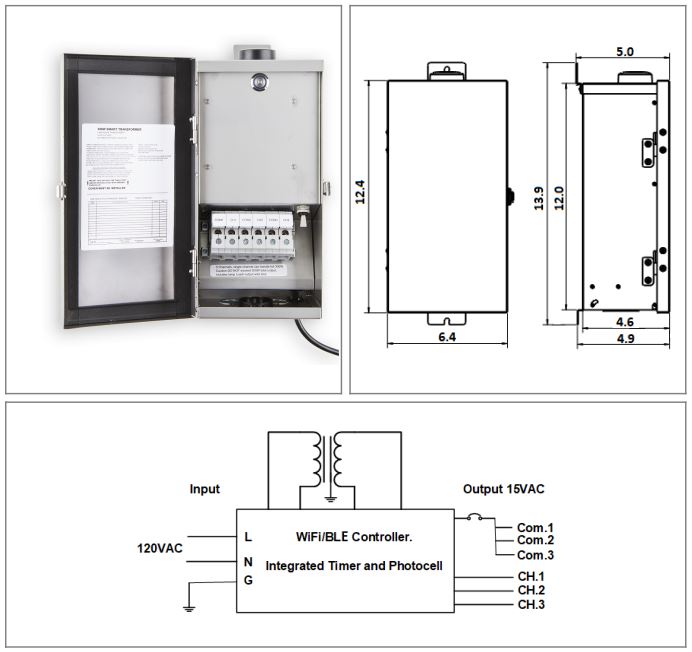

Dimensions

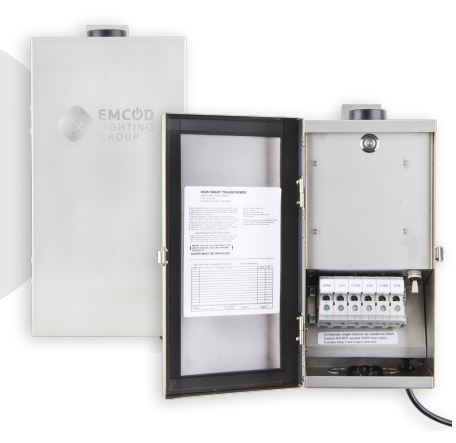

SMT300W Smart Transformer Series Magnetic Non Dimmable by EMCOD

$443.33

Wi-Fi, Bluetooth controlled, Integrated short circuit and overload protections. Three independent zone controlled channels with EMCOD APP, Alexa , Google Voice, IOS and Android Compatible. Scheduling Timer Control , Sunset and Sunrise digital photocell Independent for each channel. Clock Timer On/Off option. Digital Power Meter Determines System Power consumption. 304 Stainless Steel with locking hinge door for indoor and outdoor applications. Operating temperature -20C to +40C.

Transformer

  • Non Dimmable
  • Temperature class B(130°C)
  • Input leads: Line cord
  • Output leads: Terminal Block
  • Magnetic manually reset secondary breaker 20A per circuit

Housing

  • The actual transformer 300W is encapsulated in the enclosure
  • The enclosure is Stainless Steel, NEMA 3R rated
  • Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded




SKU :
SMT300W
Brand :
Emcod
Max Wattage :
300W
Input Voltage Range :
120V
Output Voltage :
15V
Current Range :
2500-6700mA
Default Current :
2500mA
Dimmable :
Non-Dimming
Dimming Range :
Not Available
Weight :
15.75
Dimensions (L x W x H) :
6.40" x 4.90" x 15.75"
