Home Constant Current TRC-150S105DT 150W 1050mA Constant Current Dimmable Switch Mode LED Driver in Aluminum Housing by Thomas Research
Specification Sheet

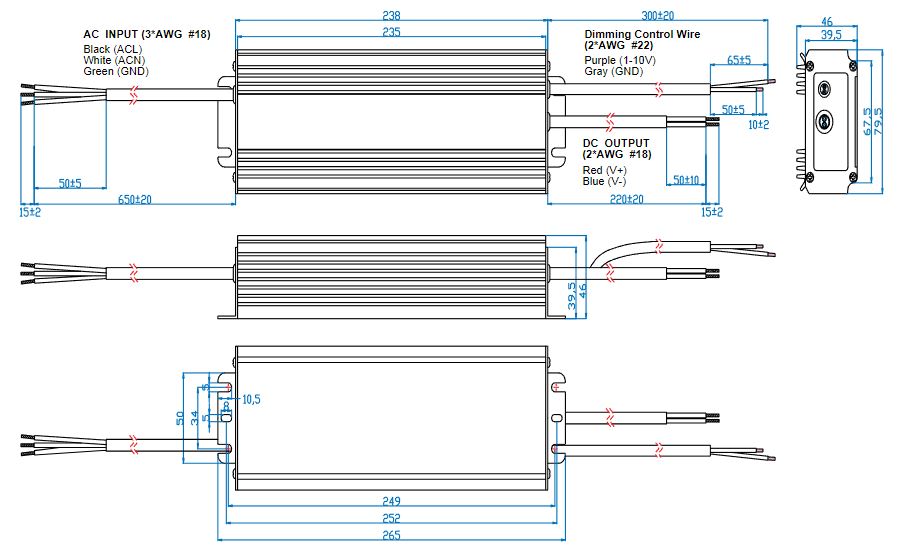

Dimensions

TRC-150S105DT 150W 1050mA Constant Current Dimmable Switch Mode LED Driver in Aluminum Housing by Thomas Research

$129.99


The TRC-150W Dimmable Series are Constant Current Switch Mode LED Drivers in Aluminum Housing.

  • Input Voltage: 100-277 Vac Nom.
  • UL Dry & Damp Location Rated
  • IP67
  • High Power Factor with Active Correction
  • UL8750



  Note: Product has been discontinued by the manufacturer, but a replacement is available. Please contact us for assistance finding a suitable replacement.


SKU :
TRC-150S105DT
Brand :
Thomas Research Products
Max Wattage :
150W
Input Voltage Range :
120-277V
Output Voltage :
107-142V
Current Range :
1050mA
Default Current :
1050mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
10.43" x 3.13" x 1.81"
