Home Floods Viewpoint Series Medium LED Flood Light by ILP
Specification Sheet

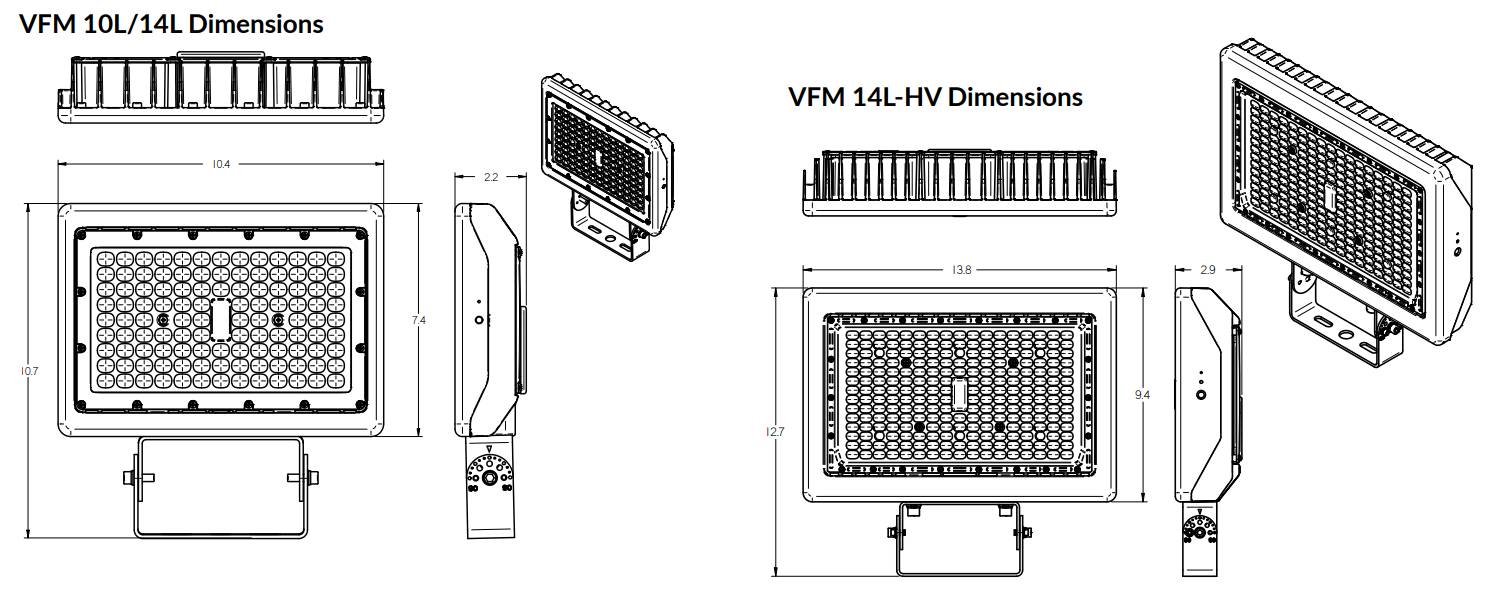

Dimensions
Additional Controls

Viewpoint Series Medium LED Flood Light by ILP

From : $250.00

With its sleek, low-profile design, the Viewpoint Flood Series discretely enhances and blends into site surroundings, while providing industry-leading features and performance. Upgrading your HID lights to the Viewpoint Flood Series allows for up to 85% energy savings, making it the clear choice for budget-friendly flood lights that meet demanding quality standards.

  • Low profile die-cast aluminum housing
  • Bronze polyester powder coat finish
  • Adjustable Knuckle, Trunnion, Slip fitter, Pole, and Tenon Adapter mounting options
  • 3000K, 4000K & 5000K CCT Selectable via Integral window selector
  • Embedded Electronic photocell with override switch
  • 120–277V Universal Voltage
  • 0–10V Dimmable Driver
  • 6kV Surge protection
  • >70 Color Rendering Index (CRI)
  • Calculated L70 >100,000 hrs @ 25°C per TM-21-11
  • IP66 Rated Luminaire
  • 5 Year Warranty
  • ETL Listed for Wet Locations, suitable for ground mounting
  • DesignLights Consortium® Premium Qualified Luminaire




Lumens :
Voltage :
CCT :
Distribution :
Mounting Options :
Finish :
Controls :
Cord Options :
Surge Protector :
Fuse :
Accessories :
Brand :
ILP
Model Number :
VFM-10L-U-CCTS-M, VFM-10L-U-CCTS-W, VFM-14L-U-CCTS-M, VFM-14L-U-CCTS-W
Shape :
Rectangular
Distribution :
Medium Flood, Wide Flood
Mounting :
1/2" Knuckle, Pole, Slip Fitter, Surface, Trunnion, Wall
Lumens :
10,000 lm - 14,000 lm
Watts :
57 - 107W
Voltage :
120–277V, 277-480V
Color Temperature :
3000K, 4000K, 5000K, Color Selectable
CRI :
70+
Finish :
Black, Bronze, Silver, White
Dimmable :
Yes
Ratings :
DLC Premium, IP66, Wet Location
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
UNIV: 7.4" x 10.4" x 2.2"
HV: 12.7" x 13.8" x 2.9"
Weight :
6.2
