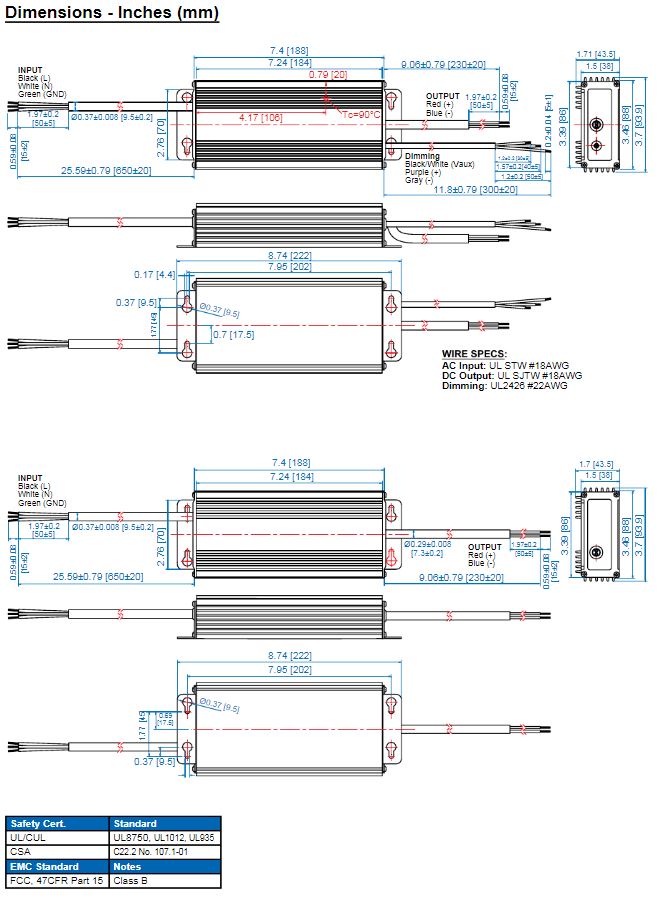

Dimensions

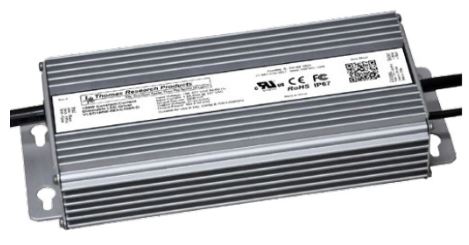

VLED150W-258-C0580-X-HV 150W 580mA Constant Current with Isolation Switch Mode LED Driver by Thomas Research

$129.99


The VLED-150W-HV Series– Fixed Output and Dimmable are Constant Current, with Isolation Switch Mode LED Drivers in Aluminum Housing.

  • Input Voltage: 347-480 Vac Nom.
  • UL Dry & Damp Location Rated
  • IP67
  • High Power Factor
  • UL8750, EN61347
  • UL Type HL, for use in a Class 1, Division 2 hazardous locations



  Note: Product has been discontinued by the manufacturer, but a replacement is available. Please contact us for assistance finding a suitable replacement.


SKU :
VLED150W-258-C0580-X-HV
Brand :
Thomas Research Products
Max Wattage :
150W
Input Voltage Range :
347-480V
Output Voltage :
129-258V
Current Range :
580mA
Default Current :
580mA
Dimmable :
Non-Dimming
Dimming Range :
Not Available
Dimensions (L x W x H) :
8.74" x 3.70" x 1.71"
