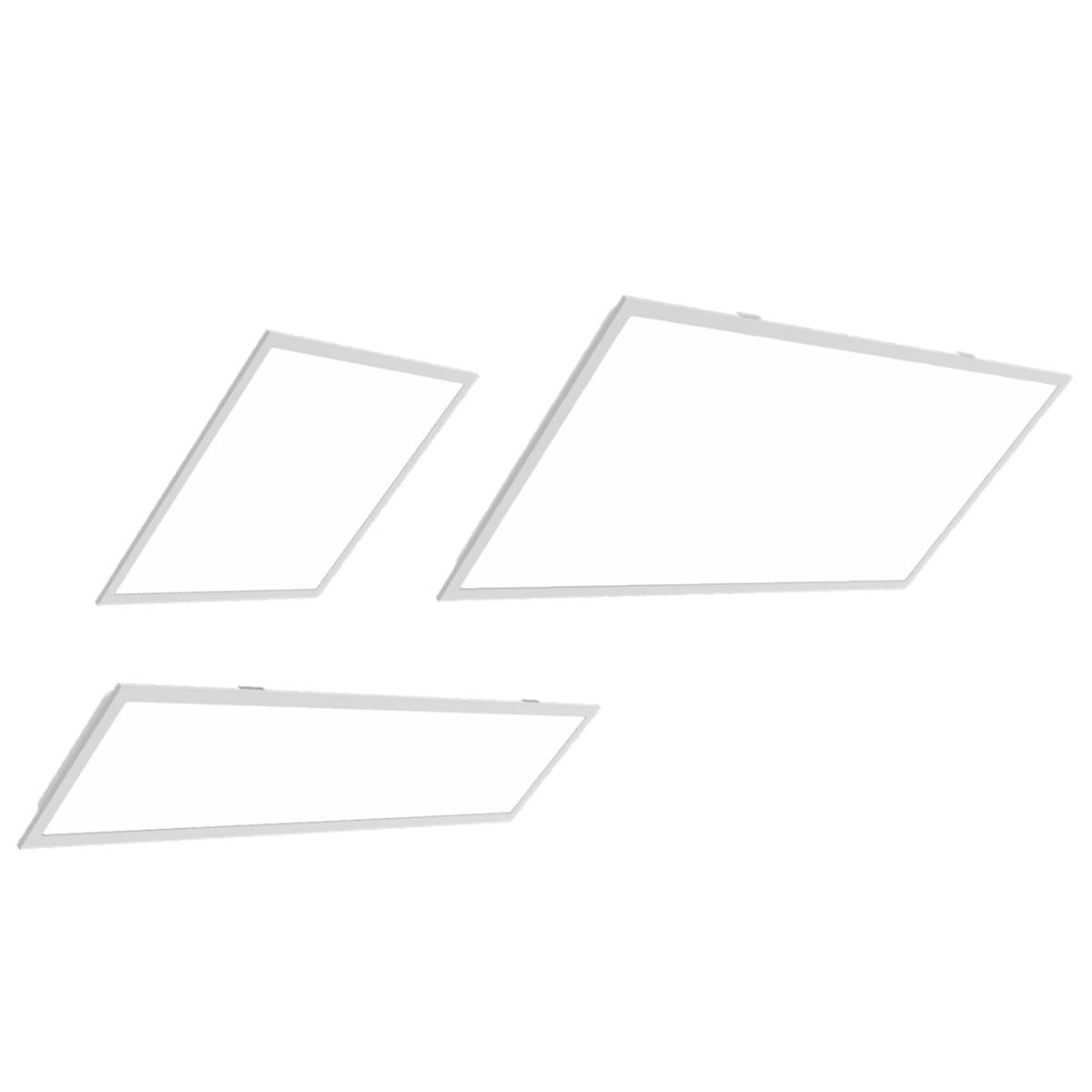

VPAN SELECT Lumen and CCT Selectable Back-lit Flat Panel by ILP

VPAN by ILP is a dependable and versatile Back-Lit Panel that provides an affordable option for everyday troffer solutions. Designed with micro-optics that produce smooth and uniform low-glare illumination for visual comfort. Its built-in tool-less field selectable lumen output technology offers three lumen options providing versatility when needed most. With a depth under 2″, VPAN’s robust die-formed housing easily installs in shallow plenums with room to spare.

• Low Glare Smooth Uniform Illumination Back-Lit Panel
• Robust Die-Formed Housing with White Post-Paint Finish
• High Transmission PMMA Frosted lens
• Grid, Flange, Surface & Suspended Mounting Options
• 1×4, 2×2 & 2×4 Sizes
• Field Selectable or Factory Set Lumen Outputs – 2,700 to 7,000 Delivered Lumen Range
• 3500K & 4000K/5000K CCTs
• Enlarged Driver Box for Easy Installation
• 0‒10V Dimmable Driver (100%‒10%)
• 120‒277V Universal Voltage
• 5-Year Warranty

VPAN14-22L/27L/33L-U-CCTS, VPAN22-27L/33L/44L-U-CCTS, VPAN24-33L/44L/55L-U-CCTS
