OWL Value Select Lumen & CCT Selectable Large Open Face Wall Pack by ILP

From : $218.33

With high-performance distributions and an economical design, the OW series is the perfect choice to fulfill your application needs while saving you energy — and money. It provides versatility at your fingertips with both lumen and CCT selectable standard features, offering different standard configurations. The prismatic lens that comes standard with the luminaire helps to spread light while softening it to the eye, enhancing safety and security while improving site aesthetics.

  • Rugged die-cast aluminum housing
  • Bronze polyester powder coat finish
  • Non-Cutoff Type IV Distribution
  • Optional Hood for semi-cutoff Type IV distribution
  • Isolated optical compartment with tempered prismatic glass lens and silicone gaskets
  • 3000K, 4000K & 5000K CCT Selectable via Integral selector
  • 120-277V Universal Voltage or 277-480V High Voltage
  • 0-10V Dimmable Driver (std.)
  • IP65 Rated Luminaire
  • 5-Year Warranty


Lumens :
Driver :
Finish :
Surge Protector :
Fuse :
Battery Backup :
Controls :
Glare Shield :
Brand :
ILP
Model Number :
OWL-5L/8L/10L | OWL-10L/13L/16L
Style :
Open Face
Optics :
Type IV
Mounting :
Fixed Wall Mount
Watts :
38-119W
Lumens :
5,202 - 16,033 lm
Voltage :
120-277V, 277-480V
Color Temperature :
3000K, 4000K, 5000K, Selectable
CRI :
70+
Finish :
Bronze
Dimmable :
Yes
Ratings :
IP65
Certifications :
ETL Listed, RoHS Compliant, DLC Premium

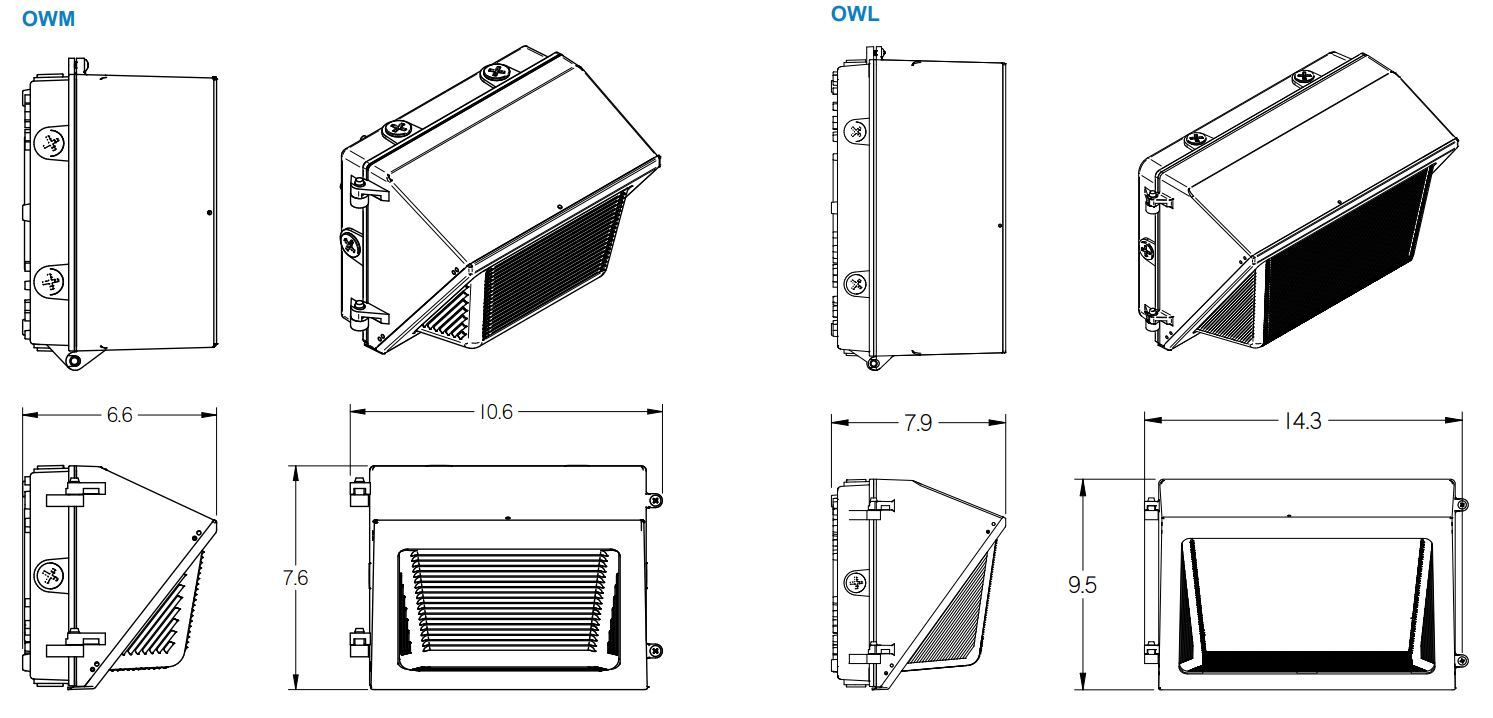

Dimensions (L x W x H) :
14.30" x 7.90" x 9.50"
