VST Fixed Lumen and CCT Selectable Volumetric Selectable Troffer by ILP

From : $75.00


The VST, Volumetric Selectable Troffer, seamlessly integrates premium features with budget-friendly affordability. With Field Selectable Lumen and CCT capabilities, it offers unmatched adaptability. Enhance its performance further by pairing it with a variety of control options, unlocking superior energy savings and advanced grouping features. Emphasizing a desired shallow profile, diverse sizing, and mounting options, the VST ensures an energy-efficient design. Fully selectable and embodying a sleek form, the VST stands out as the top solution for troffer applications.

  • Highly Versatile Volumetric Selectable Troffer
  • 2.1” Depth for Shallow Plenum Applications
  • Matte White Post Paint Finish for Uniform Indirect Illumination
  • Shallow Depth Design for Low Plenum Applications
  • Grid, Flange, & Surface Mounting Options

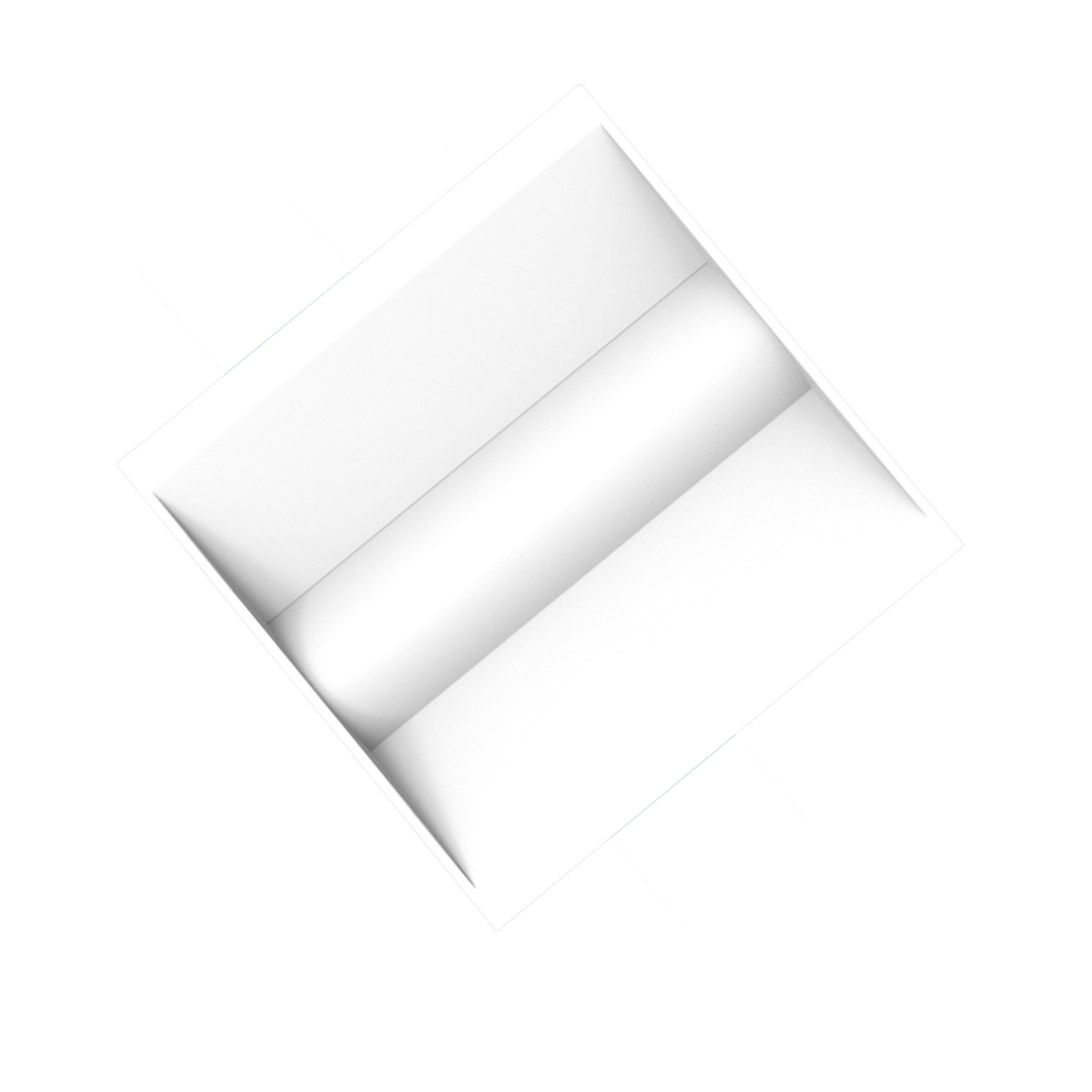

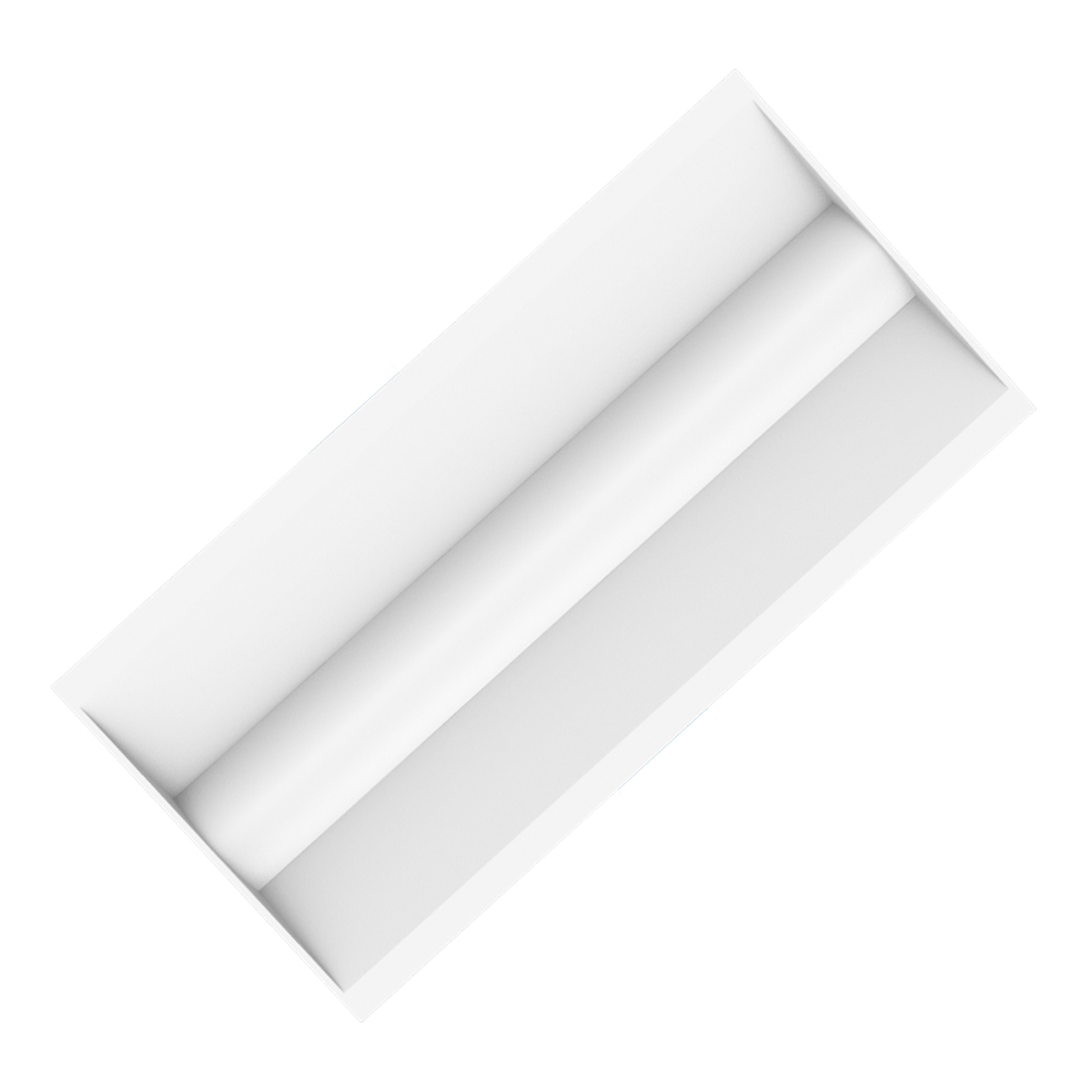

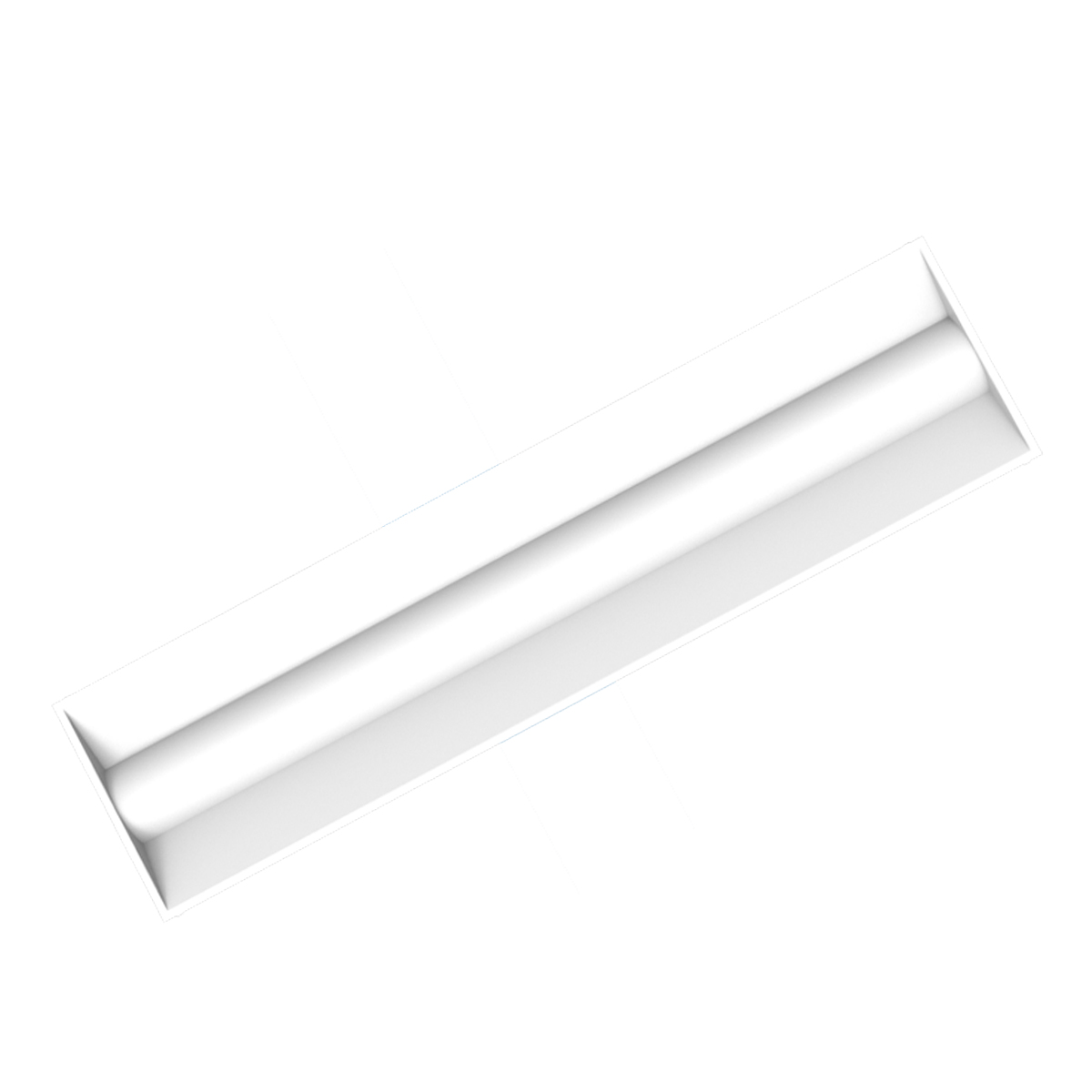

  • 1'x4', 2'x2', and 2'x4' Sizes
  • Factory Set Lumen Output - 2,600-7,400 Lumens Delivered Lumen Range
  • Field Selectable CCT - 3500K, 4000K, & 5000K CCT
  • 5-Year Warranty (std); 10 Year Warranty Optional


Size :
Lumens :
Emergency Backup :
WHIP Cable :
Switch :
Surface Mount Kit :
Flange Kit :
Brand :
ILP
Model Number :
VST14-xxL-U-CCTS, VST22-xxL-U-CCTS, VST24-xxL-U-CCTS
Type :
Center Basket
Size :
1x4, 2x2, 2x4
Lumens :
2,594-7,379 lm
Watts :
19-55W
Color Temperature :
3500K, 4000K, 5000K, Color Selectable
CRI :
80+
Voltage :
120-277V
Driver :
0-10V
Dimmable :
Yes
Environment :
Damp Location, IC Rated, Indoor
Ratings :
DLC Premium
Safety Certification :
ETL Listed
