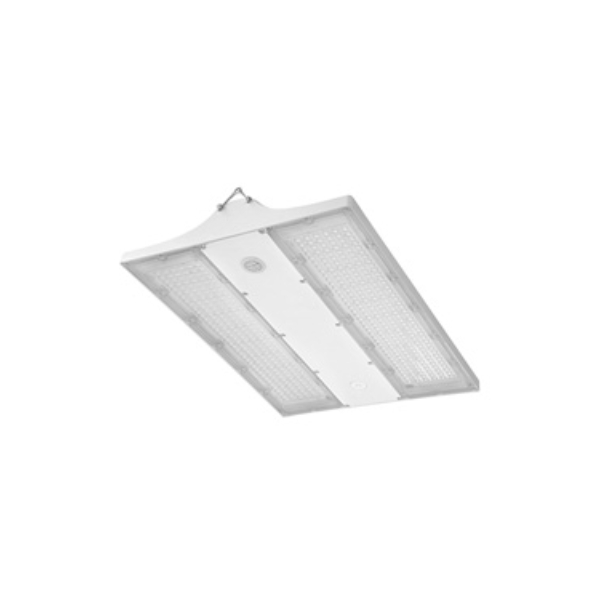

WFS-ST 100/130/160W NSF-Rated Linear High Bay with Q-base, 120-277V, 3CCT Selectable with 10' Cord by ASD

$187.50

The ASD-WFS-ST-160 is an NSF-rated linear LED high bay featuring selectable 100W/130W/160W output and selectable 3500K/4000K/5000K color temperatures. Operating on 120–277V with 0–10V dimming, it delivers up to 26,246 lumens with a CRI of 80+. The fixture features a corrosion-resistant aluminum housing, polycarbonate lens, integrated Q-base for optional microwave or PIR sensors, IP69K protection, and a factory-installed 10-foot cord. Designed for demanding food service and processing environments, it supports ceiling, pendant, and suspended mounting and is also suitable for warehouses, manufacturing facilities, and other commercial or industrial applications requiring elevated sanitation standards.


Brand :
ASD
Model Number :
ASD-WFS-ST-160
Type :
Linear
Lumens :
26,246 lm
Watts :
100W/130W/160W
Voltage :
120-277V
Color Temperature :
Selectable 3500/4000/5000K
CRI :
80+
Optics :
Mounting :
Ceiling, Pendant, Suspended
Environment :
Wet Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
DLC Premium, IP69, Wet
Safety Certification :
NSF, UL Listed
Dimensions (L x W x H) :
16.81" x 12.38" x 3.88"
Weight :
9.1
