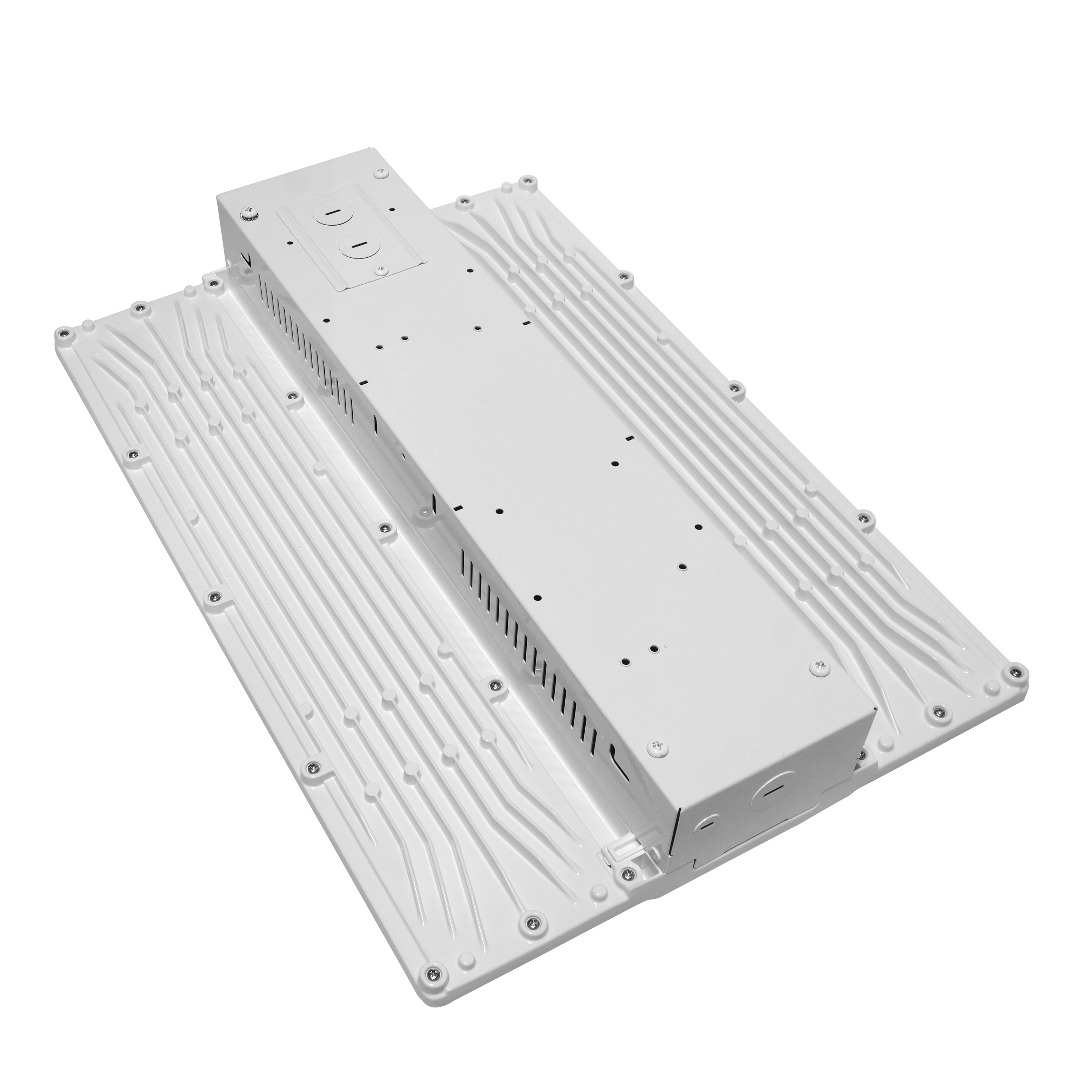

Home High and Low Bays WHB5B PRO Series 130/160/220W LED Linear High Bay w/ Q-Base, 3CCT Selectable, 277-480V, White Finish by ASD
Specification Sheet

WHB5B PRO Series 130/160/220W LED Linear High Bay w/ Q-Base, 3CCT Selectable, 277-480V, White Finish by ASD

$210.00

  • DESIGN - LED LINEAR HIGH BAY WITH Q-BASE is extremely efficient with up to 170lm/W output. It has a built-in motion sensor base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V or 277-480V circuits with a 0-10V dimmable driver.
  • SURGE PROTECTION - 6kV protects the fixture from voltage spikes and current surges.
  • COLOR AND POWER SELECTABLE - You can choose either a 3,500K neutral white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.
  • INSTALLATION - This fixture has three different mounting options: suspended, surface, and pendant.
  • ADVANTAGES - With calculated lifespan up to 167,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

width=  Note: This fixture has been discontinued by the manufacturer. Please contact us for a suitable replacement.


Brand :
ASD
Model Number :
ASD-WHB5BHV-PRO-220
Type :
Linear
Lumens :
Selectable 22,140-37,158 lm
Watts :
Selectable 130/160/220W
Voltage :
277-480V
Color Temperature :
Selectable 3500/4000/5000K
CRI :
80+
Optics :
Wide
Mounting :
Pendant, Suspended
Environment :
Damp Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp, DLC Premium
Safety Certification :
UL Listed
Dimensions (L x W x H) :
17.69" x 12.44" x 2.94"
Weight :
7
