Home High and Low Bays WHB5B PRO Series 160/220/320W LED Linear High Bay w/ Q-Base, 3CCT Selectable, 277-480V, White Finish by ASD
Specification Sheet

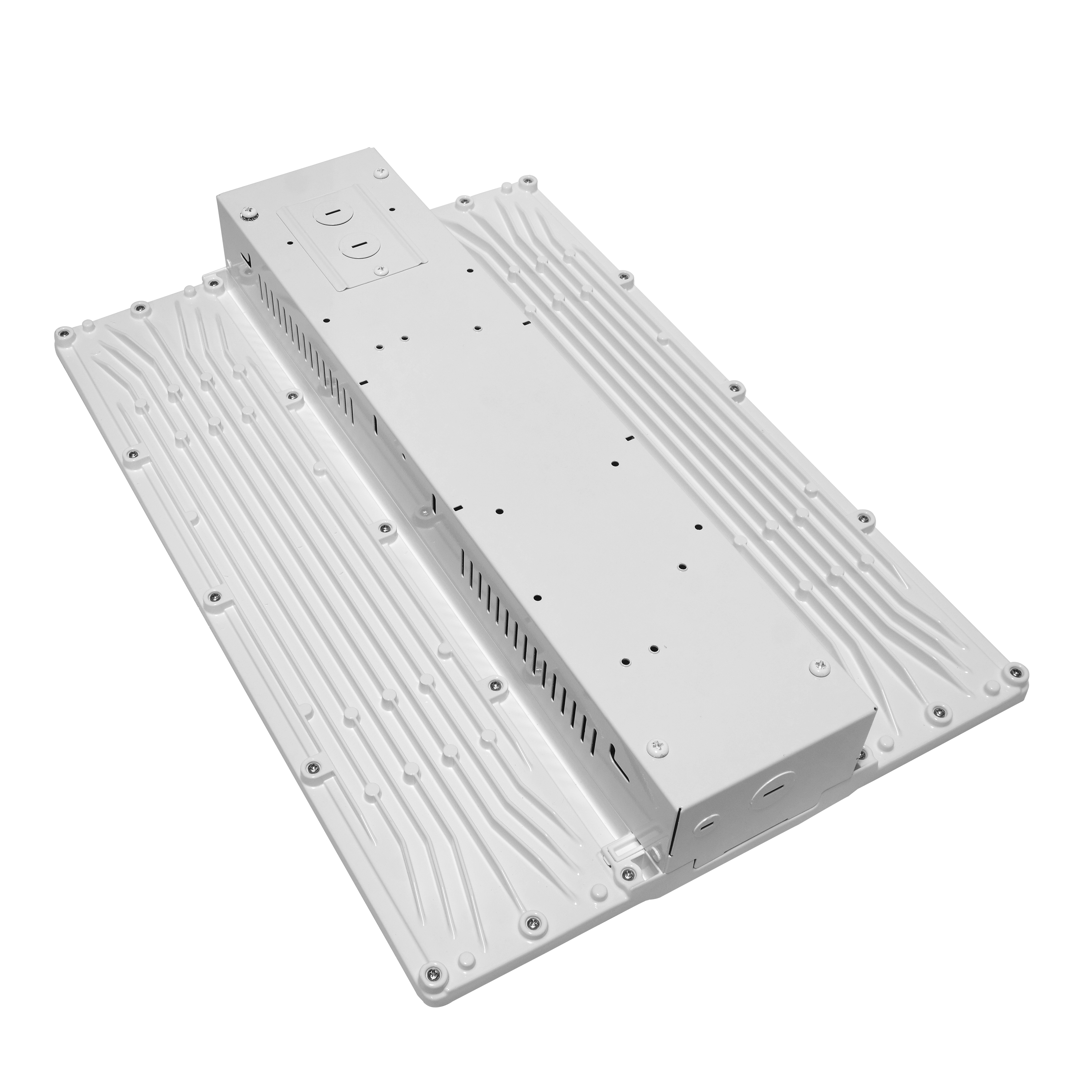

WHB5B PRO Series 160/220/320W LED Linear High Bay w/ Q-Base, 3CCT Selectable, 277-480V, White Finish by ASD

$330.00

  • DESIGN - LED LINEAR HIGH BAY WITH Q-BASE is extremely efficient with up to 170lm/W output. It has a built-in motion sensor base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V or 277-480V circuits with a 0-10V dimmable driver.
  • SURGE PROTECTION - 6kV protects the fixture from voltage spikes and current surges.
  • COLOR AND POWER SELECTABLE - You can choose either a 3,500K neutral white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.
  • INSTALLATION - This fixture has three different mounting options: suspended, surface, and pendant.
  • ADVANTAGES - With calculated lifespan up to 167,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

width=  Note: This fixture is Phasing Out, but a manufacturer replacement is available. Model available while supplies last. Once stock is depleted, orders will be fulfilled with the replacement model.


Brand :
ASD
Model Number :
ASD-WHB5BHV-PRO-320
Type :
Linear
Lumens :
Selectable 28,106-53,090 lm
Watts :
Selectable 160/220/320W
Voltage :
277-480V
Color Temperature :
Selectable 3500/4000/5000K
CRI :
80+
Optics :
Wide
Mounting :
Pendant, Suspended
Environment :
Damp Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp, DLC Premium
Safety Certification :
UL Listed
Dimensions (L x W x H) :
20.5" x 14.44" x 3.25"
Weight :
9.2
